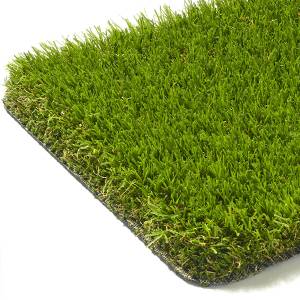

Wonder Yarn 26 - Artificial grass

Verified by manufacturer 13 days ago

Evergreens UK Group

Wonder Yarn 26 mm is available in 2m and 4 m widths and suited for high traffic areas including lawns, play area surfacing and multi-use.

Jump to:
BOS
+44 (0)1572 768208 Website

Application

Suitable for high traffic areas including lawns, play areas and patios.

Description

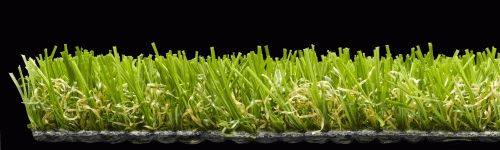

Wonder Yarn uses 'W' shaped yarn to offer the recovery properties after use.


The 'W' shaped yarn is exclusive to Evergreens and has been designed to stand up, so when compared to more traditional flat yarns, Wonder Yarn will show minimum signs of flattening over time.


Features and benefits:

  • Mix of light and dark green plus caramel thatch.
  • Yarn quality: Environmental friendly, free of lead and cadmium.
  • Roll widths available in 2000 or 4000 mm (± 20 mm).
  • Critical fall height (tested to BS EN 1177): 1.2 m (no underlay), 1.4 m (with Lazypad 25 mm), 2.4 m (with Lazypad 50 mm underlay).
  • Tested for UV stability to DIN 53387 and flammability to BS 4790.

General information

Color

Green

Guidance for specification option:

Mix of light and dark green.

Beige

Guidance for specification option:

Caramel thatch.

Finish

Tufted

Material

Polyethylene

Guidance for specification option:

(8000/ 8 dTex) polyethylene monofilament straight.

Length

Bespoke

Width

2000 mm

4000 mm

Height

26 mm

Warranty description

Ten year

Uniclass

Pr_35_57_11_85 Synthetic grass surfacesPrimary

CAWS

Q26/350 Synthetic grass surfacing

Specification data - Synthetic grass surfaces

Pile

-

Type

Tufted.

Material

Mixed polyethylene and polypropylene.

Guidance for specification option:

(8000/ 8 dTex) polyethylene monofilament straight and (5000/ 8 dTex) polypropylene monofilament curled (UV stabilized).

Height

26 mm (± 10%).

Manufacturer guidance

Pile height.

Weight

2258 g/m² (± 100 g/m²).

Manufacturer guidance

Total weight.

Colour

Mix of light and dark green plus caramel thatch.

Width (minimum)

2000mm.

4000 mm.

Manufacturer guidance

Roll width (± 20 mm).

Radius of ignition

-

Standard

To BS 4790.

Roll length

25 m.

Other.

Guidance for specification option:

Larger roll lengths available in request.

Primary backing

100% polypropylene, black.

Guidance for specification option:

UV stabilized, weight 172 g/m².

Secondary backing

Black latex compound with a base of SBR, with drainage holes.

Guidance for specification option:

836 g/m².

Water permeability

60 L/min/1000 mm.

Weight

1250 g/m² (± 10%).

Manufacturer guidance

Face weight.

Gauge

3/8 gauge.

Manufacturer guidance

Tuft gauge.

Colour fastness

Bleu-scale > 7, Grey-scale > 4.

Manufacturer guidance

Xenon test.

Infill

8 kg/m².

Manufacturer guidance

Sand infill.

Stitches per m²

15,750.

Guidance for specification option:

Per 100 mm linear.

UV stabilization

To DIN 53387.

Standard

To BS EN 1177, 1.2 m (no underlay), 1.4 m (with Lazypad 25 mm), 2.4 m (with Lazypad 50 mm underlay).

Manufacturer guidance

Critical fall height.

Accessories

Not required.

Joining tape.

Lazyfix adhesive.

Sustainability data

Contains Red List materials

No

Country of material origin

Netherlands

Country of product manufacture

Netherlands

Recyclability

Can be recycled at GBN in the Netherlands.

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

0 %

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
Revit

Revit 2016

3

IFC

IFC2X3

2

Literature

Wonder Yarn 26mm - Technical Data Sheet

Wonder Yarn 26mm - Technical Data Sheet
