Description

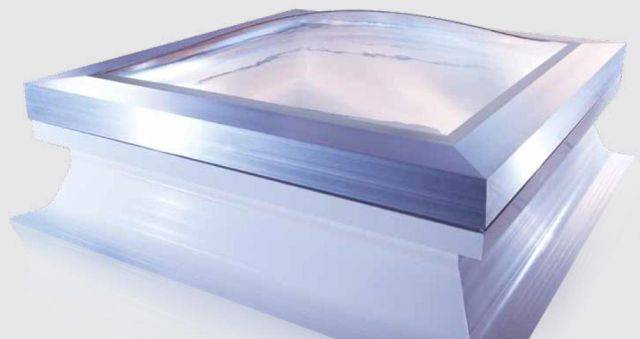

Aluminium rooflight delivering maximum security and high insulation in a sleek, stylish design package. Tamperproof fixings are concealed beneath a modern aluminium security frame, and a secret lock system allows domes to be installed and locked securely into place providing the highest possible security level.

The contemporary low rise dome design is complemented by a stylish aluminium frame which is available in a silver anodized finish or powder coated to any standard RAL colour. Fixings are concealed for maximum security and complete peace of mind. The secret lock system locks the dome into place and can only be removed with the WOLFLITE security key.

General information
Shape

Low rise dome

Low rise pyramid

Size

600 x 600 mm

600 x 900 mm

600 x 1500 mm

750 x 750 mm

750 x 900 mm

900 x 900 mm

900 x 1800 mm

Not available with pyramid.

1050 x 1050 mm

1050 x 1500 mm

1200 x 600 mm

1200 x 900 mm

1200 x 1200 mm

1200 x 1500 mm

1200 x 1800 mm

Not available with pyramid.

1200 x 2400 mm

Not available with pyramid.

1350 x 1350 mm

1500 x 1500 mm

1800 x 1800 mm

Not available with pyramid.

As schedule

Uniclass 2015
Framed rooflights (Pr_30_59_72_31)Primary
Specification data - Framed rooflights
Product Reference

WOLFLITE Premium

Shape

Low rise dome

Low rise pyramid

Size

600 x 600 mm

600 x 900 mm

600 x 1500 mm

750 x 750 mm

750 x 900 mm

900 x 900 mm

900 x 1800 mm

Not available with pyramid.

1050 x 1050 mm

1050 x 1500 mm

1200 x 600 mm

1200 x 900 mm

1200 x 1200 mm

1200 x 1500 mm

1200 x 1800 mm

Not available with pyramid.

1200 x 2400 mm

Not available with pyramid.

1350 x 1350 mm

1500 x 1500 mm

1800 x 1800 mm

Not available with pyramid.

As schedule

Frame colour/ finish

Anodized

Polyester powder coat, RAL

Insert colour requirement.

Glazing -
Type

Single skin and double glazed glass

Single skin and structured polycarbonate

Double skin

Triple skin

Quad skin

Colour

Bronze

Provides solar control.

Clear

Provides high visibility.

Opal

Provides privacy, diffused light and solar control.

Textured

Provides privacy.

Operation

Manual opening with winding pole

Powered opening

Powered opening with RF remote control handset

Powered opening with RF remote control handset and rain sensor

Access hatch

Lockable from the inside, with gas strut assisted opening.

Ventilation

Automatic humidity controlled trickle vent

Manual trickle vents

Direct fix adapter

Not required

DF adapter - fixed

DF adapter - hinged for opening

DF adapter - trickle ventilated

Wolflite extension frame

Not required

Required

For non-standard size roof openings.

Accessories

None

Acoustics pack

Reduces noise levels by over 15 dB.

Insulated kerb support

Available in 90, 100, 120 and 140 mm.

Security grilles

Winding poles

Available in 2 and 3 m lengths.

Standard product features

Aluminium security frame:

Protects and conceals tamper proof fixings for added security.

Glazing:

Contemporary low rise polycarbonate glazing profile with dual sided UV protection. Triple and quad skin glazing meets and exceeds Building Regulations (E&W) Part L.

Glazing cassette:

Maintains spacing between the glazing and reduces the risk of condensation.

Multiwall PVC kerb:

  • High thermal efficiency.
  • Robust and durable.
  • Sloped foot allows roof covering to be finished without need for timber fillets.
  • Conceals powered opening components for an uninterrupted light well.

Membrane clamp:

Secure termination detail for the water-proofing membrane.

Light transmittance:

  • Bronze glazing: 39% (double), 36% (triple), 33% (quad).
  • Clear glazing: 85% (double), 78% (triple), 72% (quad).
  • Opal glazing: 35% (double), 32% (triple), 30% (quad).
  • Textured glazing: 78% (double), 72% (triple), 66% (quad).

Thermal performance:

- Centre pane U-value:

  • Double skin polycarbonate: 2.7 W/m²K.
  • Triple skin polycarbonate: 1.8 W/m²K.
  • Quad skin polycarbonate: 1.4 W/m²K.
  • Structured polycarbonate inner glazing: 1.2 W/m²K.
  • Standard glass inner glazing: 1.21 W/m²K.
  • Argon filled glass inner glazing: 0.9 W/m²K.

- Ud-value:

  • Double skin polycarbonate: 1.54 W/m²K (600 x 600 mm), 2.09 W/m²K (1200 x 2400 mm).
  • Triple skin polycarbonate: 1.25 W/m²K (600 x 600 mm), 1.51 W/m²K (1200 x 2400 mm).
  • Quad skin polycarbonate: 1.12 W/m²K (600 x 600 mm), 1.25 W/m²K (1200 x 2400 mm).
  • Structured polycarbonate inner glazing: 1.06 W/m²K (600 x 600 mm), 1.13 W/m²K (1200 x 2400 mm).
  • Standard glass inner glazing: 1.06 W/m²K (600 x 600 mm), 1.13 W/m²K (1200 x 2400 mm).
  • Argon filled glass inner glazing: 0.96 W/m²K (600 x 600 mm).

Warranty:

WOLFLITE rooflights are guaranteed fit for purpose in normal industrial conditions for a period of 20 years. They will not become perforated or loose significant structural strength, or distort to the extent of losing weather tightness.

Product Options

Operation:

Opening options are dependent on the size requirement, consult manufacturers literature for more information.

Direct fix adapter:

Allows the fixing rooflights directly to new or existing builders' upstands.

Insulated kerb support:

Gives the option to raise the height of rooflight upstand to match the roof insulation thickness.

Third party certifications
  • BBA Certification
