WISA®-Paintply - Ready-to-paint Plywood Panel

Name: WISA®-Paintply - Ready-to-paint Plywood Panel
Brand: UPM Plywood
SKU: u2sf89eLSToiKfnEGsz7cP

Verified by manufacturer 2 months ago

12 mm thick

UPM Plywood

Third party certifications:

EPD
Certificate type
Chain of Custody Certification
Certificate type
DoP
Certificate type

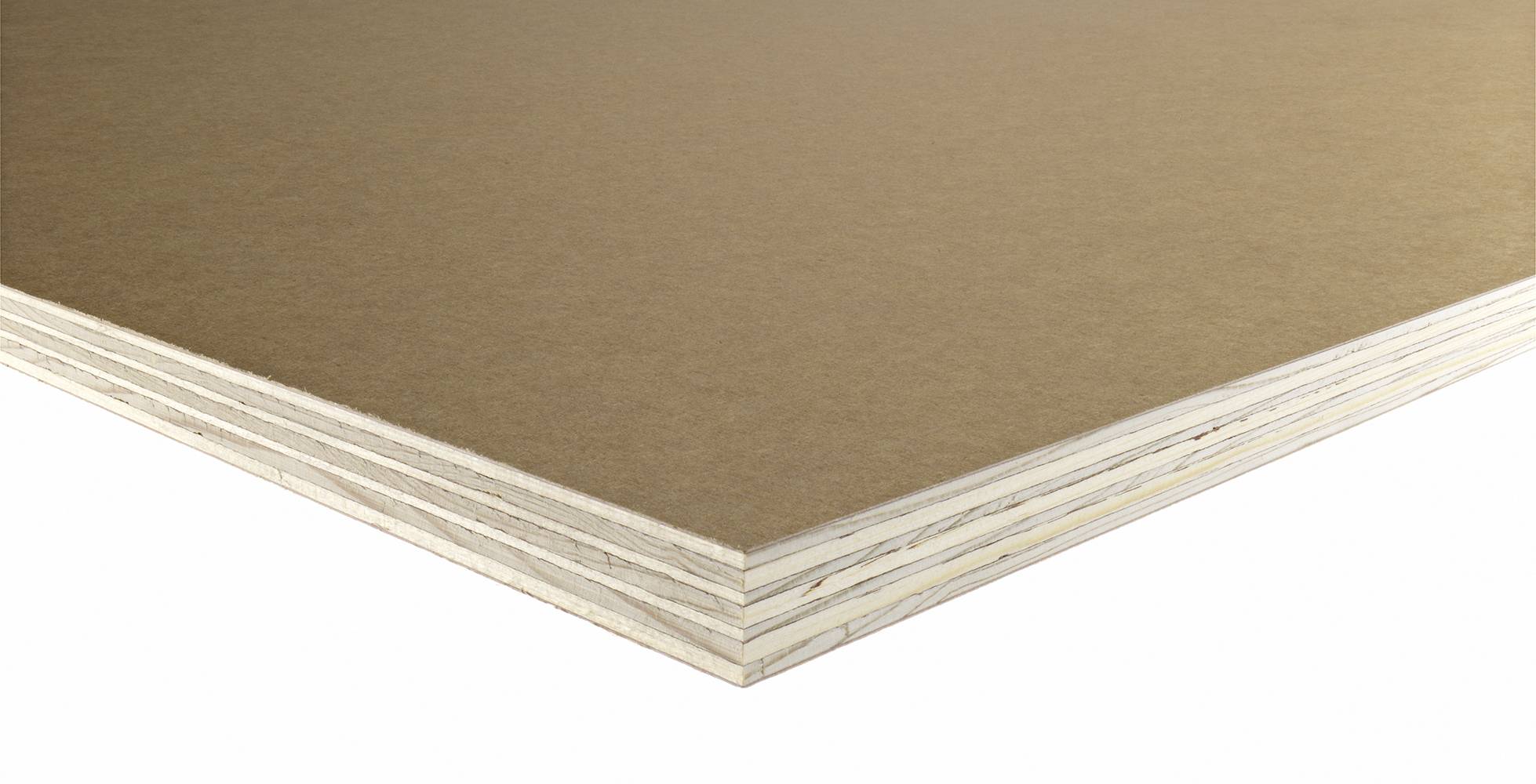

Ready-to-paint smooth plywood made from Nordic spruce.

Jump to:

BOS

+44(0)20 3530 4433 Website

Application

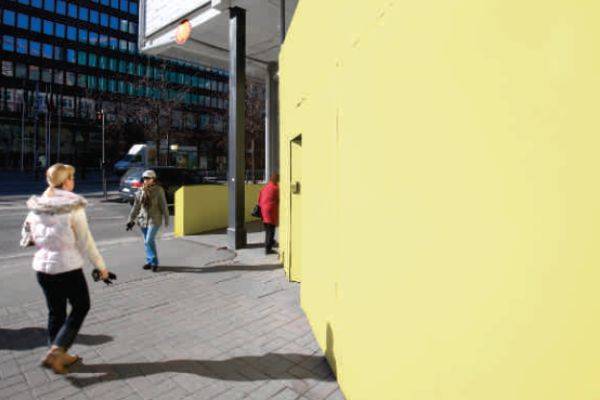

Suitable for various painted applications in both indoor and outdoor use.

Description

Spruce veneer plywood with a phenolic impregnated paper overlay, suitable for painting. Most paints are compatible with the overlay, but confirmation should be obtained from the paint manufacturer.

Features and benefits:

Easy to work with.
Ready-to-paint face.
Dimensionally stable.
Light weight and easy to handle.
Edge sealing using a transparent, moisture resistant, acrylic resin is available on request.
Plies are bonded using a phenolic resin, cross-bonded, weather resistant glue to EN 314-2, Class 3 'Exterior'.
For structural properties see 'Handbook of Finnish plywood' on manufacturer's website for details.
Shapes, profiles and drillings can be machined to specifier's drawings.
Forest Stewardship Council (FSC) and Programme for the Endorsement of Forest Certification (PEFC) certified.

Durability (unpainted):

Suitable for use in humid conditions (see EN 636-2).
Service class 2 to EN 1995-1-1.
Biological hazard class 2 to EN 335-3.

General information

Color	Brown
Finish	Smooth
Material	Plywood
Shape	Rectangle
Length	2440 mm 2500 mm
Width	1220 mm 1250 mm
Height	12 mm 15 mm 18 mm 21 mm 24 mm

Uniclass	Pr_25_71_97_86 Structural veneer plywoodsPrimary
CAWS	G20/15 Plywood G20/310 Structural plywood G20/311 Non-structural plywood H20/150 Sheet cladding (attached to metal support systems) H20/155 Sheet cladding (attached to timber battens) K11/40 Plywood roof decking K11/815 Plywood N10/160 Shelving systems N10/30 Shelving systems P20/240 Plywood P20/40 Plywood

Product range	Coated smooth plywood

Specification data - Structural veneer plywoods

Standards	To EN 314-2, EN 13986.
Material	-
Type	Spruce plywood.
Face grain direction	Parallel to long edges of boards.
Service class	To BS EN 636, (EN 636-3).
Use class	To BS EN 335, use class 1. To BS EN 335, use class 2. To BS EN 335, use class 3.
Bonding quality	To BS EN 314-2, Class 3.
VOC emissions	E1 low formaldehyde emission class.
Sheet size	1220 x 2440 mm.
Nominal thickness	12 mm. Guidance for specification option: Weight: 6 kg/m².
Number of plies	5–9. Guidance for specification option: Dependent on thickness; consult manufacturer for details.
Edges	Square.
Finish as delivered	-
Surface finish	Phenolic impregnated paper overlay suitable for painting.

Reverse finish	Phenolic film moisture barrier. Phenolic impregnated paper overlay.
Edge sealing	Required. Not required.
Colour	Dark Brown. Manufacturer guidance Reverse side finish.

Sustainability data

Contains Red List materials	No
Country of material origin	Finland
Country of product manufacture	Finland
Embodied carbon A1-A3 (production stage) as defined in BS EN 15804	-702 kg CO₂ eq/kg
Recyclability	Re-use or Biomass
Recycled content As defined in clause 7.8 of BS EN ISO 14021	0 %
