Wireless Fire Detection - Agile

The Morley Addressable Wireless Fire Detection System is a Hybrid (wired to fire detection loop via Gateway) next-generation platform of wireless fire devices designed for applications where wired devices are impractical due to economic or aesthetic constraints. Built on robust mesh network technology, the system ensures reliable communication by providing up to two communication paths for each device, significantly improving resilience compared to traditional star network architectures. Connects to the MAX and DXC control panels

As part of the Series 200 product range, the wireless system maintains the same high standards of device design, detection performance, false alarm immunity, and system functionality. Wireless devices can be seamlessly integrated into existing Morley-IAS panels supporting Series 200 protocols, allowing for straightforward system expansion and hybrid installations.

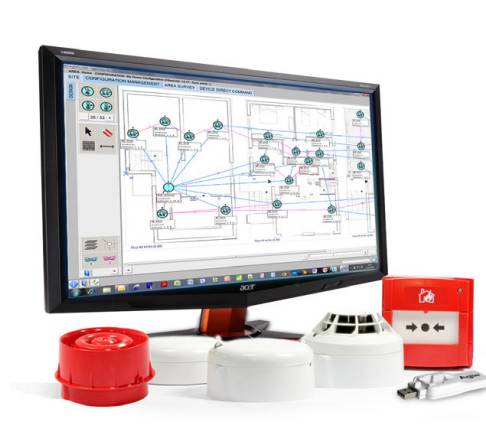

System configuration, commissioning, and diagnostics are managed via the Agile IQ™ software tool. Using a wireless USB dongle, the PC-based application communicates directly with wireless devices without the need for hardwired connections. Agile IQ™ supports Microsoft Windows operating systems from XP through Windows 10, providing a flexible platform for system management.

Features and benefits:

• Wireless mesh network bidirectional communication technology.
• Two communication paths to each wireless device.
• 7RF channels at 865Mhz-867Mhz.
• Two integrated antennas on each wireless fire device.
• Up to 400 m free air communication range .
• Up to five years average battery service life.
• S200 Morley-IAS CLIP and Advanced Protocol loop communication.
• Addresses set using S200 rotary switches.
• Wired fire devices look and feel.
• Patented battery service life prediction feature.
• Loop powered Gateway.
• Up to 8 Gateways per Morley MAX and MAX Plus Panel.
• Up to 31 wireless detector/devices plus 17 wireless response indicators per Gateway.
• Agile IQTM Easy wireless system design, configuration and diagnostics.
• EN54-25 Certified.
