Winterbourne Wall Attached Shelter
Verified by manufacturer 4 months ago

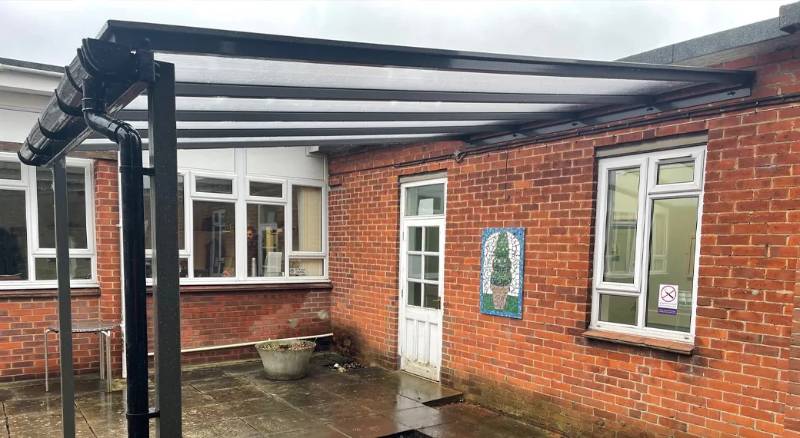

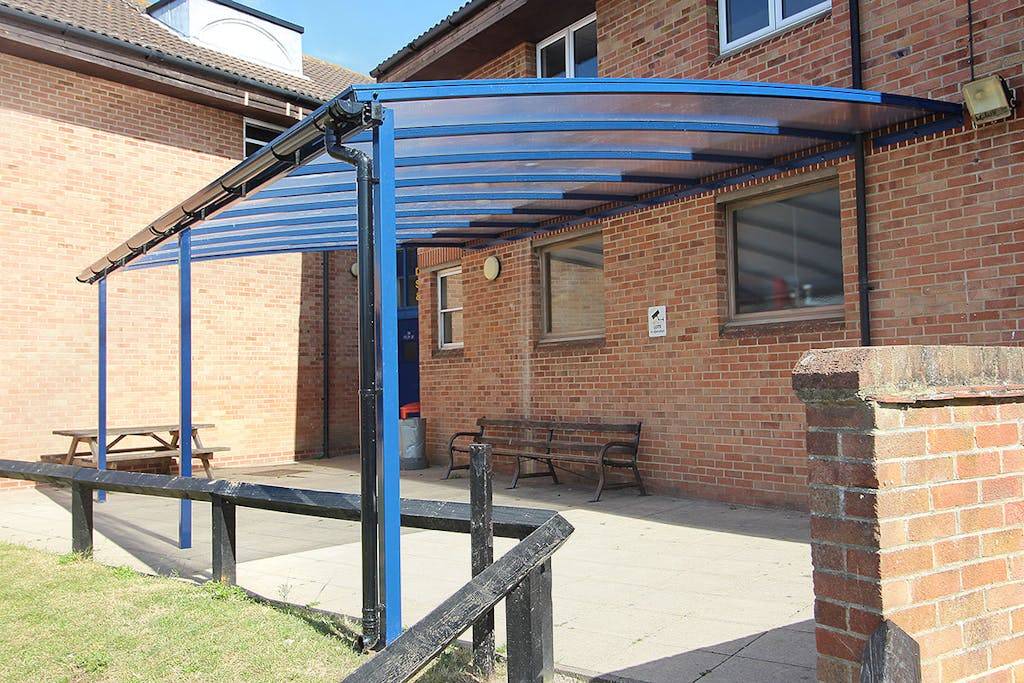

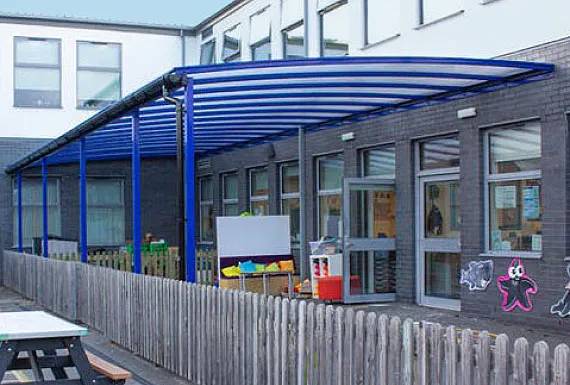

Winterbourne Wall-Attached Shelter
Winterbourne Wall-Attached Shelter
Constructionline
Certificate type
ISO 9001 Quality Management
Certificate type
Range of wall-attached shelters providing extended outdoor areas or creating a sheltered walkway.
Application

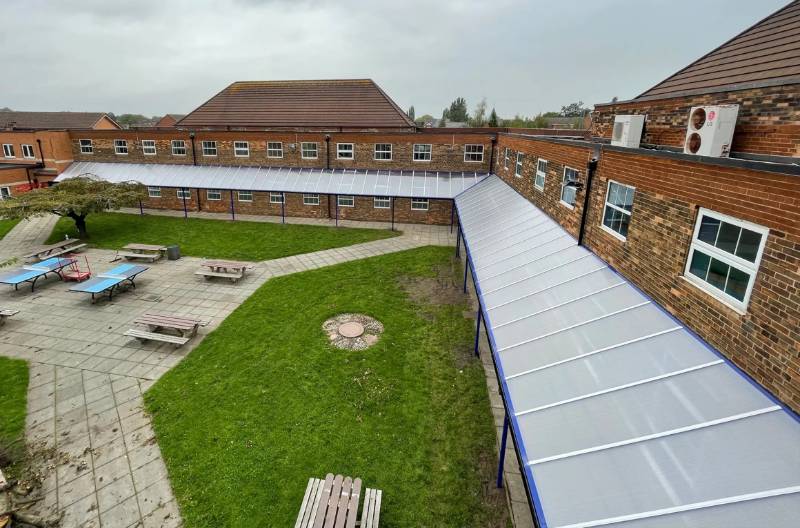

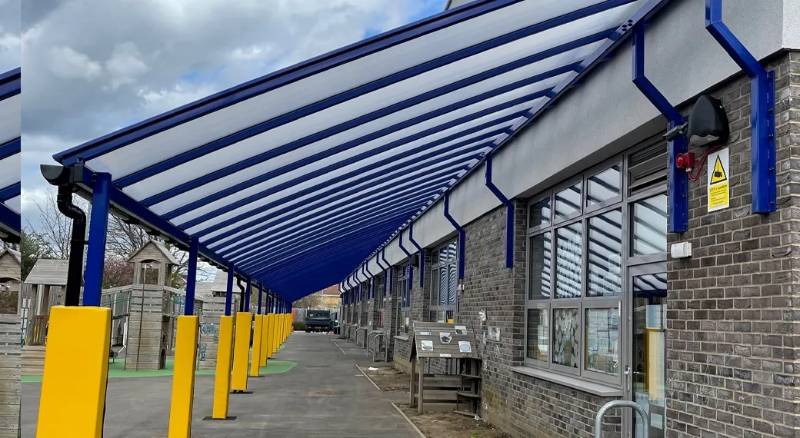

Provision of extended outdoor areas or creating a sheltered walkway. Suitable for use outside a main or side entrance of a building to create an outside smoking or eating area.
Description
Range of wall-attached shelters providing extended outdoor areas or creating a sheltered walkway.
Features and benefits:
- Protect entrance from wet weather, dust and debris.
- Ideal for use outside a main or side entrance of a building to create an outside smoking or eating area.
- Triplex anti-corrosion surface treatment guarantees your coloured shelter for 25 years.
- Alternative anti-corrosion surface treatment, hot-dipped galvanising and epoxy powder coating, also available to respective ISO and BS EN standards.
- Clear roof and open sides give the shelter a light and airy feel.
- Steel construction is long lasting and hard wearing.
- Branksome shelter is supplied with aesthetic round tube legs as standard.
- Freestanding versions also available, specified separately.
General information
Color | Black Guidance for specification option: Frame only. Blue Guidance for specification option: Frame only. Green Guidance for specification option: Frame only. Grey Guidance for specification option: Frame only. Red Guidance for specification option: Frame only. |
Finish | Powder-coated |
Material | Steel Polycarbonate |
Shape | Rectangle Square |
Length | 3000 mm 4000 mm 5000 mm Bespoke |
Width | 3000 mm 4000 mm Bespoke |
Height | 2600 mm Bespoke |
Warranty description | 25 year |
Uniclass | |
CAWS | B91/335 Covered walkway B91/420 Waiting shelter B91/385 Shelter B91/330 Canopy |
Specification data - Open-sided shelters
Shelter description | Wall-attached shelter. |
Dimensions | |
Plan size | 3000 x 3000 mm.3000 x 4000 mm.4000 x 3000 mm.4000 x 4000 mm.5000 x 3000 mm.5000 x 4000 mm. |
Height | 2600 mm. |
Frame | |
Material | Structural steel.Guidance for specification option: 75 mm uprights and 40 or 50 mm square hollow tubes; consult manufacturer for details. |
Finish | Triplex multi-layer powder coating to ISO 12944.Other.Guidance for specification option: Alternative anti-corrosion surface treatment, hot-dip galvanizing and epoxy powder-coating available. Consult manufacturer for details and insert requirements. |
Colour | Black RAL 9005.Blue RAL 5002.Green RAL 6026.Anthracite Grey RAL 7016.Umbra Grey RAL 7022.Red RAL 3020.Silver RAL 7035.White RAL 9003.Yellow RAL 1021.Other.Guidance for specification option: Bespoke; insert requirements. Not applicable.Guidance for specification option: Galvanized finish only. |
Roof covering | UV-stabilized 16 mm triple wall polycarbonate. |
Rainwater drainage | Guttering and downpipes. |

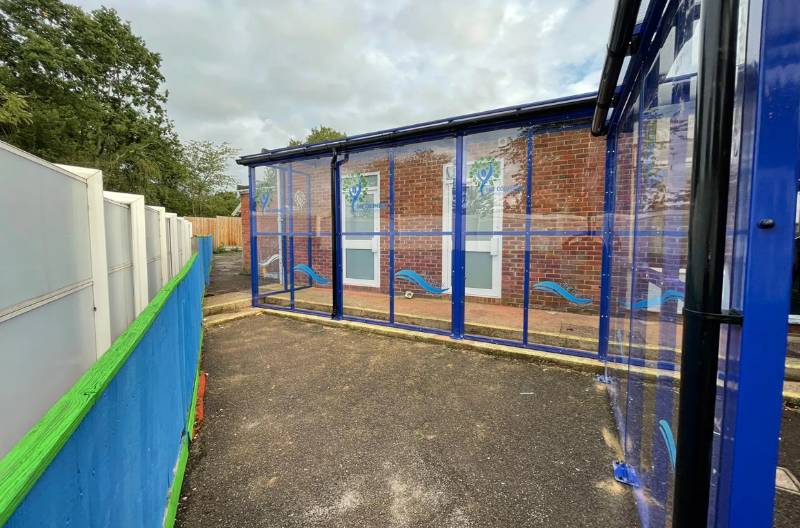

Accessories | None.Side panels.Front panels.Side and front panels. |
Fixing | Manufacturer's standard. Guidance for specification option: Consult manufacturer for details. |
Sustainability data
Country of product manufacture | United Kingdom |
Material | Steel Polycarbonate |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
Third party certifications
Constructionline
ConstructionLine
ISO 9001 Quality Management
ISO 9001 Quality Management Certificate
Literature
NBB Outdoors Catalogue
NBB Outdoors Schools Catalogue
Case studies
The Atam Academy, Romford
Salisbury District Hospital, Hedgerows
Childwall Sports & Science Academy, Liverpool
The Coombes CE Primary School, Reading
