Winner S

Verified by manufacturer 3 days ago

Winner S - Block S120 - H1140

Valsir S.P.A Variant:
Product certifications:
  • EPD

    EPD

    Certificate type

Compact, WRAS-approved flush cistern (800 mm height) with <20 dB noise, seawater compatibility, air gap valve, self-cleaning and 250+ control plates. Spares available for 50+ years.

Jump to:
Request BIM
+39 0365 877 397 Website

Application

  • Residential and multi-residential buildings
  • Hotels and hospitality
  • Commercial and public toilets
  • Healthcare facilities
  • Marine and coastal constructions

Description

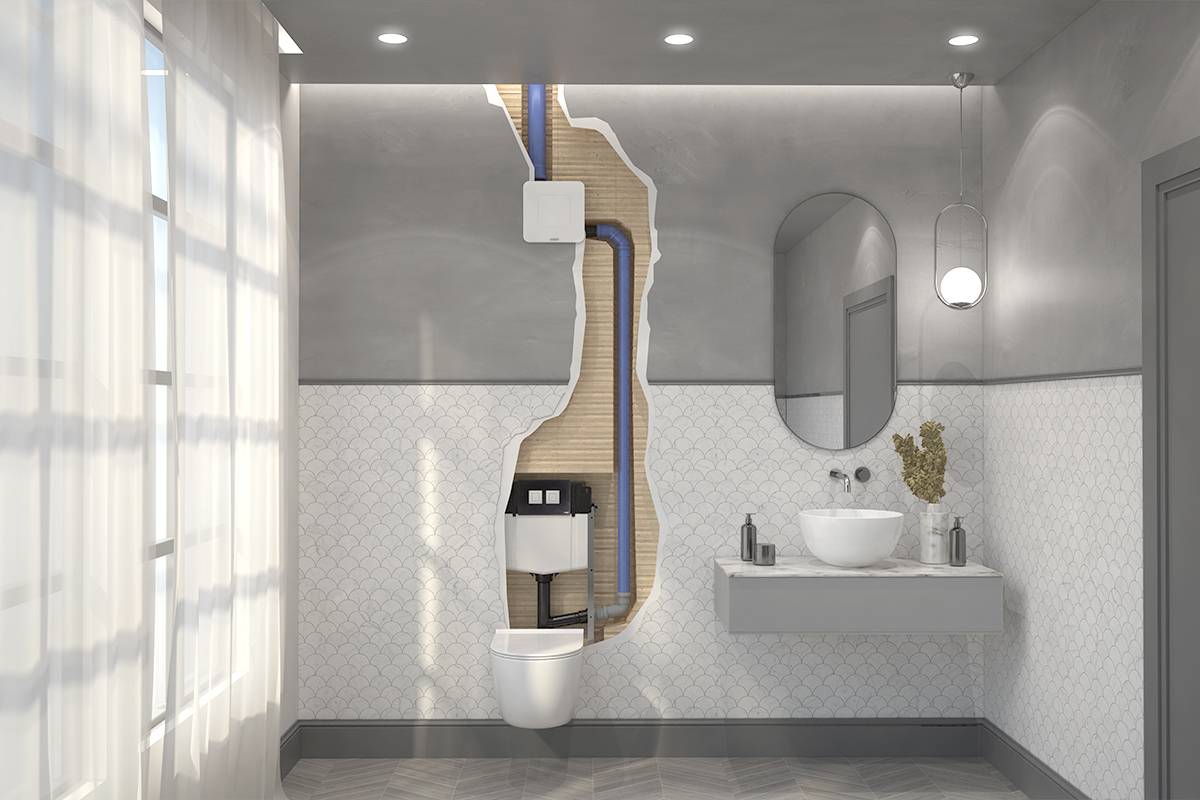

Winner S is the most compact flush cistern in the Valsir range, with a total height of just 800 mm from finished floor level. It combines mechanical performance with acoustic engineering, offering quiet operation.

Constructed using a mineral-charged injection moulded unibody shell, the Winner S features a built-in AG UK1 air gap valve, ensuring hygienic performance in line with backflow prevention regulations. The self-cleaning system reduces lime scale accumulation, increasing durability and reducing maintenance frequency.

Winner S is compatible with seawater, fully WRAS-approved, and supported by a long-term spare parts program (50+ years). Over 250 compatible flush plates are available to meet a wide range of aesthetic and functional preferences. Flexible installation and multiple actuation modes make it suitable for modern bathrooms and confined service spaces.

Features and benefits:

  • Compact design: Height from finished floor from only 800 mm to 1 m.
  • Quiet operation: Noise level < 20 dB during filling, due to integrated soundproofing technology.
  • Hygienic: Equipped with AG UK1 air gap valve compliant with EN 13077 for category 5 backflow protection.
  • Durable construction: Mineral-charged plastic unibody shell provides strength and longevity.
  • Low maintenance: Self-cleaning system prevents lime scale accumulation.
  • Seawater-compatible: Resistant to saltwater corrosion, suitable for marine/ coastal applications.
  • WRAS approved: Certified for use with potable water in the UK.
  • Wide compatibility: Over 250 control plates available; adaptable to varied design needs.
  • Spares availability: Guaranteed spare parts for 50+ years.
  • Flexible configuration: Multiple installation heights and flush actuation options (mechanical, pneumatic, electronic).

General information

Color

Clear

Beige

Black

Blue

Bronze

Show more

Finish

Acrylic

Material

Polypropylene

Shape

Rectangle

Length

Bespoke

Width

Bespoke

Height

Bespoke

Warranty description

Ten year

Uniclass

Pr_40_20_93_89 WC cisternsPrimary

CAWS

N13/66 Pre-plumbed frame system

N13/500 Pre-plumbed frame system

N13/10 WC pans and flushing arrangements

N13/300 WCs and cisterns

SKU Code

VS085xxxx

Specification data - WC cisterns

Classification data

Standard

To BS EN 14055.

Approvals

Water Regulations Advisory Scheme (WRAS)-approved.

Form

Concealed.

Operation

Push-plate.

Guidance for specification option:

Suitable for use with mechanic, pneumatic or electronic actuators.

Materials

-

Body

Plastics.

Finish and colour

White.

Capacity

6/3 L.

Water supply, overflow and outlet holes

-

Water supply

Side inlet.

Outlet

Front outlet.

Integral accessories

-

Manufacturer guidance

A range of pushplates are available. Consult manufacturer and insert requirements.

Height

1140 mm.

Accessories

None.
Ariapur.

Sustainability data

Contains Red List materials

No

Country of product manufacture

Italy

Manufacturing plant location

Material

Polypropylene
Carbon dioxide equivalent

Carbon dioxide equivalent, as defined in BS EN 15804

Certified

Stage
Normalised unit (kg CO₂ eq/kg)
Declared unit (kg CO₂ eq/unit)
Stage:A1–A3 ('Production stage')
Normalised unit : 2.76 (kg CO₂ eq/kg)
Declared unit : 37.73

Recyclability

After the demolition and deconstruction phase, can be incinerated, sent to landfill or recycled

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

57 %

Expected Life

50 year

Product certifications

Product certifications

EPD

Winner S EPD

Literature

Winner S Brochure

Winner S Brochure

Winner S Technical Data Sheet

Winner S Technical Data Sheet
