Windpost Systems
Description

Keystone windposts are manufactured from grade 1.4307 austenitic Stainless Steel EN 1.430

Components:

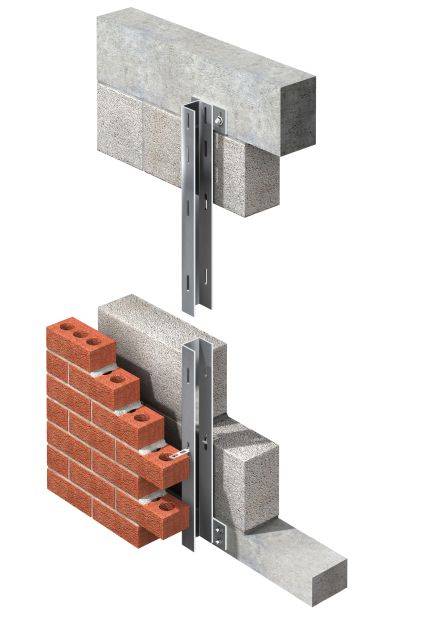

The Keystone Windpost System comprises of a range of three types of windposts supplied with specially designed top and base connections appropriate for each construction configuration. Wall ties are supplied for each type of wallpost.

General information

Uniclass 2015

Pr_20_85_16_96 Wind postsPrimary

CAWS

F30/255 Wind posts

Specification data - Wind posts

Product Reference

Windpost Systems

Type

Insert requirements from 'Options' below.

Height

2500 mm

3000 mm

3500 mm

4000 mm

4500 mm

5000 mm

5500 mm

6000 mm

As drawing

As schedule

Product Options

Type:

- U windposts:

Fits within the cacity and normally spans between floor structures. Also available in shorter lenghts for use in Spandrels or below windows.

  • U1: 60 x 60 x 4 mm.
  • U2: 60 x 60 x 5 mm.
  • U3: 60 x 60 x 6 mm.
  • U4: 75 x 60 x 4 mm.
  • U5: 75 x 60 x 6 mm.
  • U6: 75 x 60 x 6 mm.
  • U7: 115 x 60 x 4 mm.
  • U8: 115 x 60 x 5 mm.
  • U9: 115 x 60 x 6 mm.

- DU windposts:

Fits within the cacity and normally spans between floor structures. The inner leaf of the cavity wall is totally undisturbed . Suitable for heavier loads than the U windpost.

  • DU3: 60 x 60 x 6 mm (2).
  • DU6: 70 x 60 x 6 mm (2).
  • DU9: 115 x 60 x 6 mm (2).

- LP windposts:

Designed to be built into the inner skin of the cavity wall and normally spans between floor structures. Suitable for a range of loading conditions. Available in shorter lengths for use in parapets or below windows

  • LP1: 125 x 70 x 4 mm.
  • LP2: 125 x 70 x 5 mm.
  • LP3: 125 x 70 x 6 mm.
  • LP4: 150 x 70 x 4 mm.
  • LP5: 150 x 70 x 5 mm.
  • LP6: 150 x 70 x 6 mm.
  • LP7: 170 x 70 x 4 mm.
  • LP8: 170 x 70 x 5 mm.
  • LP9: 170 x 70 x 6 mm.
  • LP10: 200 x 70 x 4 mm.
  • LP11: 200 x 70 x 5 mm.
  • LP12: 200 x 70 x 6 mm.

Base and top connections:

Contact the technical department for a full range of Base and Top Connections

Technical characteristics:

For Uniformly Distributed Load (UDL) figures, consult manufacturers literature for details.
