Wincro WC27 (25/14) Brick-Ties – To SFS
Verified by manufacturer 5 days ago
WTS3C2775
WTS3C2775
Stainless steel slot tie for use with partial fill insulation and steel studs.
Application
Designed for use with SFS steel channel studwork.
When fixing with flexible insulations, Wincro WBCOMP mineral wool compression sleeves should be used
Description

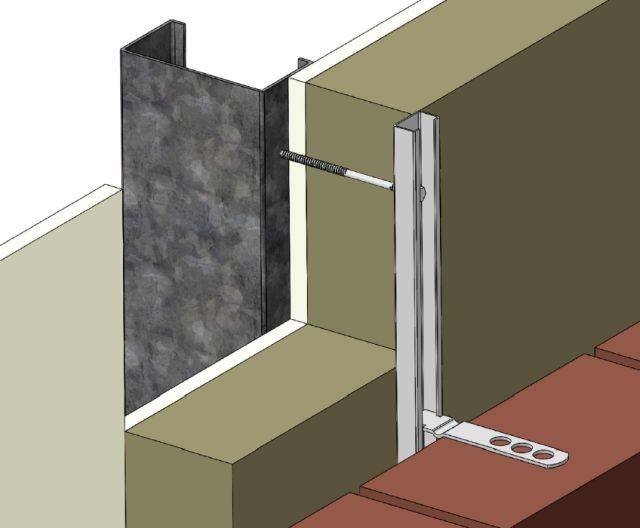

Complete system comprises of Wincro WC27 25/14 channel (specified separately) with pre-punched holes at 112.5 mm centres for WBSDD self-drilling self-tapping screws and WTS2C27 or WTS3C27 safe ties designed to tie brickwork back to steel studwork inner leafs (SFS).
Type:
- WTS2C27: Safe ended channel tie with drip.
- WTS3C27: Safe ended channel tie without drip.
Features and benefits:
- CE marked to BS EN 845-1.
- Can accommodate various thickness insulation batts.
- WTS2C27/ WTS3C27 wall ties inserted at 225–450 mm centres as the work proceeds.
- Wall ties are inserted at any point along the channel's length and are built into the bed joint of the outer leaf as work proceeds.
- Available from 75 mm to suit the vented cavity.
- Suitable for use with flexible or using WBCOMP with mineral wool insulation.
General information
Color | Silver |
Finish | Stainless steel |
Material | Stainless steel Guidance for specification option: Grade 1.4301 (304). |
Shape | Other |
Length | 2700 mm |
Warranty description | 25 year |
Uniclass | |
CAWS | F30/245 Channel/ slot ties F30/248 Channel/ slot ties used with partial fill insulation F30/25 Cavity wall ties used with partial fill insulation F30/26 Wall ties |
SKU Code | WTS2C27, WTS3C27 |
Specification data - Wall starters and connectors
Material | Stainless steel, grade 1.4301 (304). |
Tie type | Screw-in ties. |
Sizes | |
Channel length | 2.7 m. |
Accessories | WBTLWD. Guidance for specification option: Wincro driver. WBSDSS. Guidance for specification option: Stainless steel self-drilling/self-tapping screws. WBSDDZP. Guidance for specification option: Zinc-plated self-drilling/ self-tapping screws. |
Type | WTS3C27. Guidance for specification option: Safe ended channel tie without drip. |
Cavity size | 15—40 mm. |
Length | 75 mm. |
Sustainability data
Contains Red List materials | No |
Country of product manufacture | United Kingdom |
Manufacturing plant location | |
Material | Stainless steel Guidance for specification option: Grade 1.4301 (304). |
Recyclability | Stainless Steel is fully Recyclable |
Literature
Literature type
Wall Ties & Restraints
WC27 Bricktie Restraint System (EX-13-4)
