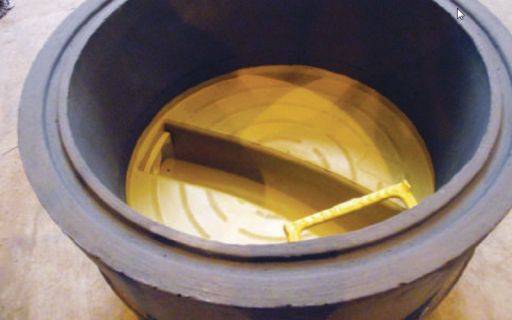

Wide Wall Manhole Chamber
Description

Tongue and groove precast wide wall concrete manhole chamber.

A 130 mm thick wide wall chamber, in combination with the Easi-Base unit, provides a sealed watertight manhole system. This robust design means that the requirement for a concrete surround is eliminated.

FP McCann’s precast concrete wide wall manholes have been designed with a tongue and groove dimension to accommodate the use of bituminous sealant.

Included in object:

- DN1500 Wide wall manhole chamber
- DN1800 Wide wall manhole chamber

Advantages:

  • Quick and easy installation
  • Watertight structure
  • Safe anchor lifting system (spherical head lifting system)
  • Greater cost savings associated with using precast concrete over a traditional system
  • No concrete back fill required, in accordance with ‘Sewers for Adoption’ 7th edition
  • More environmentally friendly than a traditional system, almost 40% less carbon omitted during the concrete casting process
  • Significant reduction in health and safety risks associated with using precast concrete

General information

Color

Grey

Features

Tongue and groove joints. Three lifting points

Finish

Smooth Concrete

Size

Ø1200mm / 250mm,

Uniclass 2015

Pr_65_52_01_17 Concrete inspection chamber cover slabsPrimary
Specification data - Concrete inspection chamber cover slabs
Digital objects
Platform Compatible Version Certified to
IFC

IFC2X3

1

1.3
Revit

Revit 2016

4

2.0
Download now from NBS National BIM Library
