Whiteside Wall Mounted Canopy

Whiteside Wall Mounted Canopy

Able Canopies Ltd

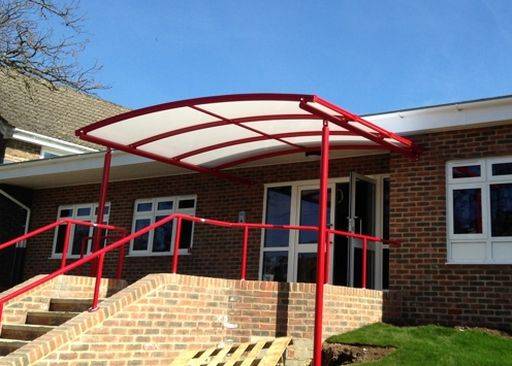

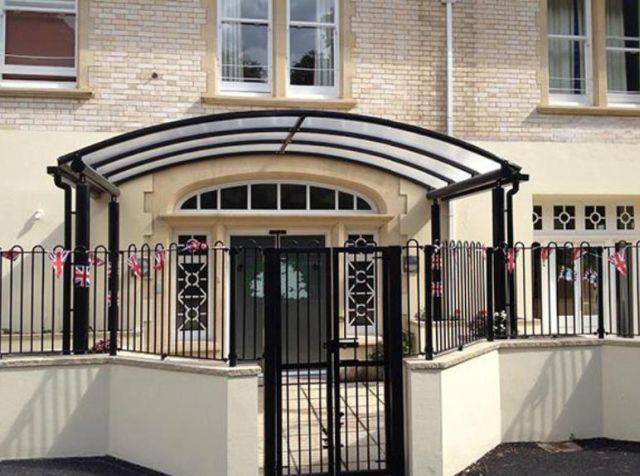

The Whiteside Wall Mounted Canopy features a curved roof which is covered with polycarbonate roof panels and supported by a steel frame. It has an unlimited length and a maximum width of 4 m.

Jump to:
+44 (0)800 389 9072 www.ablecanopies.co.uk
Description

A cost-effective wall mounted entrance shelter which can provide up to 4 x 4 m of cover from the elements. This canopy is particularly popular within schools and colleges - creating an entrance which stands out yet has a clean and simple design which suits most building designs.

The Whiteside is also suitable for hospitals and care homes, lifting the face of the building and providing a spacious welcome area for visitors. Life expectancy of 25 years.

General information

WarrantyDescription

10 years

Uniclass 2015

Pr_20_65_78_58 Open sided sheltersPrimary

CAWS

B91/330 Canopy

Specification data - Open sided shelters

Product Reference

Whiteside Wall Mounted Canopy

Size

-

Projection

Insert requirement, available up to 4 m.

Length

Insert requirement, available up to 4 m.

Glazing

-

Material

Solid polycarbonate, 5 mm thick

Structured polycarbonate, 16 mm thick

Colour

Clear

64% light transmission.

Opal

33% light transmission.

Framework

-

Finish

Galvanized

Galvanized and powder coated

Powder coated

Colour

Not applicable

For galvanized only.

RAL 3000 Flame Red

RAL 5005 Signal Blue

RAL 5010 Gentian Blue

RAL 5012 Light Blue

RAL 6001 Emerald Green

RAL 6005 Moss Green

RAL 7001 Silver Grey

RAL 7016 Anthracite Grey

RAL 8007 Fawn Brown

RAL 9003 Signal White

Standard.

RAL 9005 Jet Black

RAL 9006 White Aluminium

Special order

Insert requirement.

Accessories

None

Guttering

Post pads

Standard product features

Framework:

  • Main frame: Constructed from 89 x 4 mm steel tube section.
  • Roof bars: Constructed from 50 x 50 x 2 mm steel box section.

Digital objects
Platform Compatible Version Certified to
IFC
-

4

2.1
Revit
-

4

2.1
Download now from NBS National BIM Library
