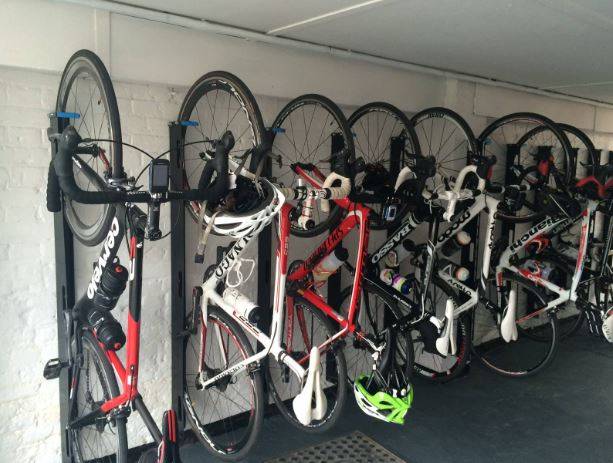

A cost effective vertical bike rack with three locking points.

Jump to:
BOS
+44 (0)1625 322 888 Website

Application

Cycle storage.

Description

The Westerham is designed to be used with the cyclist's own D-lock or cable lock. Depending on lock used, it secures the frame and both wheels to the rack.


Features and benefits:

  • Three locking points.

General information

Color

Black

Manufacturer guidance

Other colours available on request.

Finish

Powder-coated

Material

Carbon steel

Shape

Rectangle

Length

112 mm

Width

112 mm

Height

1500 mm

Uniclass

Pr_40_30_21_12 Carbon steel cycle standsPrimary

CAWS

Q50/210 Cycle stands

Specification data - Carbon steel cycle stands

Stand type

Vertical.

Number of stands

One.

Base

Vertical channel fixed via three holes in the back face, using M8 75 mm long shield anchor bolts/ self-tapping bolts for concrete or brick walls.

Finish as delivered

Galvanized.

Galvanized and polyester powder-coated.

Zinc oxide primed and polyester powder coated - For indoor use.

Colours

Not applicable.

Guidance for specification option:

For Galvanized only.

Black.

Guidance for specification option:

Standard for powder-coated.

Special order.

Guidance for specification option:

Insert requirement.

Accessories

None.

Wall bolts.

Sustainability data

Country of product manufacture

United Kingdom

Material

Carbon steel

Recyclability

100%

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

100 %

Third party certifications

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
Revit
-

1

IFC
-

1

Third party certifications

ISO 14001 Environmental Management Systems

ISO 14001 Environmental Management Systems

BSFG ISO 14001

ISO 9001 Quality Management

ISO 9001 Quality Management

BSFG ISO 9001 - 14001

CHAS

CHAS

CHAS

Constructionline Gold

Constructionline Gold

Constructionline Gold

 Acclaim Accreditation

Acclaim Accreditation

Health & Safety Accreditation
