Application

  • For decoupling ceramic and natural stone floor coverings from the substructure.
  • For deadening impact sound when laying ceramic and natural stone floor coverings with a relatively low design height.
  • On all load-bearing surfaces such as concrete and wooden floorboards (not stairs).
  • Underlay for floating floor coverings such as ready-to-lay parquet or laminate.
  • For residential type use. Not approved for wheeled loads with high concentrated loads.
  • Not for use under electric thin-bed heating elements.

Description

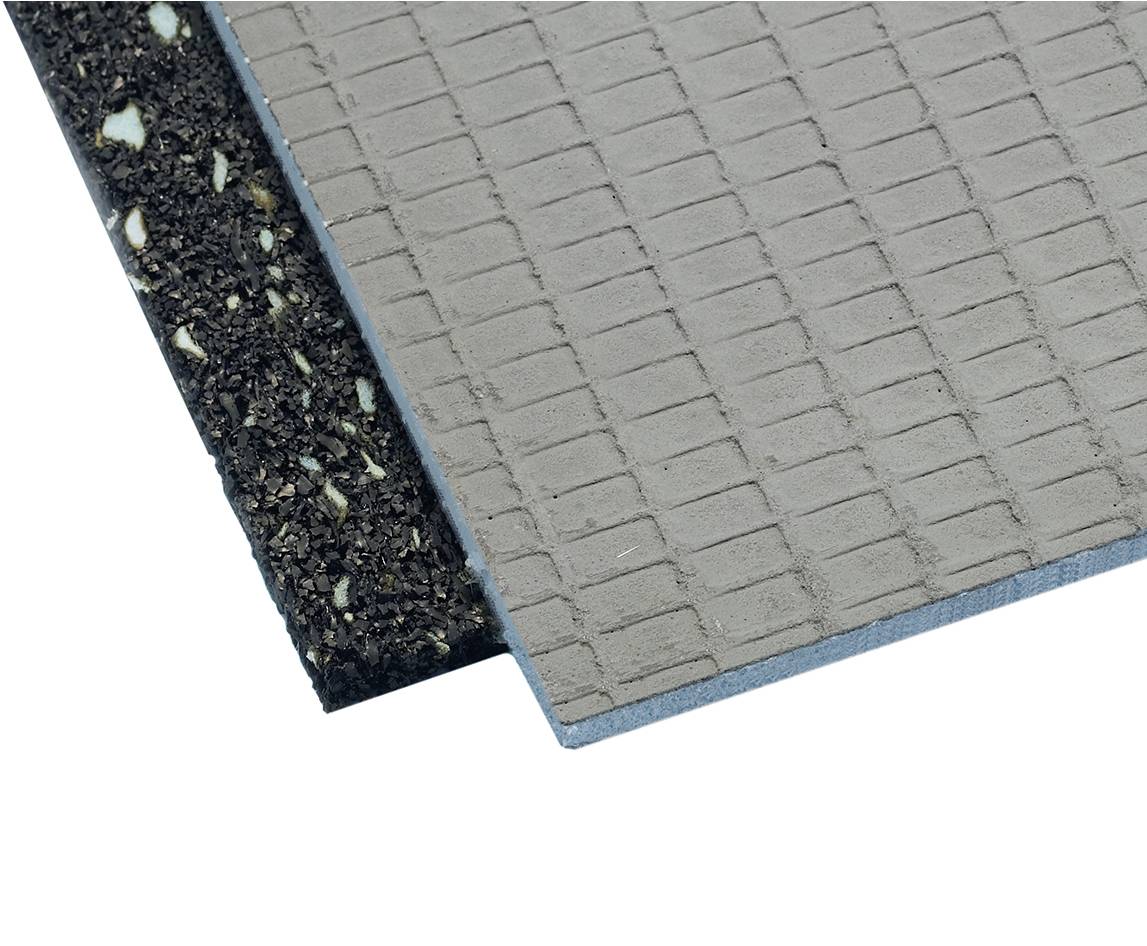

Impact sound deadening board consisting of a wedi building board bonded in the factory to a rubber mat, creating an overlap. Used for decoupling under ceramic floor coverings, laminate or ready-to-lay parquet.

Features:

  • Low structural height.
  • Low mass per unit area.
  • Simple to lay; economic way of reducing impact sound under ceramic and natural stone floor coverings.
  • Quick installation.
  • Stress-reducing underlay, decouples the covering from the surface.
  • Impact sound improved by 16 dB.

Applications:

  • For decoupling ceramic and natural stone floor coverings from the substructure.
  • For deadening impact sound when laying ceramic and natural stone floor coverings with a relatively low design height.
  • On all load-bearing surfaces such as concrete and wooden floorboards (not stairs).
  • Underlay for floating floor coverings such as ready-to-lay parquet or laminate.
  • For residential type use. Not approved for wheeled loads with high concentrated loads.
  • Not for use under electric thin-bed heating elements.

General information
Features

Low structural height

Low mass per unit area

Simple to lay; economic way of reducing impact sound under ceramic and natural stone floor coverings

Quick installation

Stress-reducing underlay, decouples the covering from the surface

Impact sound improved by 16 dB

Material

Bottom: Polyurethane-bonded recycled rubber material with styrofoam flakes

Top: 6 mm thick wedi building board bonded to a 5 mm thick rubber mat, creating an overlap

Size

1200 x 600 mm

Uniclass 2015
Acoustic duct linings (Pr_65_67_78_02)Primary
Specification data - Acoustic duct linings
Product Reference

wedi Nonstep Plus

Accessories

None

wedi 610 Adhesive Sealant

wedi Tools Joint Reinforcement Tape

wedi Tools Joint Reinforcement Tape Self-Adhesive

wedi Tools Sealing Tape

Standard product features

Material:

  • Bottom: Polyurethane-bonded recycled rubber material with styrofoam flakes.
  • Top: 6 mm thick wedi building board bonded to a 5 mm thick rubber mat, creating an overlap.

Size:

1200 x 600 mm.

Thickness:

12 mm.

Temperature limit:

-40°C to +75°C.

Product Options

Accessories:

- wedi 610 Adhesive Sealant:

Elastic water-resistant adhesive which enables equalizing adhesion and sealing of wedi Nonstep Plus boards to create a waterproof seal between boards.

- wedi Tools Joint Reinforcement Tape:

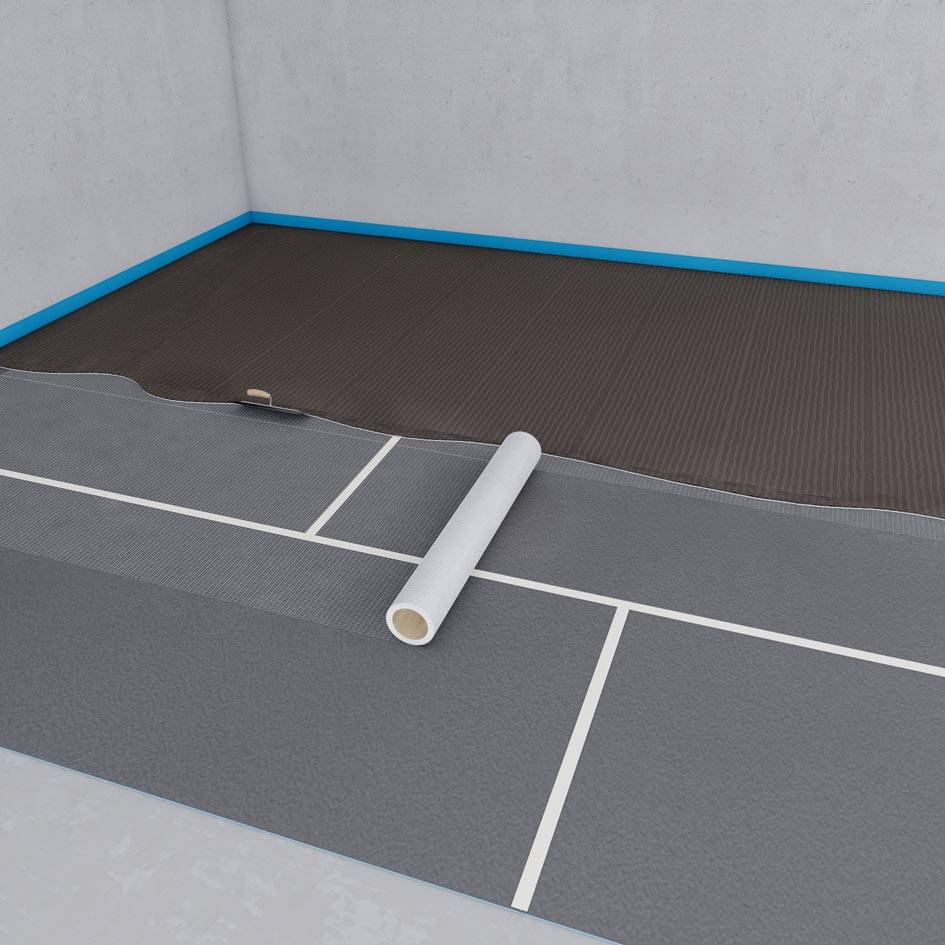

An alkali-resistant glass fibre reinforced fabric for reinforcing over entire board surface area when using wedi Nonstep Plus.

- wedi Tools Sealing Tape:

Sealing tape consisting of a TPE-coated polypropylene fleece for the secure sealing of corner, connecting and butt joints and intersections.
