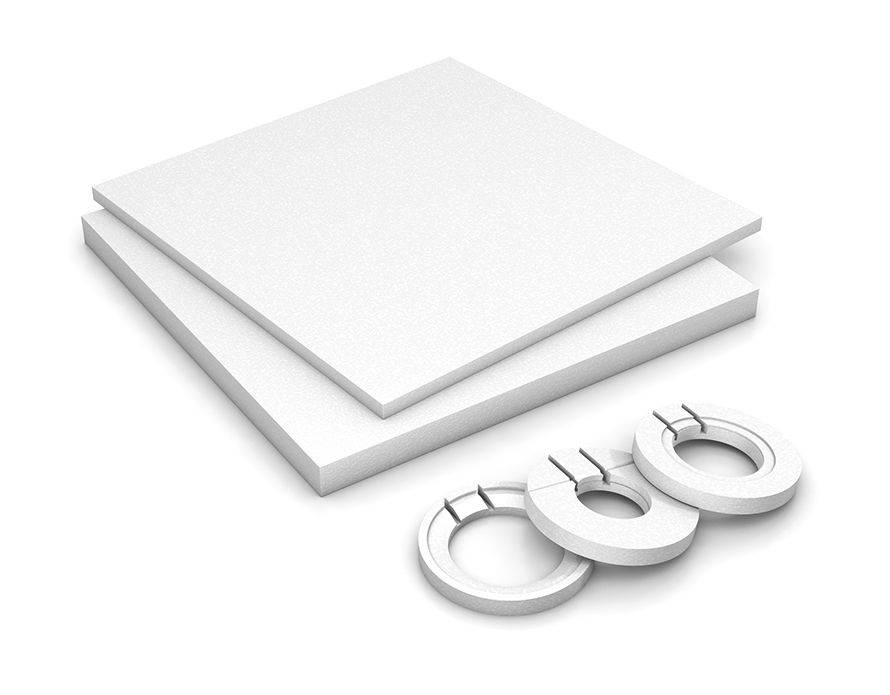

wedi Fundo Substructure Set - support element for Fundo trays/drains

Verified by manufacturer 1 month ago

Wedi Systems (UK) Ltd Third party certifications:
  • BBA Agrément Certificate

    BBA Agrément Certificate

    Certificate type

  • EPD

    EPD

    Certificate type

Load-bearing height adjustment bases for use on the floor as a substructure base underneath Fundo shower elements. Providing adequate support for the tray and drain.

Jump to:
BOS
+44 (0)161 864 2336 Website

Application

Load-bearing height-adjustable substructure bases for use on the floor underneath Fundo shower elements.

Compatible with all wedi Fundo drains (point and channel).


Only to be used on a level surface. Not watertight.

Description

Load-bearing height-adjustable bases for use on the floor as a substructure base underneath Fundo shower elements.


Features and benefits:

  • Includes suitable drain support elements for all wedi fundo drains.
  • Heat-insulating.
  • White, rigid, uncoated polystyrene (made from raw materials without HBCD with polymer flame retardant).
  • Available in three standard sizes.
  • Mount height of 30, 60 or 90 mm can be produced.


Note: not watertight - for use as a substructure base only.

General information

Color

White

Finish

Unfinished

Material

Polystyrene

Shape

Square

Length

900 mm

1200 mm

1500 mm

Width

900 mm

1200 mm

1500 mm

Height

30 mm

60 mm

90 mm

Warranty description

Ten year

Uniclass

Pr_40_20_06_84 Shower traysPrimary

CAWS

N13/375 Shower units

N13/40 Shower units

Product range

Shower Systems / Substructure (drain support)

Specification data - Shower trays

Form

Substructure base.

Materials

-

Body

Polystyrene foam.

Guidance for specification option:

Technical characteristics:

  • BS150 (bending strength): ≥150 kPa.
  • DS(N)5 (dimensional stability in normal climate): ±0.5% (at 23°C, 50% relative humidity).
  • DLT(1)5 (strain at defined levels of compressive and temperature load): ≤5% (at 20 kPa of stress, 80°C ±1.48 h ±1).
  • Long-term performance under compressive stress (expected compression after 50 years ≤2%): ≤3000 kg/m².
  • Building material class according to DIN 4102: B1 (tested in a fire shaft in a vertical position).

Finish and colour

White.

Size

900 x 900 mm.

1200 x 1200 mm.

1500 x 1500 mm.

Compressive strength (minimum) at 10% compression

≥100 kPa.

Fire performance

To EN 13501-1, E.

ThermalConductivity

0.035 W/m·K.

Sustainability data

Contains Red List materials

No

Country of material origin

Germany

Country of product manufacture

Germany

Recyclability

recyclable

Third party certifications

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
Revit
-

2

IFC
-

2

Third party certifications

BBA Agrément Certificate

BBA Agrément Certificate

BBA certificate 14/5126 wedi Fundo Shower Elements

EPD

EPD

Environmental Product Declaration (EPD) - wedi Fundo shower elements

Literature

2019 Product Brochure

2019 Product Brochure

2022 wedi World of Systems brochure

2022 wedi World of Systems brochure

wedi at a glance 2022

wedi at a glance 2022
