wedi Fundo Borgo

Verified by manufacturer 9 days ago

073735576 (900 x 900 mm)

Wedi Systems (UK) Ltd Variant:
Third party certifications:
  • BBA Agrément Certificate

    BBA Agrément Certificate

    Certificate type

  • European Technical Approval (ETA)

    European Technical Approval (ETA)

    Certificate type

  • EPD

    EPD

    Certificate type

Quadrant shape floor-level corner shower tray element.

Jump to:
+44 (0)161 864 2336 Website

Application

  • Private residential construction.
  • Public buildings and workplaces complying with DIN 18024-2.
  • Accessible dwellings complying with DIN 18025-1 and DIN 18025-2.
  • As a construction seal combined with tile and slab coverings of load class A0, A and B.

Description

Composite, floor-level corner shower element with rounded edge for direct tiling with horizontal or vertical floor drain for new build and renovation projects.


Features and benefits:

  • CE Marked.
  • Manufactured from extruded polystyrene (XPS) rigid foam.
  • Can be installed on almost any surface as an individual tileable floor-level shower system.
  • It has a special waterproof coating and an offset floor drain.
  • To be used in conjunction with a Fundo drain.

General information

Color

Grey

Guidance for specification option:

Grey surface, with blue core.

Finish

Cement

Material

High density extruded polystyrene (XPS)

Shape

Other

Warranty description

Ten year

Uniclass

Pr_40_20_06_84 Shower traysPrimary

CAWS

N13/375 Shower units

N13/40 Shower units

Product range

Shower Systems / Shower Tray Formers
Design Line / Designer showers

Specification data - Shower trays

Form

Quadrant.

Materials

-

Body

Extruded polystyrene (XPS).

Finish and colour

Grey surface with a blue rigid foam core.

Size

900 x 900 mm.

wedi Fundo Sealing Set

Required.

Not required.

Thickness

40 mm.

Density

To DIN EN 1602, 32 kg/m³.

Compressive strength (minimum) at 10% compression

To BS EN 826, 0.25 N/mm².

Fire performance

To DIN 4102, B1 and to BS EN 13501-1, E.

Temperature limiter

-50°C to +75°C.

ThermalConductivity

To BS EN 13164, 0.033 W/m·K.

Accessories

320 Flexible Cement Based Adhesive.

Guidance for specification option:

Universal tile adhesive to bond shower tray to the floor substrate.

520 Cement Based Waterproof Membrane.

Guidance for specification option:

Sealant for sealing of joints in conjunction with wedi sealing tape

610 Adhesive Sealant.

Fundo Sealing Set.

Guidance for specification option:

Bucket set, consisting of a two-component sealant, wedi tools sealing tape and sealing corners for flexible joint sealing.

Joint Reinforcement Tape.

Sustainability data

Contains Red List materials

No

Country of material origin

Germany

Country of product manufacture

Germany

Recyclability

100%

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

25 %

Manufacturer guidance

Contains at least 25% recycled material

Third party certifications

Third party certifications

BBA Agrément Certificate

BBA Agrément Certificate

BBA certificate 14/5126 wedi Fundo Shower Elements

European Technical Approval (ETA)

European Technical Approval (ETA)

ETA - 13/0385

EPD

EPD

Environmental Product Declaration (EPD) - wedi Fundo shower elements

Literature

2019 Product Brochure

2019 Product Brochure

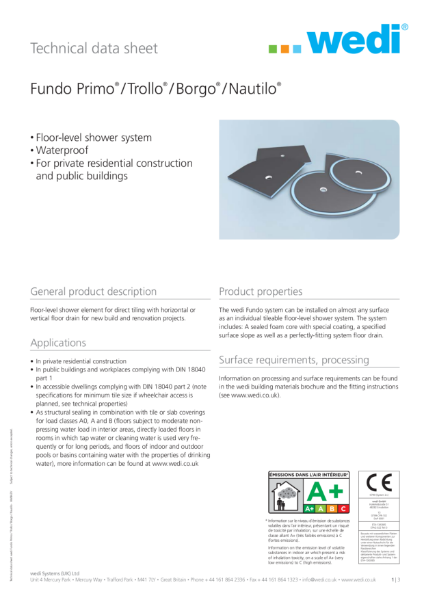

wedi Fundo Primo / Borgo / Trollo / Nautilo TDS

wedi Fundo Primo / Borgo / Trollo / Nautilo TDS

BBA certificate 14/5126 wedi Fundo Shower Elements

BBA certificate 14/5126 wedi Fundo Shower Elements

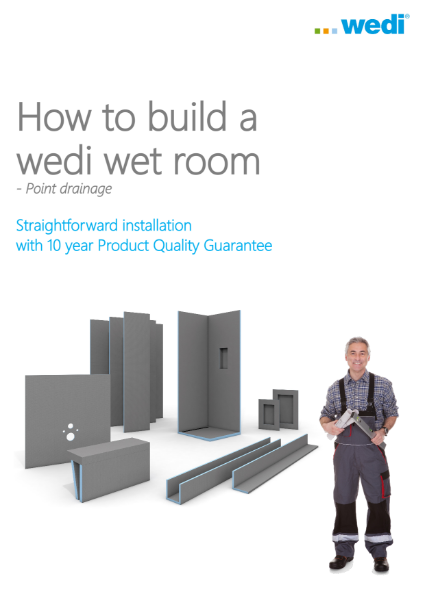

How to build.. point drainage
