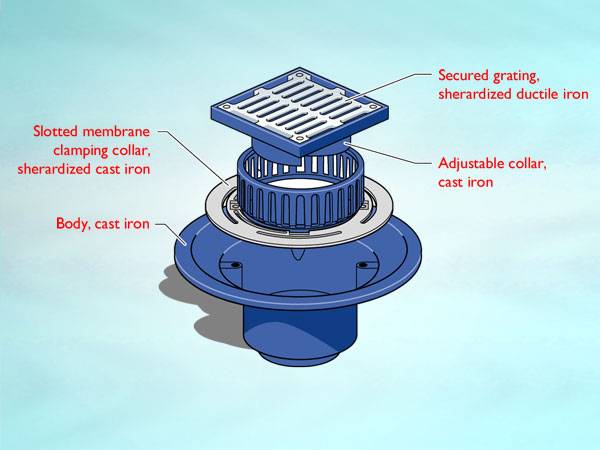

WD6 Series outlet for inverted roof or no fines screed, square flat grating

WD6 Series outlet for inverted roof, square flat grating

WD614 Roof outlet, 4" BSP thread, sherardized ductile iron secured square grating

WD616 Roof outlet, 6" BSP thread, sherardized ductile iron secured square grating

WD618 Roof outlet, 200 mm spigot, sherardized ductile iron secured square grating

As drawing ___

Contractor's choice

Not required

WG501 Extension piece; cast iron, height 96 mm

WG502 Extension piece; cast iron, height 35 mm

As drawing ___

Contractor's choice

Not required

T303 Adaptor (ABS) to 6" BSP thread for 160 mm plastics pipework; threaded one end; length 166 mm

For use with WD616. Proprietary coupling required.

T1704 Adaptor (ABS) to 4" BSP thread for 110 mm plastics pipework; threaded one end; length 126 mm; includes solvent weld socket

For use with WD614.

WT103 Adaptor (cast iron) to 4" BSP thread for 100 mm cast iron pipework to BS 416 and to DIN 19522 (Ensign + SMU); threaded one end; length 170 mm

For use with WD614. Proprietary coupling required.

WT104 Adaptor (cast iron) to 6" BSP thread for 150 mm cast iron pipework to BS 416 and to DIN 19522 (Ensign + SMU); threaded one end; length 170 mm

For use with WD616. Proprietary coupling required.

WT105 Adaptor (cast iron) to 4" BSP thread for 100 mm cast iron pipework to BS 437; threaded one end; length 170 mm

For use with WD614. Proprietary coupling required.

WT106 Adaptor (cast iron) to 6" BSP thread for 150 mm cast iron pipework to BS 437; threaded one end; length 170 mm

For use with WD616. Proprietary coupling required.

Not required

WH202 Underdeck clamp; mild steel

To secure outlet body to a roof deck.

WH202SS Underdeck clamp; stainless steel

To secure outlet body to a roof deck.

WH301 Bearing pan; galvanized mild steel

To spread the load over a larger area.

Bonded insulation jacket

Used to prevent condensation forming on the underside of an outlet body.

Bonded insulation jacket with trace heating

Used to prevent condensation forming on the underside of an outlet body. Consult manufacturer.

As drawing ___

Contractor's choice
