Description

Wade WC9 Series (deep sump) outlets for warm roofs under non-loadbearing conditions are designed for use with insulation thicknesses of 20–135 mm.

General information
Material

Body: Cast iron

Uniclass 2015
Gravity rainwater outlets (Pr_65_50_35_37)Primary
Specification data - Gravity rainwater outlets
Product Reference

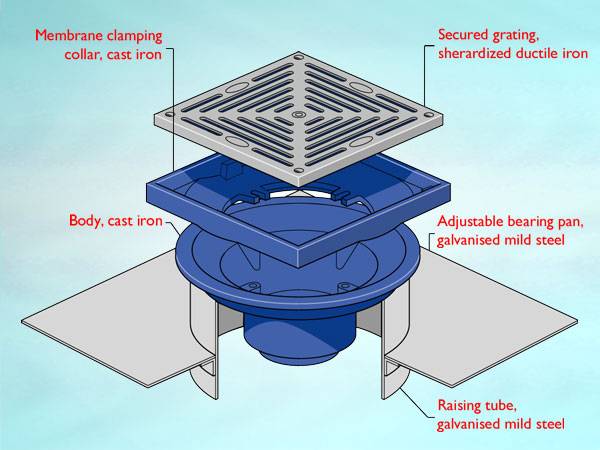

WC9 Series outlet for warm roof, non-loadbearing condition, square flat grating

Type

WC914, Roof outlet, 4" BSP thread, galvanized steel bearing pan, sherardized ductile iron secured square grating

WC916, Roof outlet, 6" BSP thread, galvanized steel bearing pan, sherardized ductile iron secured square grating

WC918, Roof outlet, 200 mm spigot, galvanized steel bearing pan, sherardized ductile iron secured square grating

As drawing ___

Contractor's choice

Spigot adaptors

Not required

T303 Adaptor (ABS) to 6" BSP thread for 160 mm plastics pipework; threaded one end; length 166 mm

For use with WC916. Proprietary coupling required.

T1704 Adaptor (ABS) to 4" BSP thread for 110 mm plastics pipework; threaded one end; length 126 mm; includes solvent weld socket

For use with WC914.

WT103 Adaptor (cast iron) to 4" BSP thread for 100 mm cast iron pipework to BS 416 and to DIN 19522 (Ensign + SMU); threaded one end; length 170 mm

For use with WC914. Proprietary coupling required.

WT104 Adaptor (cast iron) to 6" BSP thread for 150 mm cast iron pipework to BS 416 and to DIN 19522 (Ensign + SMU); threaded one end; length 170 mm

For use with WC916. Proprietary coupling required.

WT105 Adaptor (cast iron) to 4" BSP thread for 100 mm cast iron pipework to BS 437; threaded one end; length 170 mm

For use with WC914. Proprietary coupling required.

WT106 Adaptor (cast iron) to 6" BSP thread for 150 mm cast iron pipework to BS 437; threaded one end; length 170 mm

For use with WC916. Proprietary coupling required.

Accessories

Not required

WH202 Underdeck clamp; mild steel

To secure outlet body to a roof deck.

WH202SS Underdeck clamp; stainless steel

To secure outlet body to a roof deck.

WH402 Filter bucket; stainless steel

Used to intercept debris. Filter buckets will reduce flow rate by varying extent depending on body selected.

Bonded insulation jacket

Used to prevent condensation forming on the underside of an outlet body.

Bonded insulation jacket with trace heating

Used to prevent condensation forming on the underside of an outlet body. Consult manufacturer.

As drawing ___

Contractor's choice

Standard product features

Material:

Body: Cast iron.

Area drained (at head, 35 mm; rainfall rate, 75mm/h):

  • WC914: 461 m².
  • WC916: 469 m².

Load rating class (BS EN 1253):

For non-loadbearing areas.

Product Options

Spigot adaptors:

A comprehensive range of spigot adaptors is available to enable bodies with BSP threaded outlet to be connected speedily and effectively to all pipework in general use. To complete the connection a proprietary coupling may be required. Longer spigots, such as required to pass through a slab, can be made in 10 mm increments up to 1000 mm. To specify add suffix “#” and length (mm). On request, spigots may also be threaded both ends.
