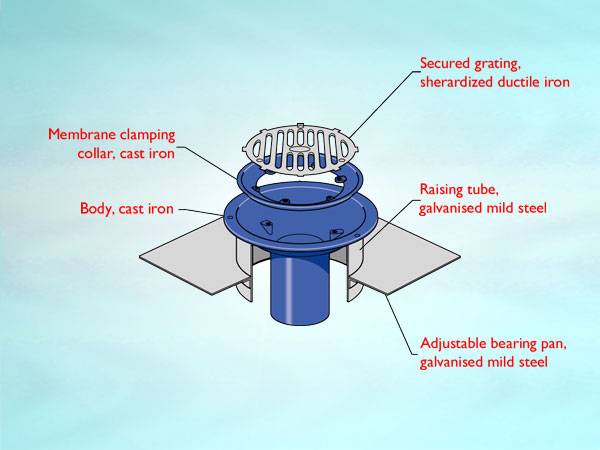

WC5 Series outlet for warm roof, non-loadbearing condition, spigot outlet, flat grating
Description

Wade WC5 Series (medium sump) outlets for warm roofs under non-loadbearing conditions are designed for use with insulation thicknesses of 20–135 mm.

General information

Material

Body: Cast iron

Specification data

Product Reference

WC5 Series outlet for warm roof, non-loadbearing condition, spigot outlet, flat grating

Type

WC502, Roof outlet, 50 mm spigot, sherardized ductile iron secured grating

WC503, Roof outlet, 75 mm spigot, sherardized ductile iron secured grating

WC504, Roof outlet, 100 mm spigot, sherardized ductile iron secured grating

As drawing ___

Contractor's choice

Accessories

Not required

WG102 Underdeck clamp; mild steel

To secure outlet body to a roof deck.

WG102SS Underdeck clamp; stainless steel

To secure outlet body to a roof deck.

WG301

Bonded insulation jacket

Used to prevent condensation forming on the underside of an outlet body.

Bonded insulation jacket with trace heating

Used to prevent condensation forming on the underside of an outlet body. Consult manufacturer.

As drawing ___

Contractor's choice

Standard product features

Material:

Body: Cast iron.

Area drained (at head, 35 mm; rainfall rate, 75mm/h):

  • WC502: 159 m².
  • WC503: 205 m².
  • WC504: 245 m².

Load rating class (BS EN 1253):

For non-loadbearing areas.
