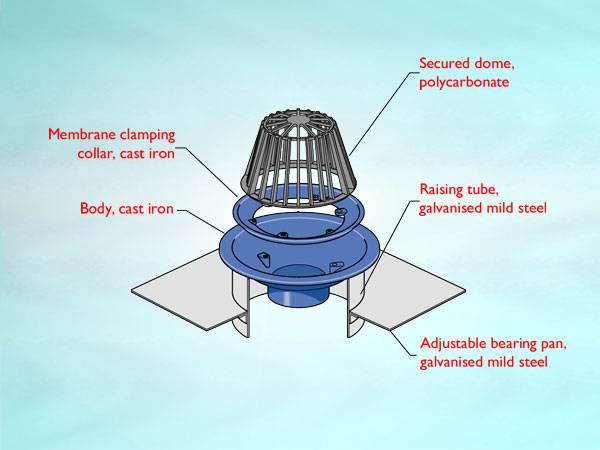

WC4 Series outlet for warm roof, non-loadbearing condition, vertical threaded outlet, dome grating or overflow upstand
Description

Wade WC4 Series (medium sump) outlets for warm roofs under non-loadbearing conditions are designed for use with insulation thicknesses of 20–135 mm.

Overflow outlet:

For roof outlets with suffix 'OF' the dome grating is replaced with a polypropylene and ABS overflow upstand. Diameter of overflow supplied will match specified outlet diameter. Height of overflow pipe can be adjusted as required on site, either by cutting to length or solvent welding an additional section of pipe. Basic heights for different diameters are:

  • 50 mm diameter: 30 mm high.
  • 75 mm diameter: 110 mm high.
  • 100 mm diameter: 96 mm high.

General information

Material

Body: Cast iron

Specification data

Product Reference

WC4 Series outlet for warm roof, non-loadbearing condition, vertical threaded outlet

Type

WC422, Roof outlet, vertical 2" BSP thread, polycarbonate secured dome grating

WC422SS, Roof outlet, vertical 2" BSP thread, stainless steel secured dome grating

WC422OF, Roof outlet, vertical 2" BSP thread, overflow upstand in lieu of dome grating

WC423, Roof outlet, vertical 3" BSP thread, polycarbonate secured dome grating

WC423SS, Roof outlet, vertical 3" BSP thread, stainless steel secured dome grating

WC423OF, Roof outlet, vertical 3" BSP thread, overflow upstand in lieu of dome grating

WC424, Roof outlet, vertical 4" BSP thread, polycarbonate secured dome grating

WC424SS, Roof outlet, vertical 4" BSP thread, stainless steel secured dome grating

WC424OF, Roof outlet, vertical 4" BSP thread, overflow upstand in lieu of dome grating

As drawing ___

Contractor's choice

Spigot adaptors

Not required

T301 Adaptor (ABS) to 3" BSP thread for 82 mm plastics pipework; threaded one end; length 140 mm

For use with WC423.

T1702 Adaptor (ABS) to 2" BSP thread for 50 mm plastics pipework; threaded one end; length 60 mm; includes solvent weld socket

For use with WC422.

T1704 Adaptor (ABS) to 4" BSP thread for 110 mm plastics pipework; threaded one end; length 126 mm; includes solvent weld socket

For use with WC424.

T1802 Adaptor (ABS) to 2" BSP thread for 50 mm stainless steel pipework; threaded one end; length 90 mm

For use with WC422. Proprietary coupling required.

WT101 Adaptor (sherardized mild steel) to 2" BSP thread for 50 mm cast iron pipework to BS 416 and to DIN 19522 (Ensign + SMU); threaded one end; length 170 mm

For use with WC422. Proprietary coupling required.

WT102 Adaptor (sherardized mild steel) to 3" BSP thread for 75 mm cast iron pipework to BS 416 and to DIN 19522 (Ensign); threaded one end; length 170 mm

For use with WC423. Proprietary coupling required (or Wade T1603 for connection to DIN 19522 pipes).

WT103 Adaptor (cast iron) to 4" BSP thread for 100 mm cast iron pipework to BS 416 and to DIN 19522 (Ensign + SMU); threaded one end; length 170 mm

For use with WC424. Proprietary coupling required.

WT105 Adaptor (cast iron) to 4" BSP thread for 100 mm cast iron pipework to BS 437; threaded one end; length 170 mm

For use with WC424. Proprietary coupling required.

WT108 Adaptor (sherardized mild steel) to 3" BSP thread for 75 mm cast iron pipework to BS 416 and to DIN 19522 (SMU); threaded one end; length 170 mm

For use with WC423. Proprietary coupling required.

As drawing ___

Contractor's choice

Accessories

Not required

WG102 Underdeck clamp; mild steel

To secure outlet body to a roof deck.

WG102SS Underdeck clamp; stainless steel

To secure outlet body to a roof deck.

WG406 Gravel guard; stainless steel, height 150 mm

For use with domes on all roofs having a deep gravel finish, to prevent ingress of insulation or gravel.

WG408 Gravel guard; stainless steel, height 200 mm

For use with domes on all roofs having a deep gravel finish, to prevent ingress of insulation or gravel.

WG301

Bonded insulation jacket

Used to prevent condensation forming on the underside of an outlet body.

Bonded insulation jacket with trace heating

Used to prevent condensation forming on the underside of an outlet body. Consult manufacturer.

As drawing ___

Contractor's choice

Standard product features

Material:

Body: Cast iron.

Area drained (at head, 35 mm; rainfall rate, 75mm/h):

  • WC422: 95 m².
  • WC423: 221 m².
  • WC424: 290 m².

Load rating class (BS EN 1253):

For non-loadbearing areas.

Product Options

Spigot adaptors:

A comprehensive range of spigot adaptors is available to enable bodies with BSP threaded outlet to be connected speedily and effectively to all pipework in general use. To complete the connection a proprietary coupling may be required. Longer spigots, such as required to pass through a slab, can be made in 10 mm increments up to 1000 mm. To specify add suffix “#” and length (mm). On request, spigots may also be threaded both ends.

- Type:

  • Suffix SS, with grade 304 stainless steel dome.
  • Suffix SSM, with grade 316 stainless steel dome.
  • Suffix OF, with overflow upstand in lieu of dome grating.
