Description

Wade WC3 Series (medium sump) outlets for warm roofs under loadbearing conditions are designed for use with insulation thicknesses of 80–100 mm. For other insulation thicknesses, consult manufacturer.

General information
Material

Body: Cast iron

Uniclass 2015
Gravity rainwater outlets (Pr_65_50_35_37)Primary
Specification data - Gravity rainwater outlets
Product Reference

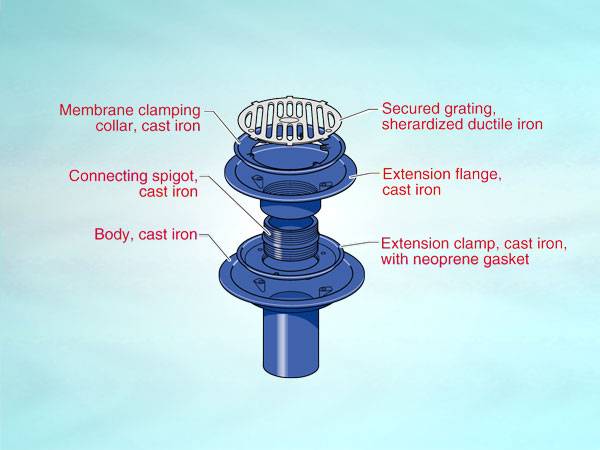

WC3 Series outlet for warm roof, loadbearing condition, spigot outlet, flat grating

Type

WC302, Roof outlet, 50 mm spigot, sherardized ductile iron secured grating

WC303, Roof outlet, 75 mm spigot, sherardized ductile iron secured grating

WC304, Roof outlet, 100 mm spigot, sherardized ductile iron secured grating

As drawing ___

Contractor's choice

Accessories

Not required

WG102 Underdeck clamp; mild steel

To secure outlet body to a roof deck.

WG102SS Underdeck clamp; stainless steel

To secure outlet body to a roof deck.

WG201 Bearing pan; galvanized mild steel

To spread the load over a larger area.

WG301

Bonded insulation jacket

Used to prevent condensation forming on the underside of an outlet body.

Bonded insulation jacket with trace heating

Used to prevent condensation forming on the underside of an outlet body. Consult manufacturer.

As drawing ___

Contractor's choice

Standard product features

Material:

Body: Cast iron.

Area drained (at head, 35 mm; rainfall rate, 75mm/h):

  • WC302: 159 m².
  • WC303: 205 m².
  • WC304: 245 m².

Load rating class (BS EN 1253):

L15 (suitable for areas with light vehicular traffic).
