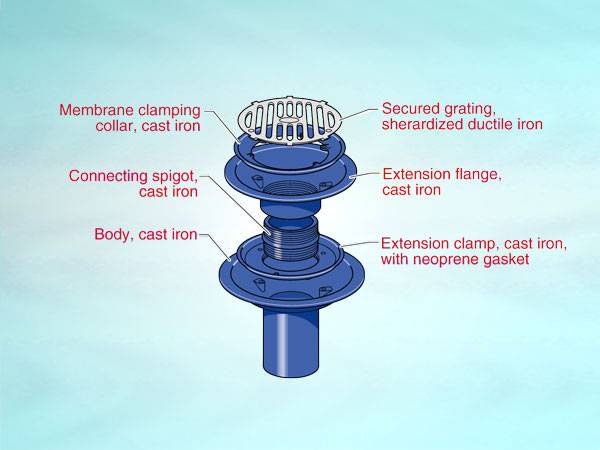

WC3 Series outlet for warm roof, loadbearing condition, spigot outlet, flat grating
Cast iron body, medium sump.
Wade WC3 Series (medium sump) outlets for warm roofs under loadbearing conditions are designed for use with insulation thicknesses of 80–100 mm. For other insulation thicknesses, consult manufacturer.
Material | Body: Cast iron |
Product Reference | WC3 Series outlet for warm roof, loadbearing condition, spigot outlet, flat grating |
Type | WC302, Roof outlet, 50 mm spigot, sherardized ductile iron secured gratingWC303, Roof outlet, 75 mm spigot, sherardized ductile iron secured gratingWC304, Roof outlet, 100 mm spigot, sherardized ductile iron secured gratingAs drawing ___Contractor's choice |
Accessories | Not requiredWG102 Underdeck clamp; mild steelTo secure outlet body to a roof deck. WG102SS Underdeck clamp; stainless steelTo secure outlet body to a roof deck. WG201 Bearing pan; galvanized mild steelTo spread the load over a larger area. WG301Bonded insulation jacketUsed to prevent condensation forming on the underside of an outlet body. Bonded insulation jacket with trace heatingUsed to prevent condensation forming on the underside of an outlet body. Consult manufacturer. As drawing ___Contractor's choice |
Standard product features | Material: Body: Cast iron. Area drained (at head, 35 mm; rainfall rate, 75mm/h):
Load rating class (BS EN 1253): L15 (suitable for areas with light vehicular traffic). |
