Description

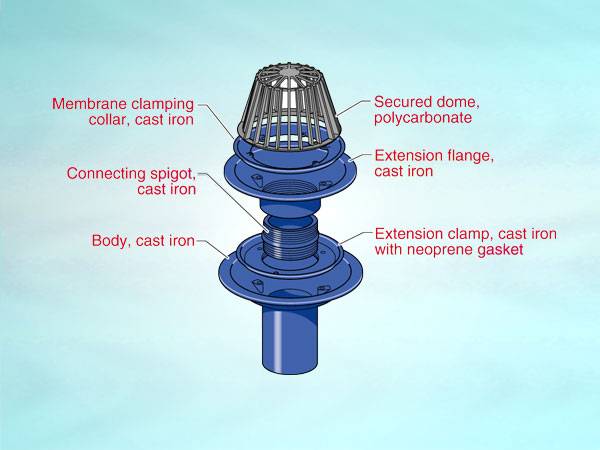

Wade WC2 Series (medium sump) outlets for warm roofs under loadbearing conditions are designed for use with insulation thicknesses of 80–100 mm. For other thicknesses, consult manufacturer.

Overflow outlet:

For roof outlets with suffix 'OF' the dome grating is replaced with a polypropylene and ABS overflow upstand. Diameter of overflow supplied will match specified outlet diameter. Height of overflow pipe can be adjusted as required on site, either by cutting to length or solvent welding an additional section of pipe. Basic heights for different diameters are:

  • 50 mm diameter: 30 mm high.
  • 75 mm diameter: 110 mm high.
  • 100 mm diameter: 96 mm high.

General information
Material

Body: Cast iron

Uniclass 2015
Pr_65_50_35_37 Gravity rainwater outletsPrimary
Specification data - Gravity rainwater outlets
Product Reference

WC2 Series outlet for warm roof, loadbearing condition, spigot outlet

Type

WC202, Roof outlet, 50 mm spigot, polycarbonate secured dome grating

WC202SS, Roof outlet, 50 mm spigot, stainless steel secured dome grating

WC202OF, Roof outlet, 50 mm spigot, overflow upstand in lieu of dome grating

WC203, Roof outlet, 75 mm spigot, polycarbonate secured dome grating

WC203SS, Roof outlet, 75 mm spigot, stainless steel secured dome grating

WC203OF, Roof outlet, 75 mm spigot, overflow upstand in lieu of dome grating

WC204, Roof outlet, 100 mm spigot, polycarbonate secured dome grating

WC204SS, Roof outlet, 100 mm spigot, stainless steel secured dome grating

WC204OF, Roof outlet, 100 mm spigot, overflow upstand in lieu of dome grating

As drawing ___

Contractor's choice

Accessories

Not required

WG102 Underdeck clamp; mild steel

To secure outlet body to a roof deck.

WG102SS Underdeck clamp; stainless steel

To secure outlet body to a roof deck.

WG201 Bearing pan; galvanized mild steel

To spread the load over a larger area.

WG406 Gravel guard; stainless steel, height 150 mm

For use with domes on all roofs having a deep gravel finish, to prevent ingress of insulation or gravel.

WG408 Gravel guard; stainless steel, height 200 mm

For use with domes on all roofs having a deep gravel finish, to prevent ingress of insulation or gravel.

WG301

Bonded insulation jacket

Used to prevent condensation forming on the underside of an outlet body.

Bonded insulation jacket with trace heating

Used to prevent condensation forming on the underside of an outlet body. Consult manufacturer.

As drawing ___

Contractor's choice

Standard product features

Material:

Body: Cast iron.

Area drained (at head, 35 mm; rainfall rate, 75mm/h):

  • WC202: 95 m².
  • WC203: 221 m².
  • WC204: 290 m².

Load rating class (BS EN 1253):

K3 (suitable for areas without vehicular traffic, such as balconies, terraces and roof gardens).

Product Options

Spigot adaptors:

- Type:

  • Suffix SS, with grade 304 stainless steel dome.
  • Suffix SSM, with grade 316 stainless steel dome.
  • Suffix OF, with overflow upstand in lieu of dome grating.
