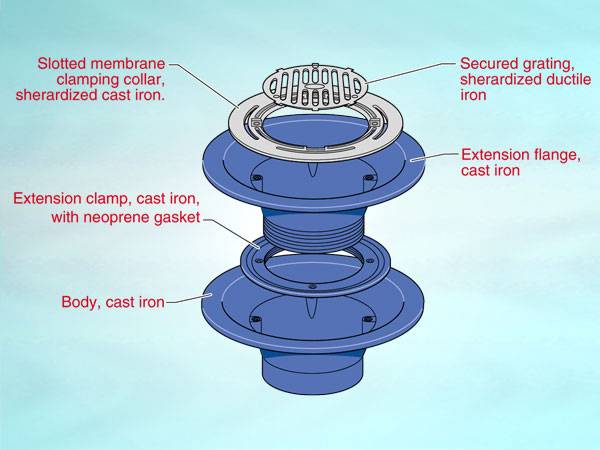

WC10 Series outlet for warm roof, loadbearing condition, round flat grating
Cast iron body, deep sump.
Wade WC10 Series (deep sump) outlets for warm roofs under loadbearing conditions are designed for use with insulation thicknesses of 80–115 mm.
Material | Body: Cast iron |
Product Reference | WC10 Series outlet for warm roof, loadbearing condition, round flat grating |
Type | WC1044, Roof outlet, 4" BSP thread, sherardized ductile iron secured round gratingWC1046, Roof outlet, 6" BSP thread, sherardized ductile iron secured round gratingAs drawing ___Contractor's choice |
Spigot adaptors | Not requiredT303 Adaptor (ABS) to 6" BSP thread for 160 mm plastics pipework; threaded one end; length 166 mmFor use with WC1046. Proprietary coupling required. T1704 Adaptor (ABS) to 4" BSP thread for 110 mm plastics pipework; threaded one end; length 126 mm; includes solvent weld socketFor use with WC1044. WT103 Adaptor (cast iron) to 4" BSP thread for 100 mm cast iron pipework to BS 416 and to DIN 19522 (Ensign + SMU); threaded one end; length 170 mmFor use with WC1044. Proprietary coupling required. WT104 Adaptor (cast iron) to 6" BSP thread for 150 mm cast iron pipework to BS 416 and to DIN 19522 (Ensign + SMU); threaded one end; length 170 mmFor use with WC1046. Proprietary coupling required. WT105 Adaptor (cast iron) to 4" BSP thread for 100 mm cast iron pipework to BS 437; threaded one end; length 170 mmFor use with WC1044. Proprietary coupling required. WT106 Adaptor (cast iron) to 6" BSP thread for 150 mm cast iron pipework to BS 437; threaded one end; length 170 mmFor use with WC1046. Proprietary coupling required. |
Accessories | Not requiredWH202 Underdeck clamp; mild steelTo secure outlet body to a roof deck. WH202SS Underdeck clamp; stainless steelTo secure outlet body to a roof deck. WH301 Bearing pan; galvanized mild steelTo spread the load over a larger area. Bonded insulation jacketUsed to prevent condensation forming on the underside of an outlet body. Bonded insulation jacket with trace heatingUsed to prevent condensation forming on the underside of an outlet body. Consult manufacturer. As drawing ___Contractor's choice |
Standard product features | Material: Body: Cast iron. Area drained (at head, 35 mm; rainfall rate, 75mm/h):
Load rating class (BS EN 1253): L15 (suitable for areas with light vehicular traffic). |
Product Options | Spigot adaptors: A comprehensive range of spigot adaptors is available to enable bodies with BSP threaded outlet to be connected speedily and effectively to all pipework in general use. To complete the connection a proprietary coupling may be required. Longer spigots, such as required to pass through a slab, can be made in 10 mm increments up to 1000 mm. To specify add suffix “#” and length (mm). On request, spigots may also be threaded both ends. |
