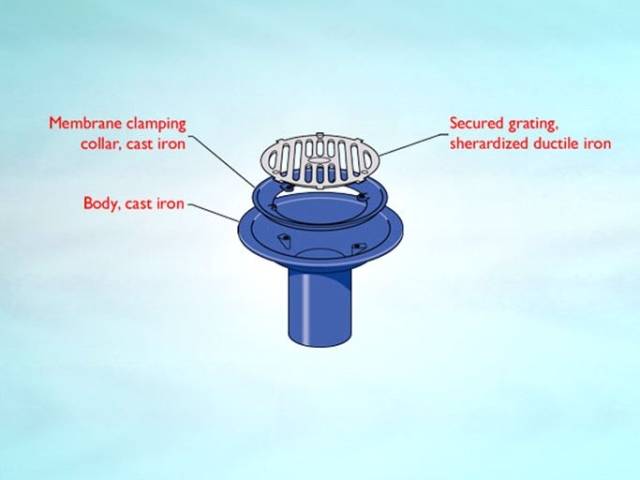

Wade WB3 Series (medium sump) outlets for cold roofs are designed for use where the waterproofing membrane is at finished roof level and insulation (if any) is placed below the roof deck.

General information
Material

Body: Cast iron

Uniclass 2015
Pr_65_50_35_37 Gravity rainwater outletsPrimary
Specification data - Gravity rainwater outlets
Product Reference

WB3 Series outlet for cold roof, horizontal threaded outlet, flat grating

Type

WB332, Roof outlet, horizontal 2" BSP thread, sherardized ductile iron secured grating

WB333, Roof outlet, horizontal 3" BSP thread, sherardized ductile iron secured grating

WB334, Roof outlet, horizontal 4" BSP thread, sherardized ductile iron secured grating

As drawing ___

Contractor's choice

Spigot adaptors

Not required

T301 Adaptor (ABS) to 3" BSP thread for 82 mm plastics pipework; threaded one end; length 140 mm

For use with WB333.

T1702 Adaptor (ABS) to 2" BSP thread for 50 mm plastics pipework; threaded one end; length 60 mm; includes solvent weld socket

For use with WB332.

T1704 Adaptor (ABS) to 4" BSP thread for 110 mm plastics pipework; threaded one end; length 126 mm; includes solvent weld socket

For use with WB334.

T1802 Adaptor (ABS) to 2" BSP thread for 50 mm stainless steel pipework; threaded one end; length 90 mm

For use with WB332. Proprietary coupling required.

WT101 Adaptor (sherardized mild steel) to 2" BSP thread for 50 mm cast iron pipework to BS 416 and to DIN 19522 (Ensign + SMU); threaded one end; length 170 mm

For use with WB332. Proprietary coupling required.

WT102 Adaptor (sherardized mild steel) to 3" BSP thread for 75 mm cast iron pipework to BS 416 and to DIN 19522 (Ensign); threaded one end; length 170 mm

For use with WB333. Proprietary coupling required (or Wade T1603 for connection to DIN 19522 pipes).

WT103 Adaptor (cast iron) to 4" BSP thread for 100 mm cast iron pipework to BS 416 and to DIN 19522 (Ensign + SMU); threaded one end; length 170 mm

For use with WB334. Proprietary coupling required.

WT105 Adaptor (cast iron) to 4" BSP thread for 100 mm cast iron pipework to BS 437; threaded one end; length 170 mm

For use with WB334. Proprietary coupling required.

WT108 Adaptor (sherardized mild steel) to 3" BSP thread for 75 mm cast iron pipework to BS 416 and to DIN 19522 (SMU); threaded one end; length 170 mm

For use with WB333. Proprietary coupling required.

WG301 Sediment bucket

As drawing ___

Contractor's choice

Accessories

Not required

Contractor's choice

Standard product features

Material:

Body: Cast iron.

Area drained (at head, 35 mm; rainfall rate, 75mm/h):

  • WB332: 121 m².
  • WB333: 227 m².
  • WB334: 228 m².

Load rating class (BS EN 1253):

L15 (suitable for areas with light vehicular traffic).

Product Options

Spigot adaptors:

A comprehensive range of spigot adaptors is available to enable bodies with BSP threaded outlet to be connected speedily and effectively to all pipework in general use. To complete the connection a proprietary coupling may be required. Longer spigots, such as required to pass through a slab, can be made in 10 mm increments up to 1000 mm. To specify add suffix “#” and length (mm). On request, spigots may also be threaded both ends.
