Application

Suitable for multi-storey buildings requiring noise insulation, including:

  • Hotels.
  • Hospitals.
  • Shopping centres.
  • Office buildings.
  • Residential homes.
  • High-rise apartments.
  • Schools and universities.

The Wavin AS system can also be installed as:

  • Soil stacks.
  • Internal rainwater systems.
  • Suspended pipe systems.

Description

Wavin AS is a low noise waste water system. It is complemented by a range of push-fit fittings.

Features and benefits:

  • Easy to install.
  • Can be fixed with rubber lined metal brackets.
  • Durable and robust.
  • Resistant to corrosion.

Applications:

Suitable for multi-storey buildings requiring noise insulation, including:

  • Hotels.
  • Hospitals.
  • Shopping centres.
  • Office buildings.
  • Residential homes.
  • High-rise apartments.
  • Schools and universities.

The Wavin AS system can also be installed as:

  • Soil stacks.
  • Internal rainwater systems.
  • Suspended pipe systems.

General information
Specification data
Product Reference

Wavin AS – Acoustic Soil System

Type

Insert product reference from 'Options' below.

Product Options

Type:

  • 3000177 – Sealing ring, 160 mm diameter.
  • 3000177 – Sealing ring, 160 mm diameter.
  • 3003325 – Plain ended pipe, 110 mm diameter, 3 m length.
  • 3003325 – Plain ended pipe, 110 mm diameter, 3 m length.
  • 3003331 – Plain ended pipe, 160 mm diameter, 3 m length.
  • 3003331 – Plain ended pipe, 160 mm diameter, 3 m length.
  • 3003362 – Single socket pipe, 110 mm diameter, 2 m length.
  • 3003362 – Single socket pipe, 110 mm diameter, 2 m length.
  • 3012211 – Single socket pipe, 110 mm diameter, 3 m length.
  • 3012211 – Single socket pipe, 110 mm diameter, 3 m length.
  • 3020490 – D/S WC manifold branch, straight, 110 mm diameter.
  • 3020491 – D/S WC manifold branch, left-hand, 8º, 110 mm diameter.
  • 3020492 – D/S WC manifold branch, left-hand, 15.5º, 110 mm diameter.
  • 3020493 – D/S WC manifold branch, left-hand, 23º, 110 mm diameter.
  • 3020494 – D/S WC manifold branch, left-hand, 30.5º, 110 mm diameter.
  • 3020495 – D/S WC manifold branch, left-hand, 38º, 110 mm diameter.
  • 3020496 – D/S WC manifold branch, right-hand, 8º, 110 mm diameter.
  • 3020497 – D/S WC manifold branch, right-hand, 15.5º, 110 mm diameter.
  • 3020498 – D/S WC manifold branch, right-hand, 23º, 110 mm diameter.
  • 3020499 – D/S WC manifold branch, right-hand, 30.5º, 110 mm diameter.
  • 3020500 – D/S WC manifold branch, right-hand, 38º, 110 mm diameter.
  • 3020506 – Single boss pipe spigot tail, 32 x 110 mm.
  • 3020506 – Single boss pipe spigot tail, 32 x 110 mm.
  • 3020507 – Single boss pipe spigot tail, 40 x 110 mm.
  • 3020508 – Single boss pipe spigot tail, 50 x 110 mm.
  • 3020509 – Metal fire collar, 110 mm diameter.
  • 3020511 – M10 x 80 mm bolt, 110 mm diameter.
  • 3020513 – Metal fire collar, 160 mm diameter.
  • 3065902 – Soil manifold, 110 mm diameter.
  • 3074603 – Compensator socket, 110 mm diameter.
  • 3074606 – Compensator socket, 160 mm diameter.

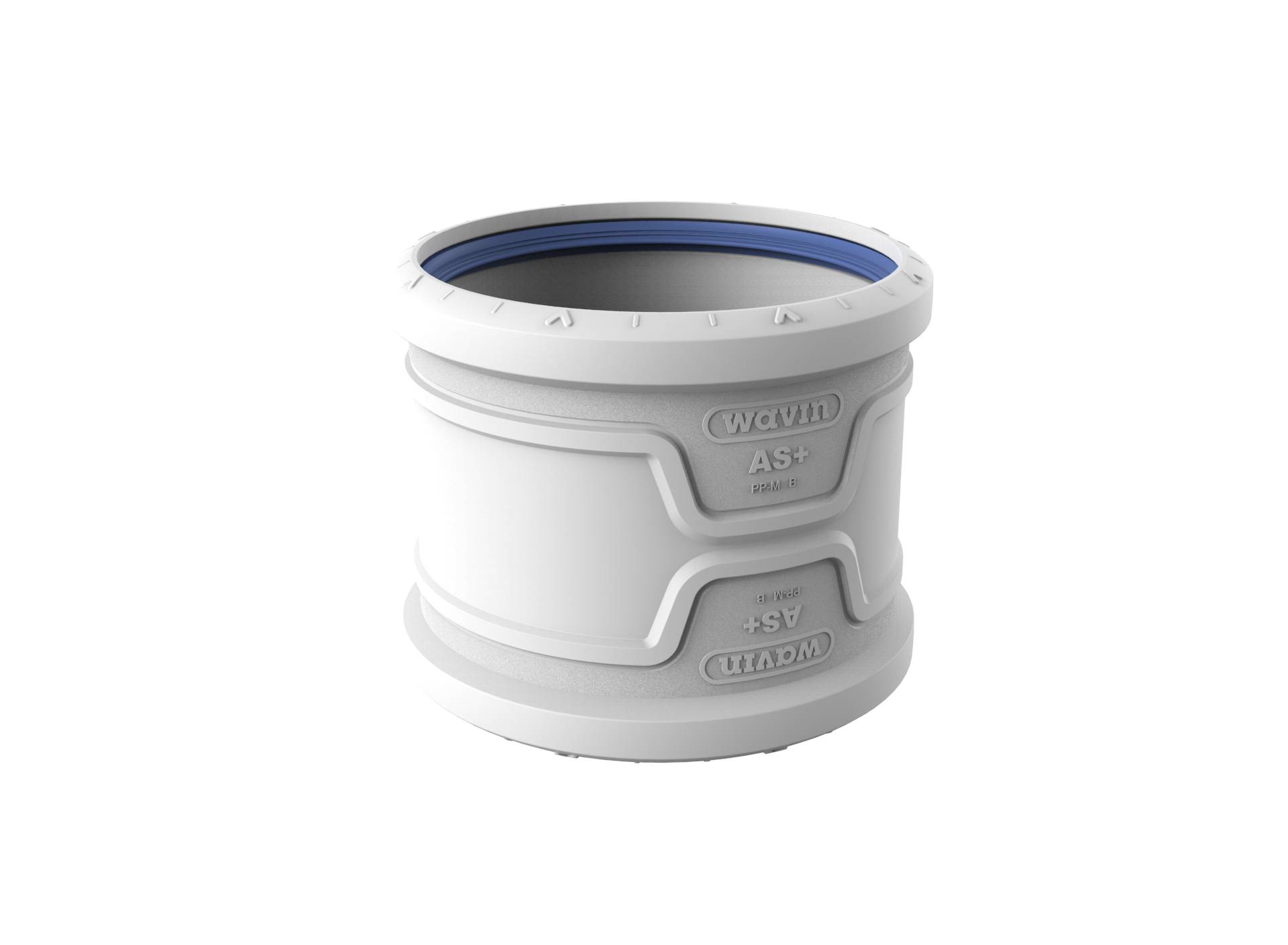

  • 3074610 – Double socket sleeve, 110 mm diameter.
  • 3074612 – Double socket sleeve, 160 mm diameter.
  • 3074619 – Single socket pipe, 110 mm diameter, 150 mm length.
  • 3074622 – Single socket pipe, 160 mm diameter, 150 mm length.
  • 3074698 – Single socket reducer, 160 x 110 mm.
  • 3074704 – Socket plug, 110 mm diameter.
  • 3074706 – Socket plug, 160 mm diameter.
  • 4006554 – Spare collar, 110 mm diameter.
  • 4006556 – Spare collar, 160 mm diameter.
  • 4006583 – Sealing ring, 110 mm diameter.
