3D Acoustic wall panel
Acoustic Panel for Wall and ceiling applications

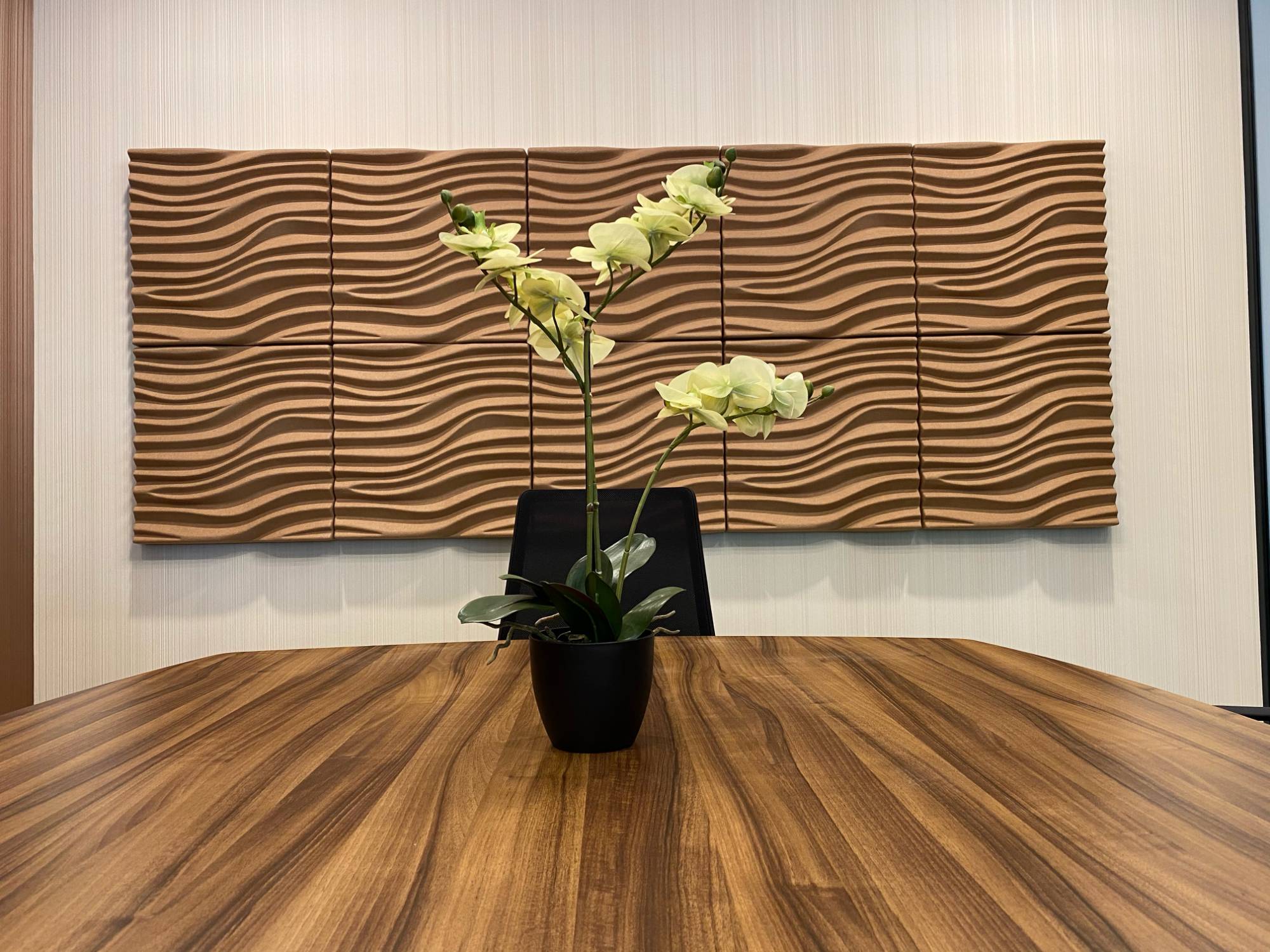

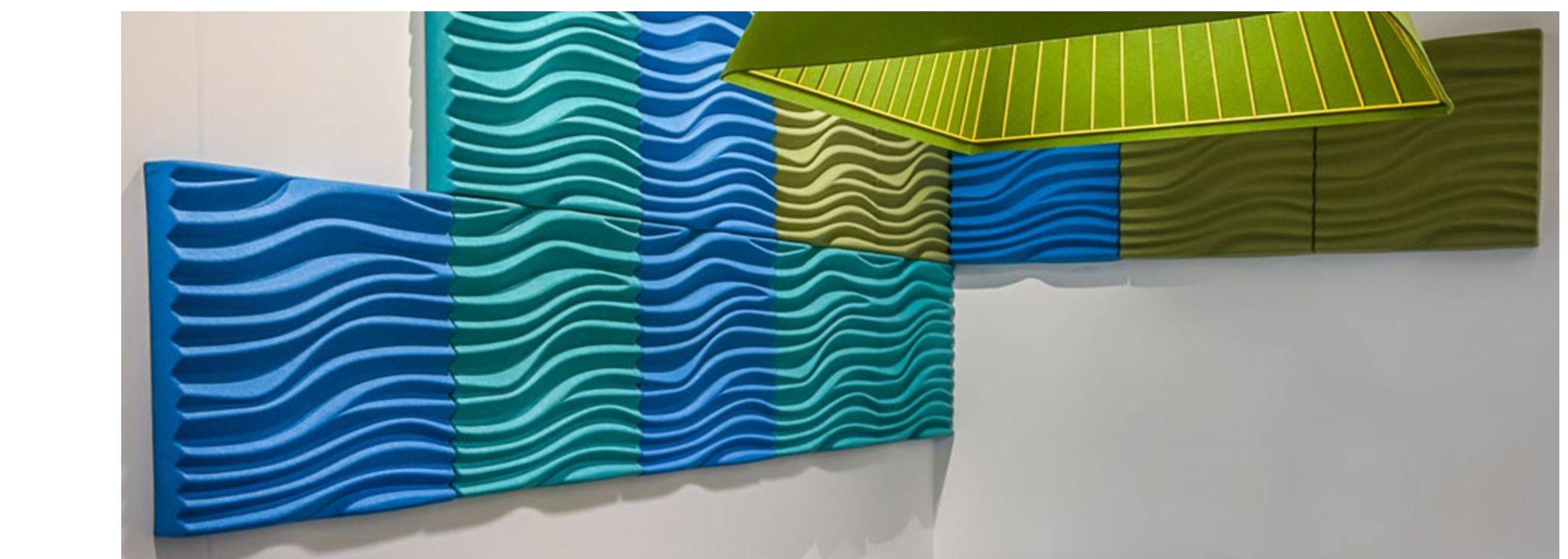

Fluid and intriguing with its deep undulating curves and dips, Wave brings movement and life to walls, making it a true feature in any room. The depth of panel is designed to give it a high absorption of sound resulting in a super-efficient 1.00 NRC. Made from 100% polyester, with over 50% recycled content. The panels can also be recycled making them an incredible environmentally friendly product.
Features and benefits:
10-12 weeks sea shipment
2-3 air freight
Color | Black Blue Green Grey Red |
Finish | Textured |
Material | Polyester fibre (PET) |
Shape | Square |
Length | 600 mm |
Width | 600 mm |
Height | 75 mm |
Warranty description | Ten year |
Uniclass | |
CAWS | K13/170 Acoustic panel lining K13/170 Acoustic panel lining |
Panelling | |
Type | Individual panels. |
Surface material | Polyester. |
Surface finish | Profiled. |
Fasteners | Corner brackets.Four corner brackets.Two panel brackets. |
Size: | 600 x 600 x 75 mm. |
MoistureContent | Polyester fibre when exposed to an atmosphere of 50°C at 90% relative humidity for four days showed moisture absorption of less than 0.03% by weight. Polyester is not affected by moisture. |
FireRating | BS1 DO. Suitable for use in Class1 and Class 0. |
Acoustic performance | To EN ISO 11654: NRC: 1.0. |
Colour fastness | Colourfastness to Light, AATCC16(3), Class 4.5. |
Colour: | Amethyst. Ash. Charcoal. Citrine. Claret. |
Contains Red List materials | No |
Country of material origin | China |
Country of product manufacture | Hong Kong |
Material | Polyester fibre (PET) |
Recyclability | 100% |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 70 % |
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
Platform | Compatible | Version |
---|---|---|
- | 1 | |
- | 1 |
