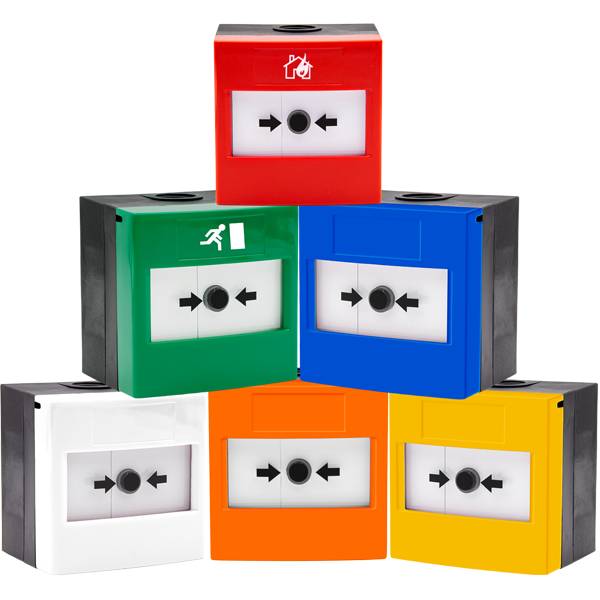

Waterproof ReSet Call Points
Verified by manufacturer 6 months ago
Red model
Red model
Intertek
Certificate type
A call point that mimics the feel of breaking glass, with a re-settable operating element.
Application
- Specially designed for use within harsh environments such as oil rigs, ships, factories, as well as wash down areas that are sensitive to broken glass.
- Safe to use in areas where glass cannot be used such as food processing plants and leisure centres.
- A particularly suitable solution for areas that suffer from a high number of false activations such as schools, shopping centres and other public places.
Description
The Waterproof ReSet Call Points are a call point that mimic the feel of breaking glass whilst offering the user the benefits and environmental advantages of a re-settable operating element. They are compatible with most conventional fire alarm systems.
Features and benefits:
- Three year guarantee against breakage of polycarbonate in normal use (one year guarantee on electromechanical and electronic components).
- An indicator drops into view at the top of the window on activation. The unit is then simply reset with a key and is ready for re-use straight away.
- Waterproof models are tested to IP67.
General information
Color | Red Green Yellow Blue White |
Material | Polycarbonate |
Shape | Square |
Width | 89 mm |
Height | 90 mm |
Warranty description | Three year Guidance for specification option: Three year guarantee against breakage of polycarbonate in normal use. One year Guidance for specification option: One year guarantee on electromechanical and electronic components. |
Uniclass | |
CAWS | W90/336 Manual call points W90/120 Fire detection and alarm system |
Specification data - Manual call points
Classification data | |
Standard | To EN 54-11. |
Frangible element | Resettable. |
Environmental category | Outdoor. Indoor. |
Mounting | Surface. |
Protective covers | Not required. Integral Cover. Universal Stopper® - Surface mount. Weather Stopper II® - Surface mount. |
Housing colour | Red. |
Electrical | Conventional Fire Model (470 680Ω). Double Pole Changeover. Manufacturer guidanceElectrical Arrangement Options: |
Label | Manufacturer's standard. Custom. Guidance for specification option: Maximum two lines. Ten characters per line including spaces. Manufacturer guidanceRed and green models come with a graphic symbol as standard. |
Accessories | RP-K/10 Reset Key (pack of 10). |
Ingress protection (IP) rating | IP67. |
Sustainability data
Material | Polycarbonate |
Manufacturing plant location |
Product certifications
Intertek
103713051LHD-001 VOC STI Call Point 30Nov18
Literature
Literature type
STI Waterproof ReSet Call Points
STI EMEA Product Catalogue 0123
