WallPlanter® Living Wall

Verified by manufacturer 4 months ago

Mobilane

Green wall, consisting of green screens in planters.

Jump to:
BOS
+44 (0) 203 741 8049 Website

Application

  • Existing buildings.
  • New constructions.
  • Facades.
  • Multi-storey carparks.
  • Hotels.
  • Office buildings.

Description

Green wall, consisting of green screens being placed into specially developed aluminium planters that are fixed to a wall, giving buildings a natural look.


Features and benefits:

  • Sustainable.
  • Each plant container is provided with water and nutrients through an irrigation system.
  • Drainage outlets are included to prevent water build-up and to allow oxygen to reach the plant roots.
  • Equipped with automation technology.
  • Low water usage.
  • Non-flammable.
  • Planters have an insulated layer on all sides.
  • Provides increased greenery in urban areas.
  • Minimal maintenance required.
  • Contributes to the reduction of CO2 emissions and fine dust, and helps to improve air quality through the removal of PM10 pollution particles in city environments.
  • Noise-reducing properties.
  • Can enhance property value.
  • Helps to prevent graffiti.
  • Contributes to biodiversity.
  • Long lifespan.
  • The high-quality frames are exchangeable if required.

Containers:

Hanging plant containers.

Container fill:

Irrigation system. Drainage outlets included.

General information

Color

Green

Other

Finish

Other

Material

Vegetation

Shape

Other

Length

Bespoke

Width

Bespoke

Height

Bespoke

Warranty description

Two year

Uniclass

Ss_45_40_28_25 External planter systemsPrimary

CAWS

Q31/292 Prefabricated plant containers

Specification data - External planter systems

Dimensions

Guidance for specification option:

Bespoke. Consult manufacturer and insert requirements.

Liner

Insulated layer on all sides.

System accessories

Guidance for specification option:

Consult manufacturer and insert requirements or omit.

Weight

Empty: 1250 kg; Saturated 1450 kg.

Guidance for specification option:

Base element.

Height

650 mm.

Guidance for specification option:

Base.

Sustainability data

Contains Red List materials

No

Country of material origin

Netherlands

Country of product manufacture

Netherlands

Recyclability

100%

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

100 %

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
Revit
-

1

IFC
-

1

Literature

Architect Folder - WallPlanter

Architect Folder - WallPlanter

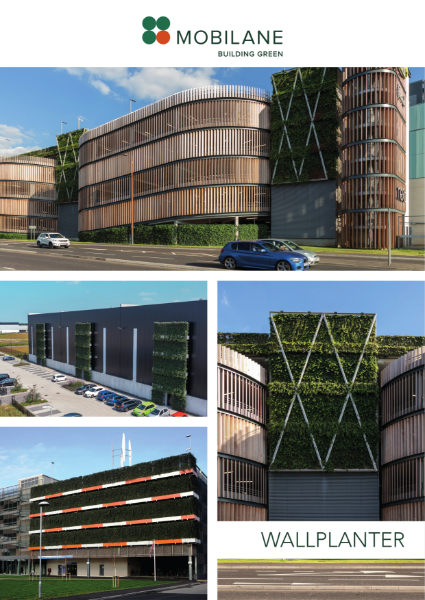

Mobilane WallPlanter Factsheet

Mobilane WallPlanter Factsheet

Mobilane Corporate Brochure

Mobilane Corporate Brochure

Case studies

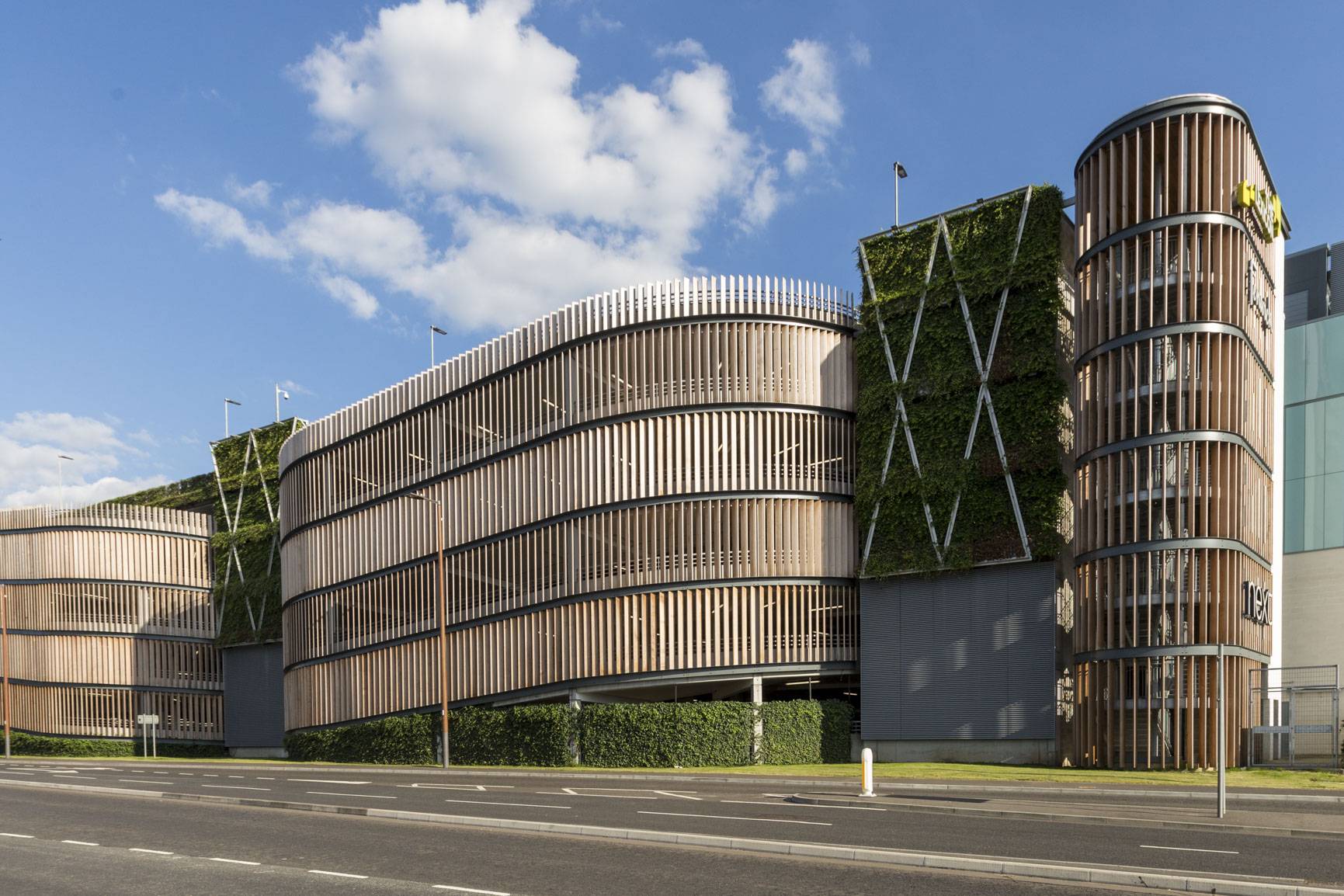

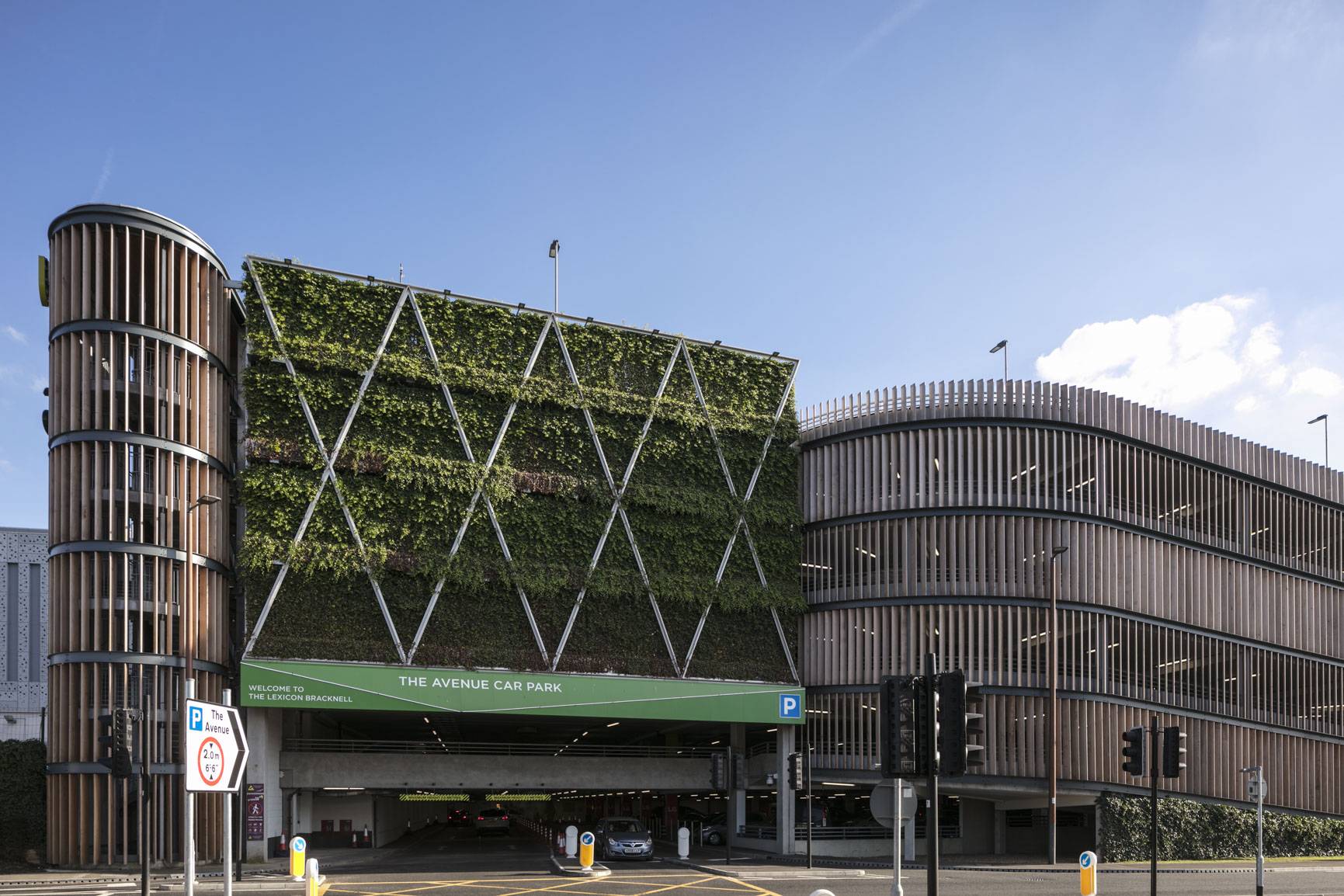

The biggest WallPlanter in the UK: Bracknell Town Centre Regeneration

The biggest WallPlanter in the UK: Bracknell Town Centre Regeneration
