Wallform 313 ICF System

Description

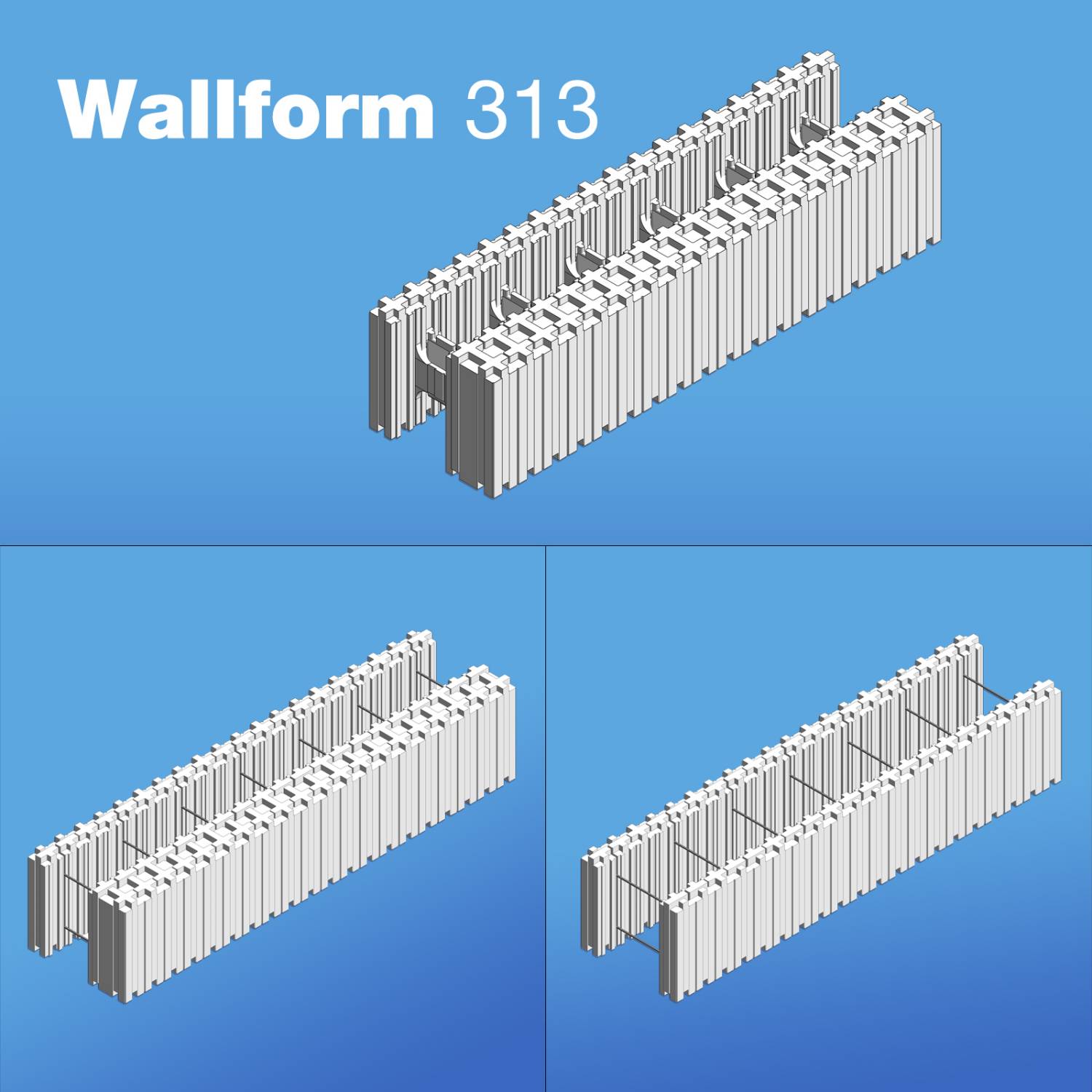

BecoWallform 313 ICF System

System Details:

  • Standard Wallform 313 wallblock is 1125mm long
  • U-value of standard 313 wallblock is 0.18 W/m²K
  • All standard wallblocks are 250mm high
  • Standard system configuration:
    – inner panel width is 55mm
    – concrete core width is 140mm
    – outer panel width is 117.5mm
  • Height adjusters are 62.5mm high
  • Curved wallblocks can be prefabricated to practically any curvature
  • Lintels are manufactured to suit opening sizes

Digital objects

Platform Compatible Version Certified to
Revit
-

4

2.1
IFC
-

4

2.1
Download now from NBS National BIM Library
