Wade (YA Series) Non-Freeze Water Point
Verified by manufacturer 1 month ago
YA101
YA101
UKAS
Certificate type
A non-freeze external water point.
Application
Suitable for external water source applications, such as:
- Plant watering.
- Area cleaning.
- Vehicle wash down.
Description

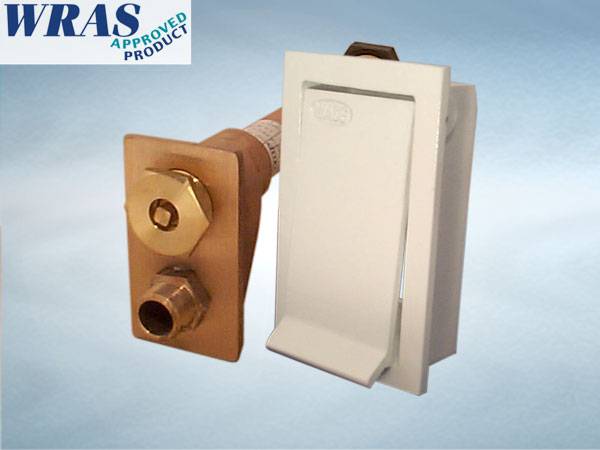

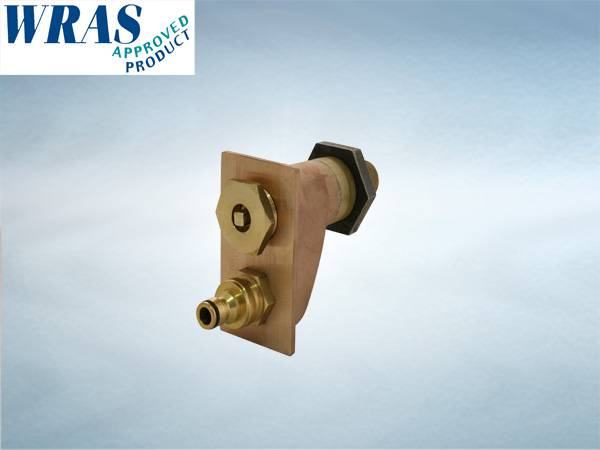

The Wade non-freeze water point provides an external water source for plant watering, area cleaning, vehicle wash down and similar activities. The product is designed to be installed with the valve seal located inside a building, whilst the on/ off control mechanism and hose connections are outside. When the valve is turned off, water drains out from the unit so that freezing cannot occur. Made to suit a given wall thickness, the product can be supplied with a wall box with optional locking cover to deter unauthorized access. The Wade non-freeze water point is a UK Water Byelaws Scheme Approved Product.
General information
Color | Grey Guidance for specification option: Gunmetal. |
Finish | Satin Guidance for specification option: Gunmetal – satin finish. |
Material | Metal Guidance for specification option: Gunmetal. Steel |
Shape | Other |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Uniclass | |
CAWS | S14/383 Stop valves and draw-off taps for above-ground use |
Product range |
Specification data - Copper alloy service stop valves
Standard | To BS EN 1982. |
Material | Gunmetal – satin. |
AccessCoverMaterial | Without wall box. |
Accessories | Not required. Guidance for specification option: Standard: Hinged cover. Locking cover. |
Third party certifications
UKAS
ISO 9001 - Halstead Site
Literature
Wade Non Freeze Water Points
