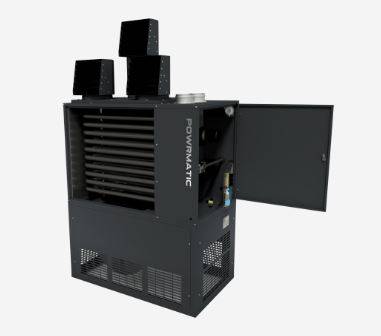

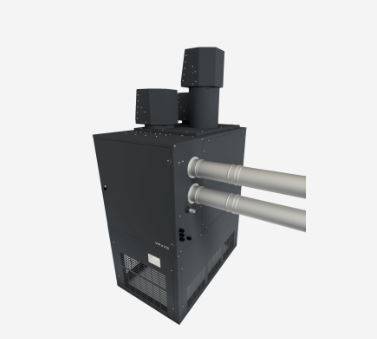

VX Power Vented Gas Cabinet Heater
Verified by manufacturer 5 months ago
VX 35 UF /UD
VX 35 UF /UD
BSI Kitemark
Certificate type
ISO 9001 Quality Management
Certificate type
A range of cabinet heaters for industrial and commercial properties.
Application
Warm air heating for industrial and commercial properties including:
- Warehouses.
- Factories.
- Garage workshops.
- Distribution/ logistic centres.
Description
The VX range of cabinet heaters benefits from the same design as the VPx range in its entire construction. With six models in a range between 35 kW to 140 kW VX heaters can be configured for either room sealed or flue only operation and specified for either vertical or horizontal installation. The VX is designed to offer ErP complaint NOx emissions and seasonal efficiencies which provides a cost effective solution for a wide variety of applications.
Features and benefits:
- Reduced NOx and running costs.
- British built.
- ErP compliant.
- Durable and compact design.
- Stealth RAL 7015 as standard.
- Range of sizes and kW.
General information
Color | Grey |
Finish | Epoxy |
Material | Stainless steel |
Shape | Rectangle |
Length | 1325 mm 1950 mm |
Width | 819 mm |
Height | 2184 mm 2286 mm 2381 mm 2607 mm 2722 mm |
Warranty description | Two year Guidance for specification option: Parts and labour. Ten year Guidance for specification option: Heat exchanger warranty. |
Uniclass | |
CAWS | T90/110 Heating system T90/110 Heating system |
Specification data - Cabinet indirect heaters
Standard | To BS 6230. |
Third party certification | ErP compliant. |
Output | 16.1–33.5 kW (Natural gas). |
Air volume | 1.11 m³/s. |
Arrangement | Horizontal.Vertical. |
Position | Internal. |
Outlets | Upright free blowing unit.Upright ducted unit. |
Fuel | Natural gas.LPG. |
Flues and chimneys | 100 x 12000 mm (Flue only).100 x 6000 mm (Room sealed).Manufacturer guidanceDiameter x length. |
Accessories | Not required.Side/ read inletspigot.Side/ rear filters.Side/ rear dampers. |
Input | 16.8–35.8 kW (Natural gas). |
Throw | 12 m. |
Heads | 3. |
Dimensions | 2184 x 819 x 1325 mm. Guidance for specification option: H x W x D. |
Electrical supply | 230 V, 1 ph, 50 Hz. |
Overall sound power level | 60 dB(A). |
Inlet pressure | 20 mbar (Natural gas). |
Connection | ¾" BSP/RC. |
Weight | 180 kg. |
Sustainability data
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Third party certifications
BSI Kitemark
UKCA Conformity to Type based on Quality Assurance
ISO 9001 Quality Management
ISO 9001 - FM 00414
