Application

Suitable for use in heating and cooling installations. Especially suitable for in repair or renovation projects.

See manufacturer's literature for detailed information regarding pipe suitability for these fittings and other technical data.

Description

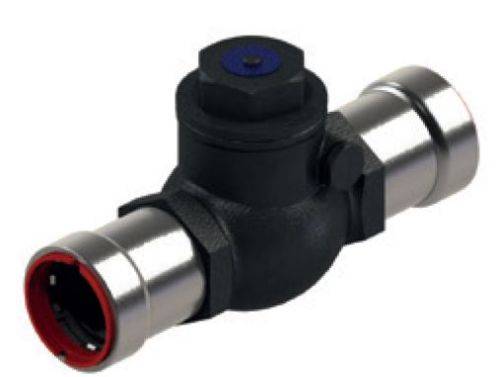

Swing check valves, for use with VSH PowerPress® fittings.

Features and benefits:

  • Corrosion resistant.
  • Includes visual press indicators.
  • Suitable for non-potable water applications.
  • Includes socket transport protection.
  • Bronze metal seated.
  • Compatible with horizontal and vertical fixing, indicated by flow directional arrow.

Applications:

Suitable for use in heating and cooling installations. Especially suitable for in repair or renovation projects.

See manufacturer's literature for detailed information regarding pipe suitability for these fittings and other technical data.

General information
Material

Valve: Bronze

Valve adaptor: Carbon steel zinc, nickel plated

PowerPress® 'O' ring: Ethylene propylene diene monomer (EPDM)

Spacer ring and grab ring: Stainless steel

Visu-Control® ring and protection cap: Polypropylene

Vent: DZR brass

Uniclass 2015
Pr_65_54_95_14 Copper alloy check valvesPrimary
Specification data - Copper alloy check valves
Product Reference

VSH PowerPress® Swing Check Valves

Type

PP1060A Swing Check Valve PN16

Accessories/ Other requirements

A range of tools and other accessories are available, insert requirements from manufacturer's literature.

Standard product features

Material:

  • Valve: Bronze.
  • Valve adaptor: Carbon steel zinc, nickel plated.
  • PowerPress® 'O' ring: Ethylene propylene diene monomer (EPDM).
  • Spacer ring and grab ring: Stainless steel.
  • Visu-Control® ring and protection cap: Polypropylene.
  • Vent: DZR brass.

Maximum pressure:

16 bar.

Operating temperature:

-10°C to +135°C.

Product Options

Type:

Available in ½", ¾", 1", 1¼", 1½" or 2". Consult manufacturer's literature for further information on each type.
