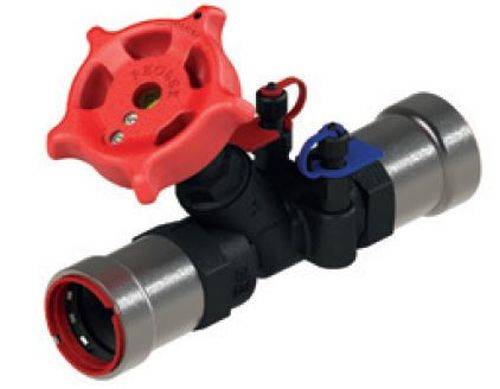

VSH PowerPress® Static Commissioning Valves

Application

  • Suitable for use in heating and cooling installations, especially suitable for repair or renovation projects.
  • See manufacturer's literature for detailed information regarding pipe suitability for these fittings and other technical data.

Description

Static commissioning/ balancing valves for use with VSH PowerPress® fittings featuring a maximum pressure of 16 bar and an operating temperature of -10°C to +135°C.


Features and benefits:

  • Corrosion resistant.
  • Visual press/ union indicators, dependent on variant specified.
  • Includes socket transport protection.
  • Suitable for non-potable water applications.
  • For use with PowerPress® pipe fittings.
  • Provides regulation, isolation and flow measurement.
  • Includes test points and memory stop (fixed orifice variants).
  • Easy turn grip handle with handle position indicator (fixed orifice variants).
  • Setting scale is precise and easy to read, and provides easy identification of open or isolated positions (venturi variants).

General information

Material

Carbon steel, zinc nickel plated

PowerPress® adaptor

Ethylene propylene diene monomer (EPDM)

PowerPress® 'O' ring

Stainless steel

Spacer ring, grab ring and Visu-Control® ring

Polypropylene

Protection cap

Carbon steel, zinc nickel plated

Union connections (where specified)

Size

Consult manufacturer's literature for further information on each type.

½"

¾"

1"

1¼"

1½"

Show more

Uniclass 2015

Pr_65_54_95_25 Differential pressure control valvesPrimary

CAWS

S90/110 Mains cold water supply

S90/120 Storage cold water supply

S90/130 Instantaneous hot water supply

S90/140 Direct hot water storage supply

S90/150 Indirect hot water storage supply

S90/160 Rainwater/ greywater recycling system

Specification data - Differential pressure control valves Enhanced data

Product Reference

VSH PowerPress® Static Commissioning Valves

Type

PP1260 Static Balancing Valve PN16.

With fixed orifice.

PP900 Static Balancing Valve PN16.

With venturi nozzle.

PPSU1260 Static Balancing Valve PN16.

With union connection and fixed orifice.

PPSU900 Static Balancing Valve PN16.

With union connection and venturi nozzle.

Accessories/ Other requirements

A range of tools and other accessories are available, insert requirements from manufacturer's literature.
