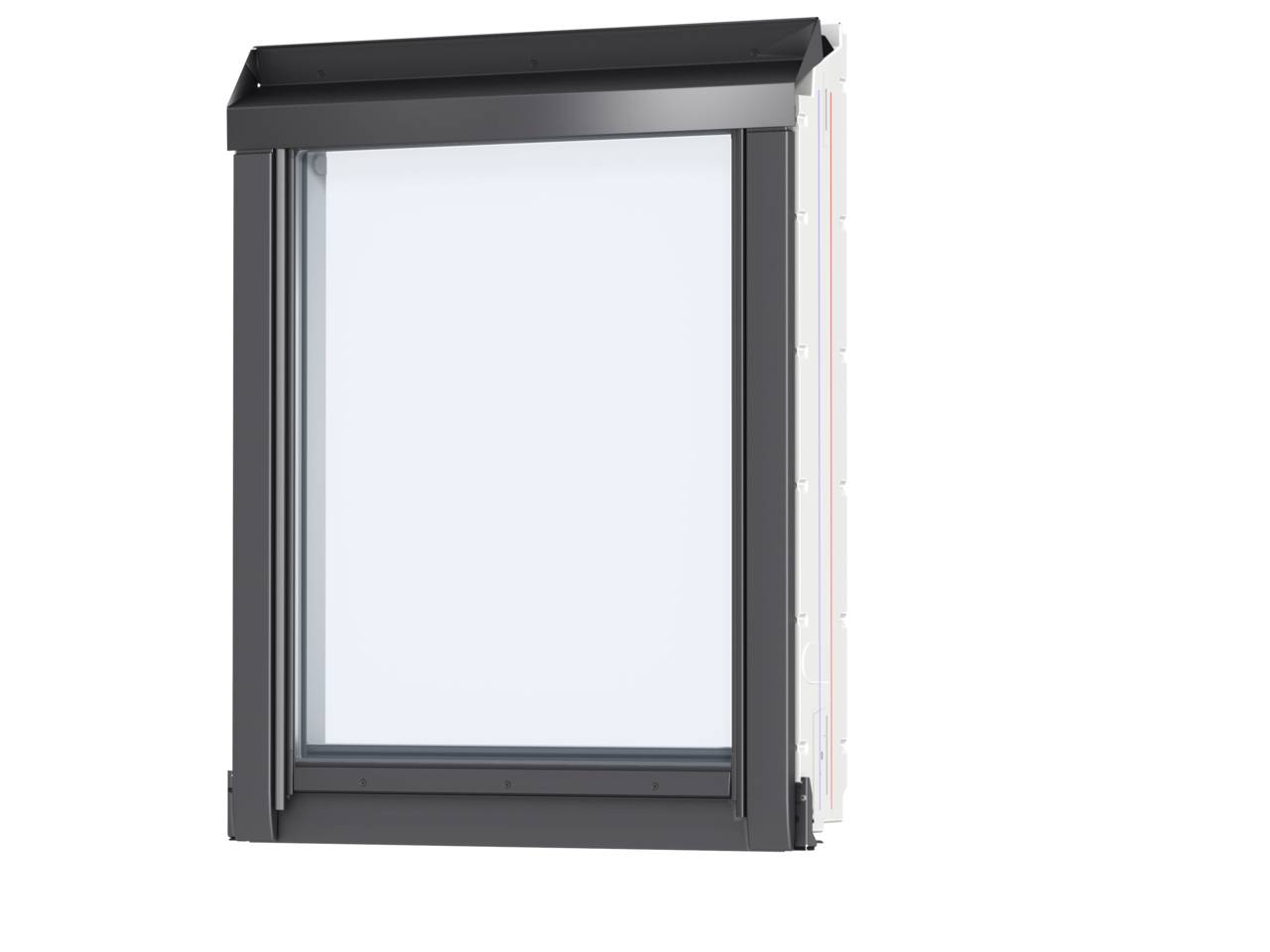

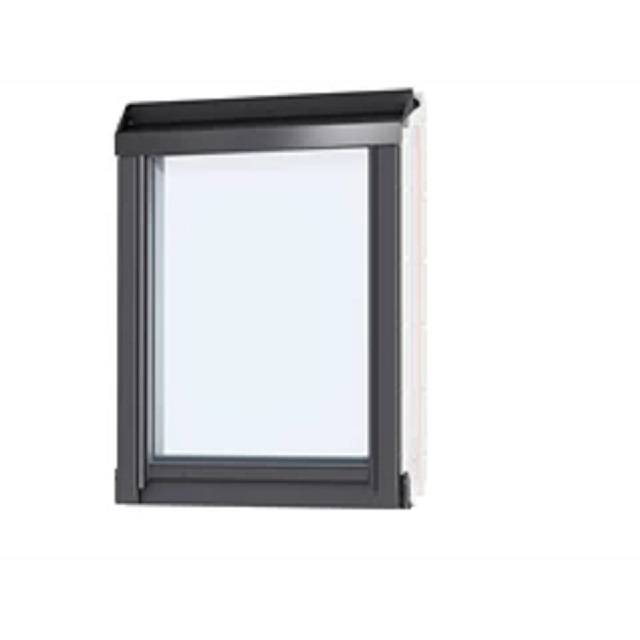

VIU Fixed Additional Vertical Element

Verified by manufacturer 5 months ago

VELUX Company Ltd Third party certifications:
  • EPD

    EPD

    Certificate type

Fixed additional vertical window element in white polyurethane. Suitable for roof pitches from 15-55°.

Jump to:
BOS
+44 (0)1592 778873 Website

Application

For roof pitches from 15–55°.

Description

Features and benefits:

  • A fixed vertical window element VIU which is installed vertically directly below a VELUX roof window.
  • The non-opening window features an insulating glass unit with safety glass.
  • High quality moulded polyurethane with white lacquer finish.
  • Also includes maintenance-free interior surface and exterior covers.

General information

Color

White

Guidance for specification option:

Internal frame and sash is in a white polyurethane – Code 0, external cladding in grey aluminium; colour reference NCS S-7500-N - Code 0.

Grey

Finish

Lacquered

Material

Timber

Guidance for specification option:

Timber core

Polyurethane

Guidance for specification option:

Polyurethane coated frames

Aluminium

Guidance for specification option:

Aluminium cladding.

Glass

Width

780 mm

942 mm

1140 mm

1340 mm

Height

601 mm

955 mm

1155 mm

1375 mm

Warranty description

Ten year

Uniclass

Pr_30_59_98_72 Rigid polyurethane frame roof window unitsPrimary

CAWS

L10/480 Roof windows

Specification data - Rigid polyurethane frame roof window units

Product performance

-

Whole window U-value

1.0–1.3 W/m²K.

Guidance for specification option:

Depending on product option.

Glazing or infill

-

Composition

Argon filled cavity.

Operation

-

Type

Fixed.

Accessories

Awning blind.

Blackout blinds.

Bracket, grey.

Guidance for specification option:

For accessories.

Bracket, white.

Guidance for specification option:

For accessories.

Light dimming energy blind.

Pleated blind.

Roller blind.

Execution

Fixing of plastics frames.

Internal frame and sash

White polyurethane.

External cladding

Grey aluminium; colour reference NCS S-7500-N.

Guidance for specification option:

Code 0

Sustainability data

Contains Red List materials

Yes

Country of material origin

Europe

Country of product manufacture

Europe

Material

Timber

Guidance for specification option:

Timber core

Polyurethane

Guidance for specification option:

Polyurethane coated frames

Aluminium

Guidance for specification option:

Aluminium cladding.

Glass

Embodied carbon

A1-A3 (production stage) as defined in BS EN 15804

2.7 kg CO₂ eq/unit

Recyclability

Yes

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

12 %

Expected Life

30 year

Third party certifications

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
Revit
-

2

Third party certifications

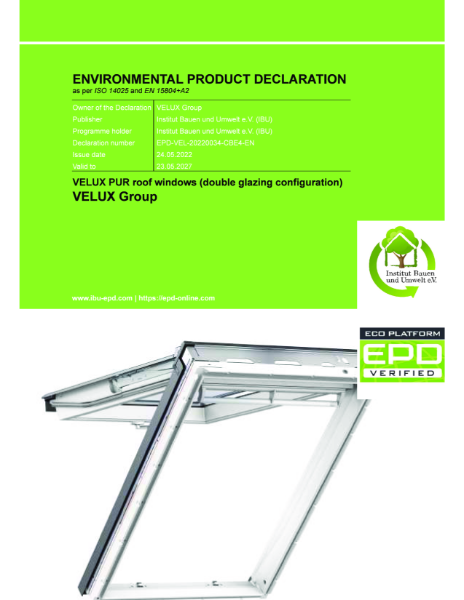

EPD

EPD

EPD 3 Layer

EPD

EPD

PUR EDP 2 layer

Similar products from VELUX Company Ltd

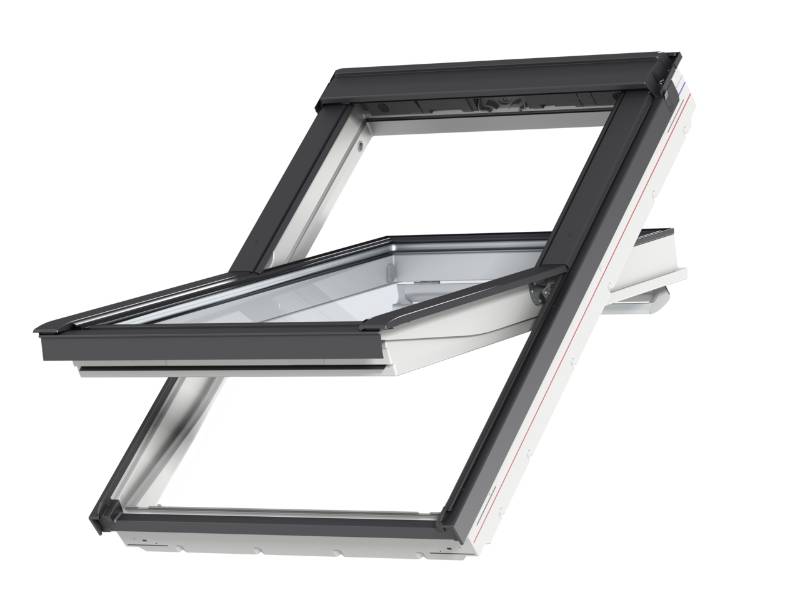

GGU Centre-Pivot Roof Window

GGU Centre-Pivot Roof Window

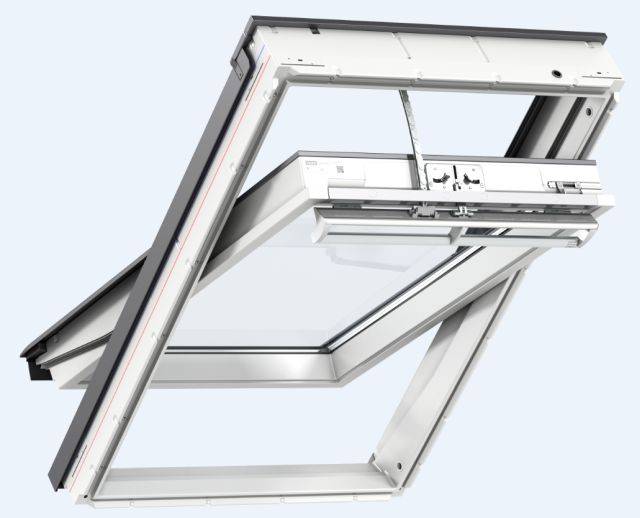

GGU Electric/ Solar Centre-Pivot Roof Window

GGU Electric/ Solar Centre-Pivot Roof Window

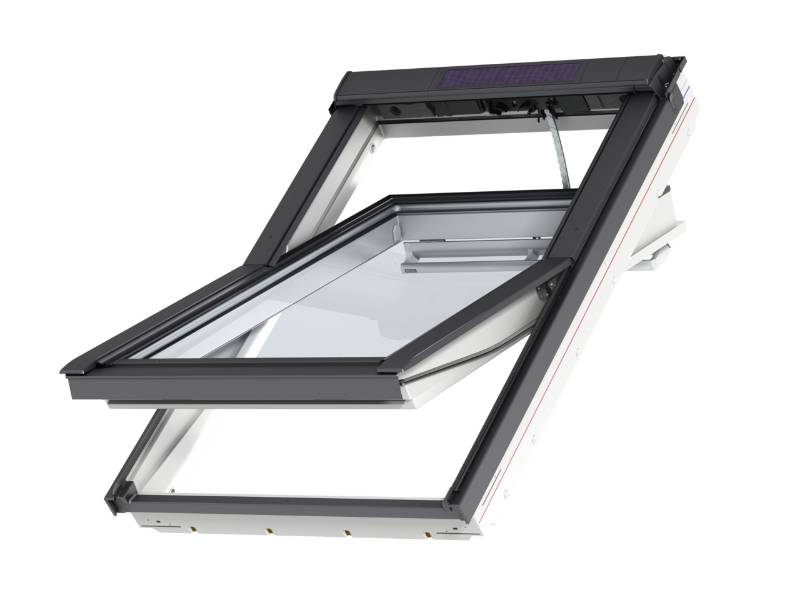

GGU Solar Powered, White Polyurethane, Centre-Pivot Roof Window

GGU Solar Powered, White Polyurethane, Centre-Pivot Roof Window

GIU Fixed Sloped Additional Lower Element

GIU Fixed Sloped Additional Lower Element

GPU Electrically Operated Top-Hung Roof Window

GPU Electrically Operated Top-Hung Roof Window

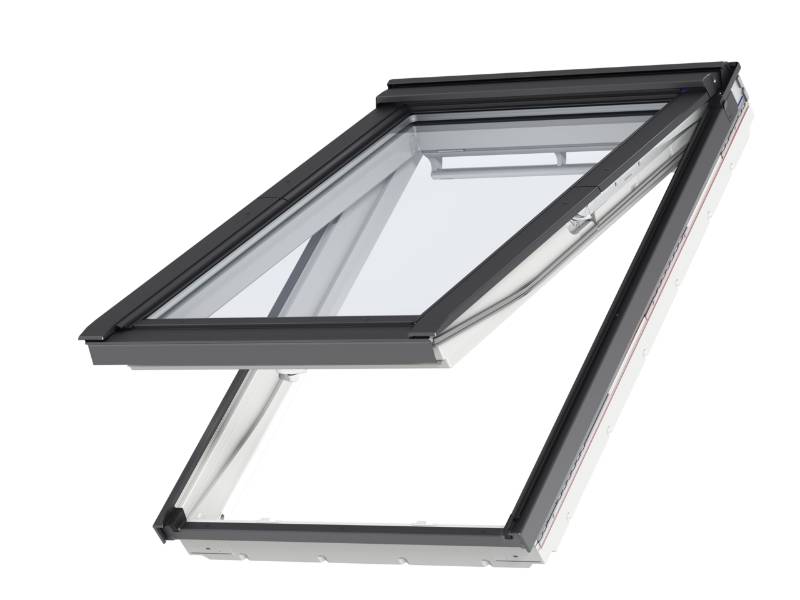

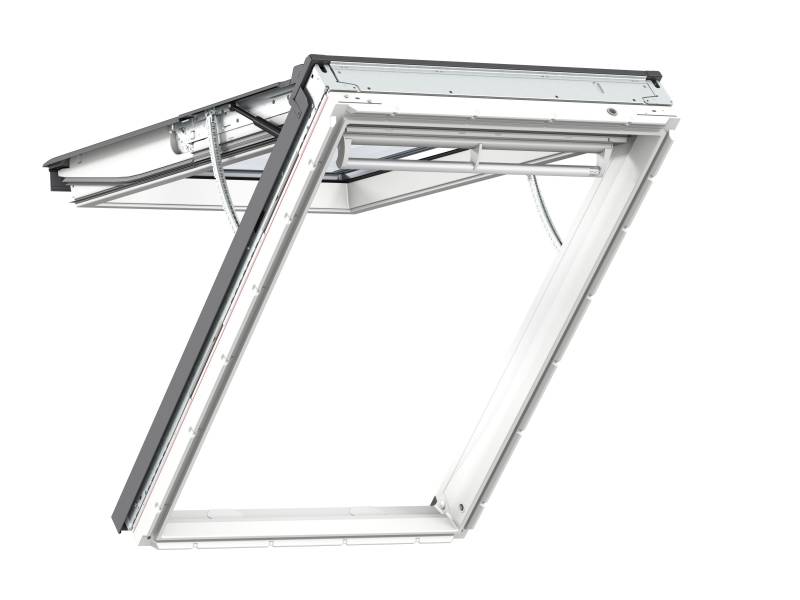

GPU Top-Hung Roof Window
