This product is no longer available

Visqueen Zedex Bitumen DPC

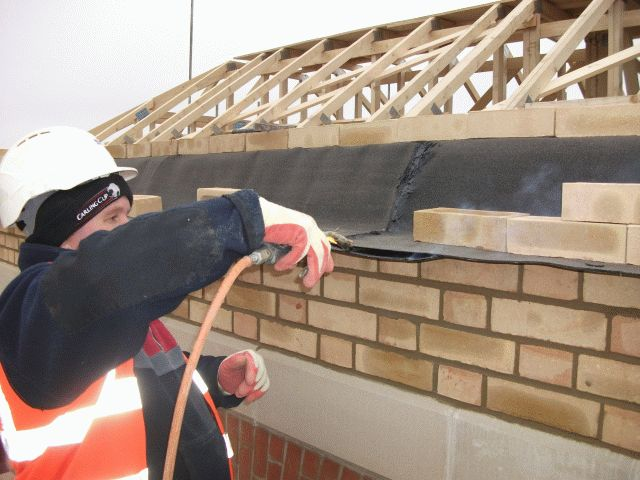

Visqueen Zedex Bitumen DPC is a very robust, pliable damp-proof course incorporating an upgraded polyester base, saturated and coated in high penetration grade bitumen and finished with fine silica sand. It is a heavy duty DPC suitable for general cavity tray applications including parapet walls, beneath copings and capping applications, and complex detailing work at ground level. Visqueen Zedex Bitumen DPC can be torch bonded to masonry units and all laps are homogenously sealed during the torch bonding process.


  • Superior performance in low compressive load applications.
  • Excellent mortar adhesion properties.
  • Installation options including hot bonding.
  • Contains no pitch or plasticisers.


Visqueen Zedex Bitumen DPC can be used horizontally at door and window jambs, over lintels, vertically bonded to the cavity face of the inner leaf to facilitate requirements for level access and wherever a flexible and adaptable damp proof course and cavity tray system is required.


Visqueen Zedex Bitumen DPC exceeds the minimum standard set by BS 6398:1983 Type A.

General information

Superior performance in low compressive load applications

Excellent mortar adhesion properties

Installation options including hot bonding

Contains no pitch or plasticisers

Uniclass 2015
Pr_25_57_21_12 Cavity closer and damp-proof course supportsPrimary
Specification data - Cavity closer and damp-proof course supports
Product Reference

Visqueen Zedex Bitumen DPC


Detailing Strip

Self adhesive strip for forming complex shapes and junctions.

DPC Jointing Tape

High performance tanking primer

Surface Fixing System

Standard product features


8 m rolls.


2 mm.


3.8 kg/m².
