Single Open In

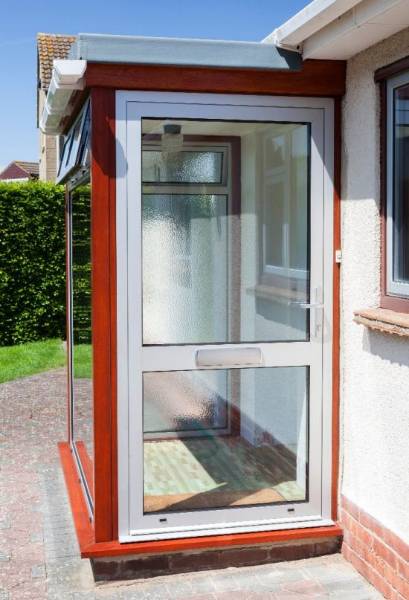

Open-in or open-out, single or double aluminium doors.
Suitable for both new build and refurbishment commercial and residential projects, where optimum performance and
outstanding thermal performance are specified.
The new high-quality, high-performance Visotherm window and door ranges have been introduced to enhance Smart’s established systems portfolio, with the range having been developed to provide optimal levels of thermal performance using double or triple glazed sealed units.
Visotherm is manufactured by Smart in Britain and the doors are also available with an extensive selection of colour, glazing and hardware options to provide the perfect
finishing touches.
Visotherm doors are a perfect complement to the
window range. Available with open-in and open-out options, the system provides excellent thermal and weather performance.
With PAS 24:2016 accreditation as standard, Visotherm doors’ security options include a choice of key wind, lift lever or slam lock multipoint locks to provide a lifetime of assured security.
Features and benefits:
Material | Aluminium |
Shape | Rectangle |
Width | 1200 mm |
Height | 2500 mm |
Uniclass | |
CAWS | L20/55 Doorsets L20/480 Doorsets |
Configuration | Single-leaf, single-action. |
Doorset sizeMaximum size (w x h x frame depth): 1200 x 2500 x 70 mm. Insert requirements. | - |
Performance | - |
Thermal | 1.3-1.4 W/m²K. |
Intruder resistance | - |
Minimum requirement | To PAS 24. |
Frame | - |
Material | Aluminium. |
Door leaf | - |
Glazing | - |
Type | 24 mm.28 mm.32 mm.36 mm.40 mm. |
Finish | - |
External colourSingle or Dual Colour available. Insert requirements. | - |
Internal colourSingle or Dual Colour available. Insert requirements. | - |
Hardware | Key wind lock.Lift lever lock.Slam multipoint lock. |
