Visoglide Plus Patio Doors

Third party certifications:

QA Certificate
Certificate type

High performance aluminium sliding doors for residential and commercial applications.

Jump to:

+44 (0)1934 876100 www.smartsystems.co.uk

Application

Sliding commercial entrances where large opening apertures are required, or as dynamic residential sliding doors that maximize light and provide an unimpeded view.

Description

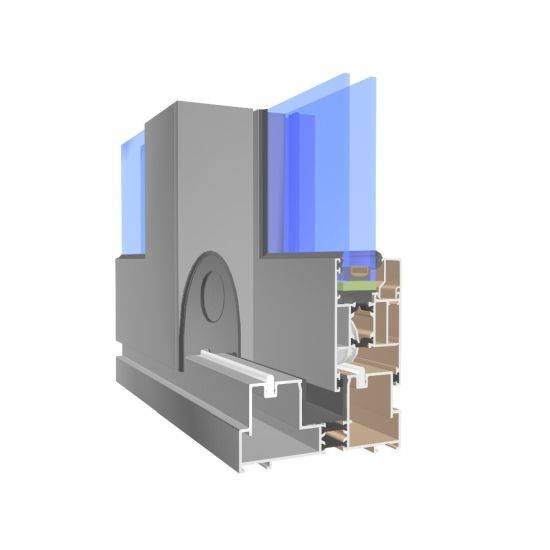

High performance aluminium sliding doors for residential and commercial applications. The profiles are designed to improve both strength and weather resistance. All main sections feature an extended polyamide thermal break that allows Visoglide Plus to achieve a U-value of 1.6 W/m²K when installed with a suitable sealed unit.

The doors are available in both single and dual colour in wide choice of standard and non-standard finishes including Smart’s unique Sensations range of textured colours. The system is also suitable for use with auto slide opening mechanisms.

Features and benefits:

An enhanced system designed to comply with the revisions to the Building Regulations (E&W), Document L compliant.

U-value: 1.6 W/m²K.

Air permeability: Class 3, 600 Pa.

Watertightness: Class 7a, 300 Pa.

Resistance to wind load: Class AE, 2400 Pa.

Inline sliding or lift and slide options available.

Colour matched accessories available.

British Standard Kitemarked system – KM 530838.

Applications:

Sliding commercial entrances where large opening apertures are required, or as dynamic residential sliding doors that maximize light and provide an unimpeded view.

General information

Material	Aluminium
Uniclass 2015	Pr_30_59_24_80 Sliding door and partition setsPrimary

Specification data - Sliding door and partition sets

Product Reference	Visoglide Plus Patio Doors
Third-party certification	British Standard Kitemarked system – KM 530838
Performance	Up to 1.6 W/m²K U-value (when using a 1.0 W/m²K centre pane)
Arrangement	Inline sliding Lift and slide
Door leaves	-
Construction	Manufacturer's standard
Finish and colour	Powder coated, insert single or dual colour requirement from Smart’s unique Sensations range of textured colours.
Operation	Manual Powered
Hardware	Insert requirement, contact manufacturer for information.
Accessories	Insert requirement, contact manufacturer for information.
Size	As drawing Insert reference. As schedule Insert reference.
Configuration	Insert requirement.
Glazing	38 mm double glazed units 38 mm triple glazed units

Standard product features	Material: Aluminium. Maximum sash weight: 250 kg. Frame width: 53 mm. Frame depth: 100 mm. Locking: Multi-point locking. Thermal break: Polyamide thermal break. Security level: PAS24: 2012. Air permeability: Class 3, 600 Pa. Watertightness: Class 7A, 300 Pa. Resistance to wind load: Class AE, 2400 Pa.
Product Options	Doorset size: Sash available up to 2500 mm in height, there is no maximum width.

Third party certifications

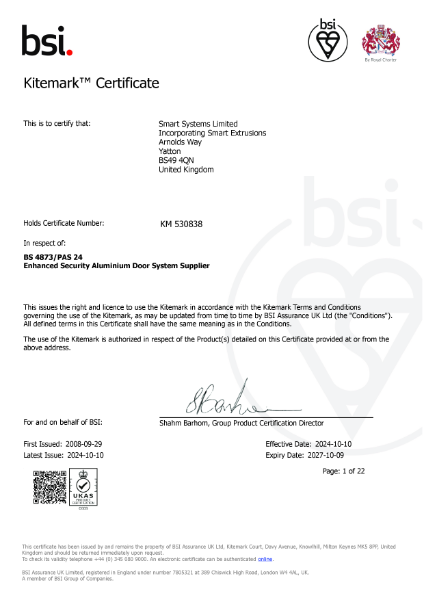

Kitemark: Certificate: KM 530838

Visoglide Plus Patio Doors

Aluminium

Visoglide Plus Patio Doors

British Standard Kitemarked system – KM 530838

Up to 1.6 W/m²K U-value (when using a 1.0 W/m²K centre pane)

Inline sliding

Lift and slide

Manufacturer's standard

Manual

Powered

As drawing

As schedule

38 mm double glazed units

38 mm triple glazed units

Material:Aluminium.Maximum sash weight:250 kg.Frame width:53 mm.Frame depth:100 mm.Locking:Multi-point locking.Thermal break:Polyamide thermal break.Security level:PAS24: 2012.Air permeability:Class 3, 600 Pa.Watertightness:Class 7A, 300 Pa.Resistance to wind load:Class AE, 2400 Pa.

Doorset size:Sash available up to 2500 mm in height, there is no maximum width.

Doorset size:
Sash available up to 2500 mm in height, there is no maximum width.
