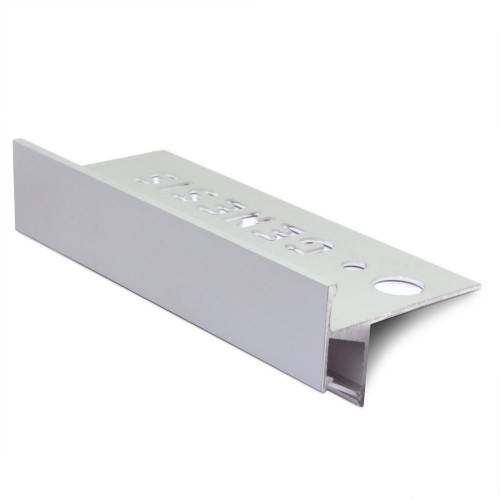

Vision Step NLD - Stair nosing
Verified by manufacturer 6 months ago
Illuminated step edge nosings.
Application
Stair nosing.
Description
NLD is a tile-in step edge incorporating Vision LED, CCT and RGB lighting systems.
Features and benefits:
- Rated IPX4 under IEC standard 60529 - protects from splashing water, no matter the direction.
- Designed to emphasize and accentuate each individual stair, illuminating the riser below to create a stunning stair case.
- Supplied in anodized (81) Matt Silver finish as standard, other finishes are available on request.

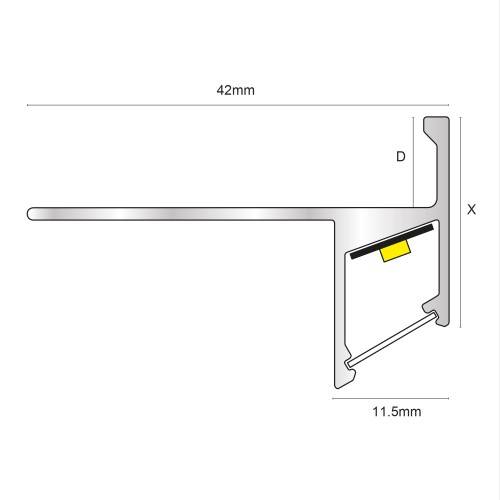

- Standard 2.8 m length and available in depths of 9 and 11 mm.
- Complete with frosted polycarbonate diffuser to ensure optimum light dispersion.
General information
Color | Silver |
Finish | Matt |
Material | Polyvinyl chloride (PVC) |
Shape | Rectangle |
Length | 2800 mm |
Width | 42 mm |
Height | 9 mm 11 mm |
Uniclass | |
CAWS | M51/550 Stair nosings and trims L30/590 Applied stair nosings M50/75 Stair nosings and trims M11/830 Stair nosings/ trim M50/750 Stair nosings and trims |
Specification data - Flexible polyvinyl chloride (PVC) stair nosings
Profile | Square. |
Colour | Anodized (81) Matt Silver.Bespoke.Guidance for specification option: Other colours are available on request. |
Size | |
Rise x going | 9 x 42 mm.11 x 42 mm. |
End cap | NECS50 End Caps - Matt Silver Finish (81). Not required. |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Recyclability | Partially (remove polycarbonate diffuser, recycle Aluminium, dispose of polycarbonate diffuser) |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 50 % |
