Vimec V6R Platform Stairlift

Verified by manufacturer 3 days ago

Gartec Platform Lifts

Economical and space saving platform stair lift providing a popular and versatile access solution for wheelchair users.

Jump to:
+44 (0)1296 397100 Website

Application

Suitable for use on straight stairways for wheelchairs, indoors or outdoors in home or commercial environments. 225 kg load rating for wheelchair user.

Description

Economical and space saving platform stair lift providing a popular and versatile access solution for wheelchair users.

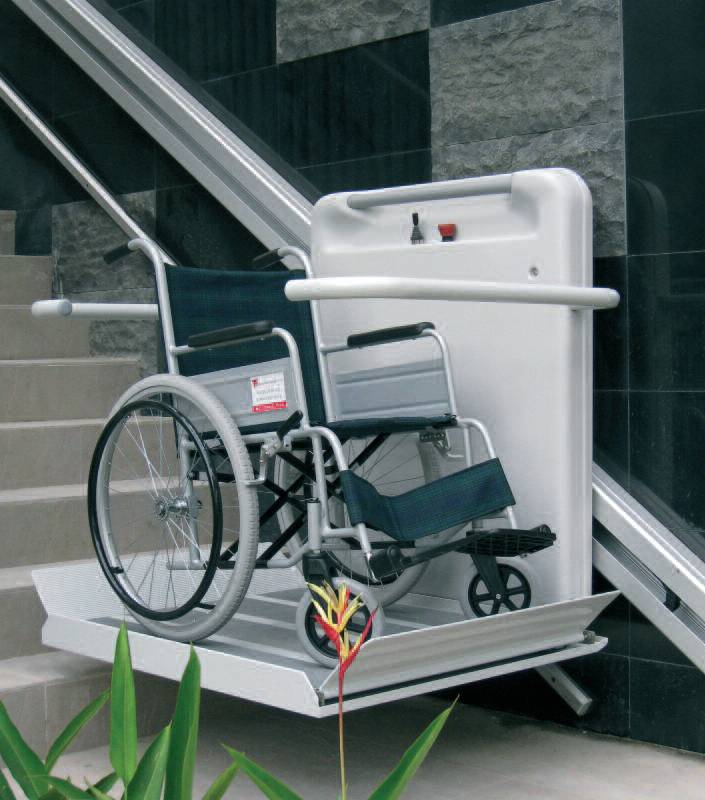

The platform stairlift is similar to a normal stair lift, but with a platform for wheelchairs rather than a seat. The wheelchair user rolls onto the platform, safety bars lower, and a constant pressure joystick, operated by the wheelchair user, controls movement along the staircase.


Alternatively an attendant can call and send the platform stair lift using a ‘wander-lead’. The barrier arms must be fully lowered and ramps on either side of the platform stairlift raised before operation, giving safety and security as a wheelchair stairlift.


Features and benefits:

  • Straight stairways for wheelchairs.
  • Three platform sizes.

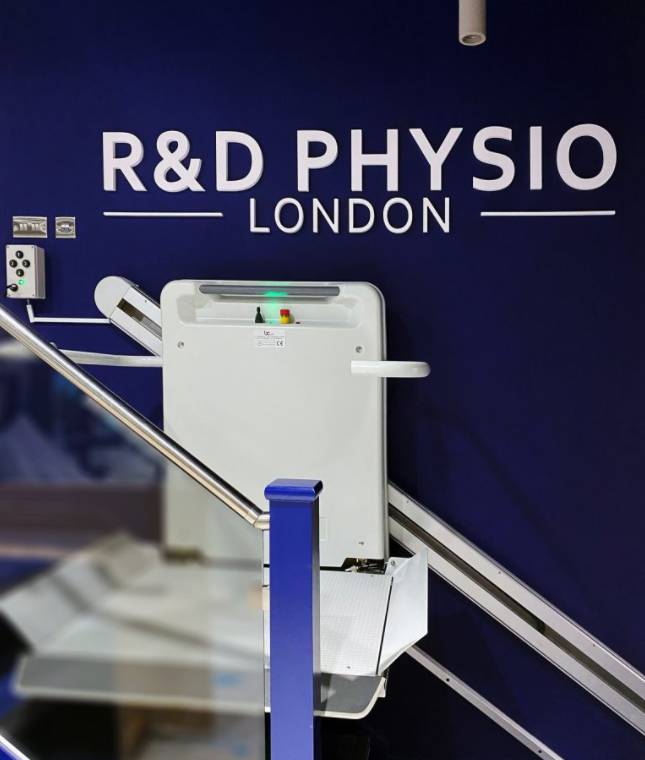

  • Can be folded away when not in use.
  • 225 kg load rating (wheelchair user).
  • Indoor and outdoor use.
  • One-day installation.
  • User or attendant controlled.
  • Safety sensors stop when obstructed.
  • Barrier arms and ramps for safety.

General information

Color

White

Other

Warranty description

One year

Uniclass

Ss_80_50_02_83 Stairlift systemsPrimary

CAWS

X13/350 Wheelchair platform stairlifts

X13/350 Wheelchair platform stairlifts

Specification data - Stairlift systems

System performance

Design of stairlift systems

Approval

Full member of the Lift and Escalator Industry Association

Stairlift format

Inclined wheelchair platform.

Guidance for specification option:

Scissor platform lift (box profile mechanism).

Boarding point control devices

Manufacturer's standard.

Cable containment

Manufacturer's standard.

Design

-

Manufacturer guidance

Insert requirements or drawing reference.

Lift can be adjusted for right- or left-hand fixing.

To be fastened directly to a wall or supported by stanchion posts.

Platform size

750 x 900 mm.

Guidance for specification option:

Standard size.

Overall footprint: 1000 x 1400 mm.

800 x 1000 mm.

Guidance for specification option:

Standard size.

Overall footprint: 1050 x 1500 mm.

800 x 1250 mm.

Guidance for specification option:

Standard size.

Overall footprint: 1050 x 1750 mm.

Bespoke.

Guidance for specification option:

Consult manufacturer for options and insert requirements.

Manufacturer guidance

Folded size: 290 mm.

Colour

White with grey platform treads.

Bespoke.

Guidance for specification option:

Consult manufacturer for options and insert requirements.

Accessories

None.

Fold-down seat.

Attendant control.

Radio remote control.

Load

225 kg.

Guidance for specification option:

For wheelchair user.

Electrical supply

Single phase, 230 V, 50 Hz.

Speed

0.01 m/s.

Motor

Rack and pinion direct drive.
