Description

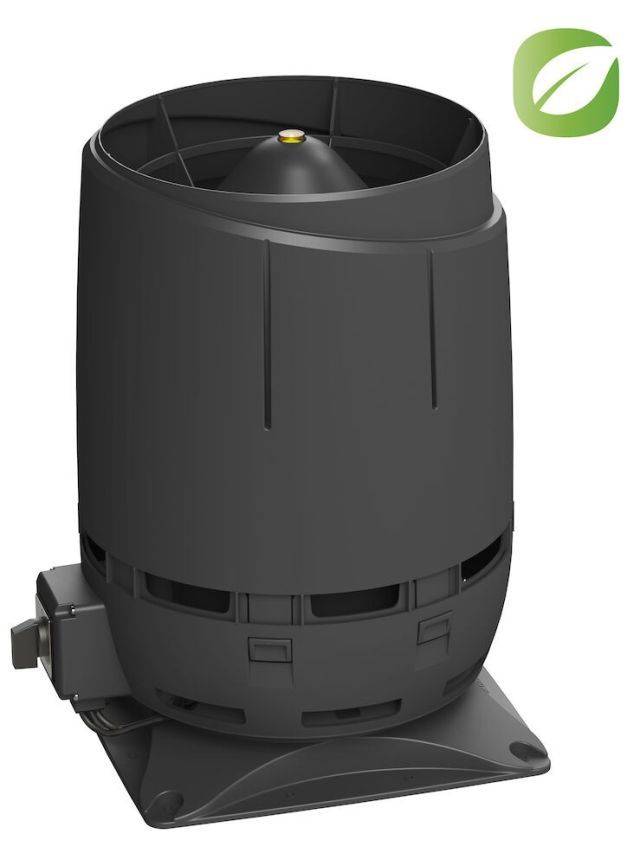

Energy efficient insulated roof fan with a FLOW-cowl, for the top of an air conduit or silencer. It uses a direct current (DC) motor, controlled with a 0–10 V voltage. An installation set for a flat surface is included. VILPE® ECo Controller is available separately.

The FLOW product line has up to 40% less pressure loss when compared to traditional VILPE® products. This reduces the amount of energy used in ventilation and allows for greater air volumes when needed.

General information
Material

Polypropylene (PP) plastic

Size

Duct diameter: 125 mm

Installation set: 300 x 300 mm

Uniclass 2015 Roof-mounted fans (Pr_65_67_29_72)
Specification data
Product Reference

VILPE® ECo125S Flow Roof Fan

Colour

Black - RAL9005

Brick Red - RAL8004

Brown - RAL8019

Green - RAL6020

Grey - RAL7015

Light Grey - RAL7040

Red - RAL3009

Accessories

None

VILPE® ECo Controller

Standard product features

Size:

  • Duct diameter: 125 mm.
  • Installation set: 300 x 300 mm.

Material:

Polypropylene (PP) plastic.

Technical characteristics:

  • Current: 0.75 A.
  • Fan type: DC.
  • Power: 83 W.
  • Rotation speed: 3200 rpm.
  • Voltage: 230 V/ 50 Hz.
