Modern, energy-saving roof fan with a direct current (DC) motor, for installation on a flat surface.
Energy-efficient roof fan with a direct current (DC) motor for the top of an air conduit or silencer, controlled with a 0–10 V voltage. An installation set for a flat surface is included. VILPE® ECo Controller is available separately.
The roof fan can also provide an output signal which can be used to monitor the motor’s rpm. This allows connecting ECo roof fans to an automatically controlled building technology system where they can be monitored and controlled with the system’s central processing unit (CPU).
The fan is based on the EC technology: An electronically commuted fan with a brushless DC motor. ECo roof fans address the challenge of reducing total energy consumption by saving energy, as the DC motor is much more effective than an alternating current (AC) motor. Calculations on the efficiency needed to move air show that a VILPE® ECo roof fan will save up to 40–60% of energy when compared to an AC roof fan, depending on the application.
VILPE® ECo roof fans meet the requirements of the ERP2015 directive.
Applications:
Material | Polypropylene (PP) plastic |
Size | Duct diameter: 125 mm Installation set: 300 x 300 mm |
Uniclass 2015 | |
CAWS | H30/10 Fibre cement H30/110 Fibre cement H30/120 Fibre cement H31/10 Metal H31/110 Metal H31/120 Metal H32/110 GRP H32/111 PVC-U H32/115 Polycarbonate H32/120 Plastics H43/10 Metal insulating sandwich panel H43/120 Metal insulating sandwich panel U90/413 Ventilation fan units U90/42 Ventilation fan units |

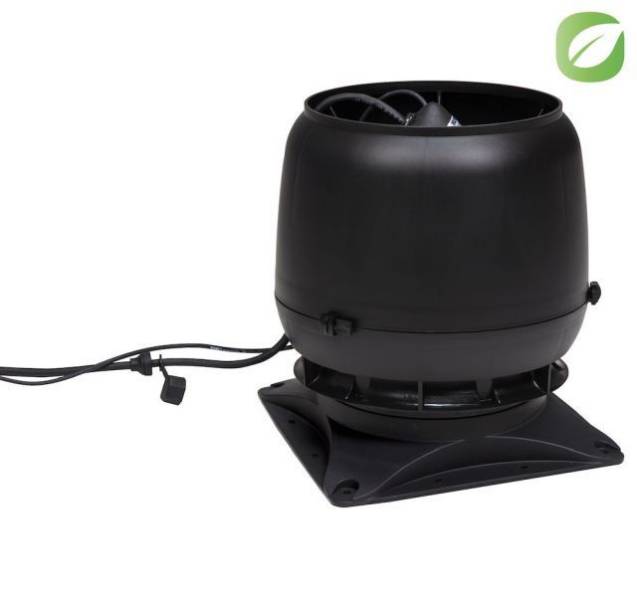

Product Reference | VILPE® Eco190S/Ø125 Roof Fan |
Colour | Black - RAL9005Brick Red - RAL8004Brown - RAL8019Green - RAL6020Grey - RAL7015Light Grey - RAL7040Red - RAL3009 |
Accessories | NoneVILPE® ECo Controller |
Standard product features | Size:
Material: Polypropylene (PP) plastic. Technical characteristics:
|
