VersiRail® Fixed
Fixed aluminium safety guardrail system.
Description

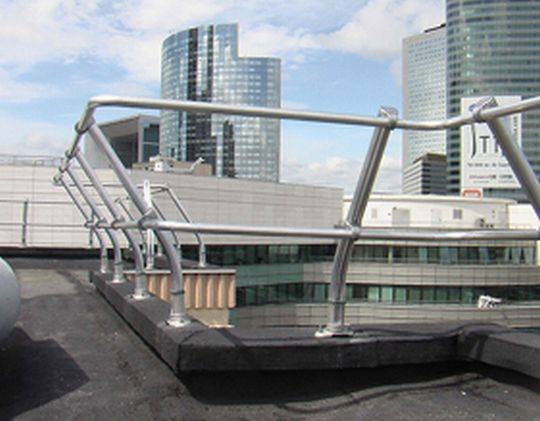

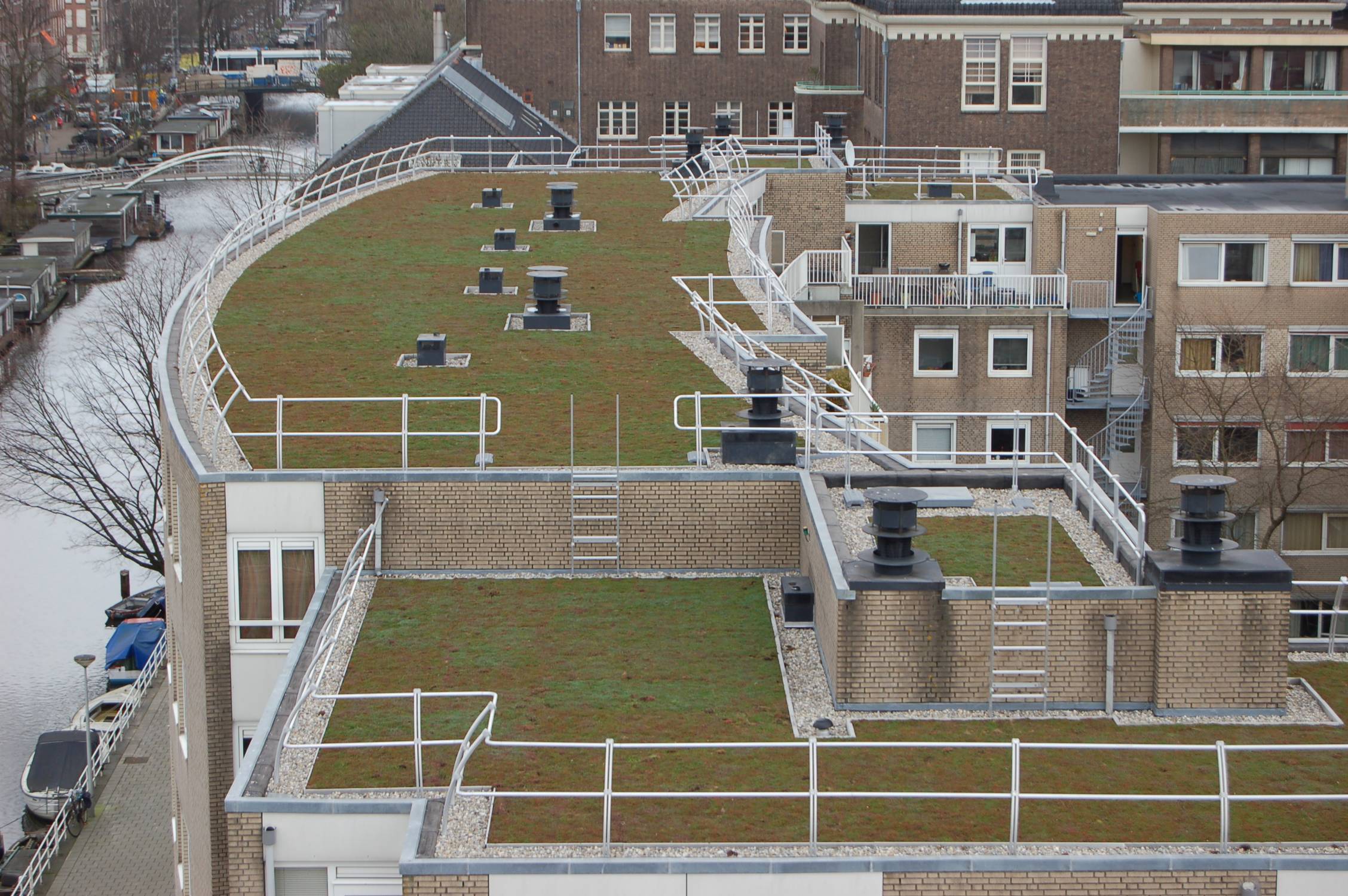

Fixed safety guardrail system for use on new and existing buildings with working platforms, roofs or technical terraces having slopes between 0°and 4° and no public access.
Comprising straight, curved or inclined aluminium uprights, with hand and kneerails, all connected via EZ-FIX clamping system to allow fast assembly and accurate level adjustment. Can be fixed to various roof or platform types; fixing is dictated by whether parapet is present, and weatherproofing methods used on the building.
Complies with requirements of EN 13374 and EN ISO 14122-3, section 8.2, and conforms to European Directive 2001/45/CE.
General information
Uniclass 2015 | |
CAWS | L30/55 Proprietary balustrades L30/560 Proprietary balustrades L35/170 Guarding system |
Specification data - Aluminium handrails
Product Reference | VersiRail® Fixed |
Uprights | 22225-00Curved, 1100 mm high (measured vertically). 22225-00POLCurved, 1100 mm high (measured vertically), polished. 22225-00RALCurved, 1100 mm high (measured vertically), powder coated. 22223-00Curved, 900 mm high (measured vertically). 22223-00POLCurved, 900 mm high (measured vertically), polished. 22223-00RALCurved, 900 mm high (measured vertically), powder coated. 22222-00Curved, 700 mm high (measured vertically). 22222-00POLCurved, 700 mm high (measured vertically), polished. 22222-00RALCurved, 700 mm high (measured vertically), powder coated. 22221-00Curved, 500 mm high (measured vertically). 22221-00POLCurved, 500 mm high (measured vertically), polished. 22221-00RALCurved, 500 mm high (measured vertically), powder coated. 22220-00Curved, 300 mm high (measured vertically). 22220-00POLCurved, 300 mm high (measured vertically), polished. 22220-00RALCurved, 300 mm high (measured vertically), powder coated. 22125-00Inclined, 1100 mm high (measured vertically). 22125-00POLInclined, 1100 mm high (measured vertically), polished. 22125-00RALInclined, 1100 mm high (measured vertically), powder coated. 22123-00Inclined, 900 mm high (measured vertically). 22123-00POLInclined, 900 mm high (measured vertically), polished. 22123-00RALInclined, 900 mm high (measured vertically), powder coated. 22122-00Inclined, 700 mm high (measured vertically). 22122-00POLInclined, 700 mm high (measured vertically), polished. 22122-00RALInclined, 700 mm high (measured vertically), powder coated. 22121-00Inclined, 500 mm high (measured vertically). 22121-00POLInclined, 500 mm high (measured vertically), polished. 22121-00RALInclined, 500 mm high (measured vertically), powder coated. 22120-00Inclined, 300 mm high (measured vertically). 22120-00POLInclined, 300 mm high (measured vertically), polished. 22120-00RALInclined, 300 mm high (measured vertically), powder coated. 22025-00Straight, vertical, 1100 mm high. 22025-00POLStraight, vertical, 1100 mm high, polished. 22025-00RALStraight, vertical, 1100 mm high, powder coated. 22023-00Straight, vertical, 900 mm high. 22023-00POLStraight, vertical, 900 mm high, polished. 222023-00RALStraight, vertical, 900 mm high, powder coated. 2022-00Straight, vertical, 700 mm high. 2022-00POLStraight, vertical, 700 mm high, polished. 2022-00RALStraight, vertical, 700 mm high, powder coated. 22021-00Straight, vertical, 500 mm high. 22021-00POLStraight, vertical, 500 mm high, polished. 22021-00RALStraight, vertical, 500 mm high, powder coated. 22020-00Straight, vertical, 300 mm high. 22020-00POLStraight, vertical, 300 mm high, polished. 22020-00RALStraight, vertical, 300 mm high, powder coated. As drawing ___ |
Centres | 2000 mmMaximum. As drawing ___ |
Handrails and kneerails | - |
Type | 22013-003 m lengths. 22013-00POL3 m lengths, polished. 22013-00RAL3 m lengths, powder coated. 22016-006 m lengths. NB kickboards are 3 m long. 22016-00POL6 m lengths, polished. NB kickboards are 3 m long. As drawing ___ |
Corner sections | Not required45°-45° corner section. 22062-0045°-45° corner section, polished. 220622062-00RAL 2-00POL45°-45° corner section, powder coated. 22061-0090° corner section. 22061-00POL90° corner section, polished. 22061-00RAL90° corner section, powder coated. 22066-00 ___°Stipulate angle required, between 45° and 175°. 22066-00POL ___°Stipulate angle required, between 45° and 175°. Polished. 22066-00RAL ___°Stipulate angle required, between 45° and 175°. Powder coated. As drawing ___ |
End parts | - |
Type | Not required22064-00Closure bend. 22064-00POLClosure bend, polished. 22064-00RALClosure bend, powder coated. 22063-00Wall end part/ termination flange. 22063-00POLWall end part/ termination flange, polished. 22063-00RALWall end part/ termination flange, powder coated. As drawing ___ |
Access gates | Not required22019-00Only compatible with straight, vertical uprights. 22019-00POLOnly compatible with straight, vertical uprights. Polished. 22019-00RALOnly compatible with straight, vertical uprights. Powder coated. As drawing ___ |
Connecting elements | 22060-00Junction part. 22065-00T junction. 22065-00POLT junction, polished. 22065-00RALT junction, powder coated. As drawing ___ |
Kneerail centres, vertical | 500 mmMaximum. As drawing ___ |
Kickboards | Not required22090-00150 mm high, 3 m long, aluminium. 22090-00POL150 mm high, 3 m long, aluminium, polished. 22090-00RAL150 mm high, 3 m long, aluminium, powder coated. As drawing ___ |
Mounting plates | 22040-00200 mm slab mounting. 22041-00250 mm slab mounting. 22042-00Wall mounting. 22043-00Cutout wall mounting. 22044-00Parapet mounting. 22045-00Steelwork mounting. 22046-00Steelwork mounting, folding. 22047-00Z-type mounting. 22048-00Z-type mounting, folding. 22049-00Z-type mounting, two fixings. As drawing ___ |
Sealing collars | Not required22070-00Single sealing collar. Comes with reinforcement collar. 22072-00Double sealing collar. Comes with reinforcement collar. As drawing ___ |
RAL colour | Not applicableAs drawing ___ |
Other requirements | 1 no. counterweight ref 22030-00 per access gate upright2 no. counterweights ref 22030-00 and 22031-00 per closure bend uprightAs drawing ___ |
Standard product features | Handrails: 40 mm diameter aluminium. - Connecting elements:
|
Product Options | Uprights: - Profiles:
- Maximum centres: Between uprights: 2 m. Handrails: - Lengths: 3 or 6 m. Powder coating only available to 3 m lengths. - Corner sections:
- End parts:
- Access gates:
- Maximum centres: Between hand and kneerail and parapet/ kickboard: 500 mm. Kickboards:
Mounting plates: Fixing is dependent on whether parapet exists and weatherproofing of building; consult Latchways. For fixing plates to structure use M10 or M12 diameter fixings, preferably with chemical plugs. Strength of receiving structure must be checked against traction forces generated by VersiRail®.
Sealing collars: Conform to recommendations of DTU 43.1. For use where coverings must remain weatherproof; compatible with all VersiRail® uprights. Pre-applied EFI attaching primer to base of reinforcement collar ensures seal between base of plate and covering, with further cloaking collar to upright.
Finishes: Denoted by reference suffix.
|
