Ventrolla | Secondary Glazing Horizontal Slider Unit

Verified by manufacturer 4 months ago

Ventrolla Sash Window Specialists Third party certifications:
  • QA Certificate

    QA Certificate

    Certificate type

  • British Woodworking Federation

    British Woodworking Federation

    Certificate type

  • CHAS

    CHAS

    Certificate type

  • ISO 14001 Environmental Management Systems

    Certificate type

  • ISO 45001 Health and Safety Management

    Certificate type

  • ISO 9001 Quality Management

    Certificate type

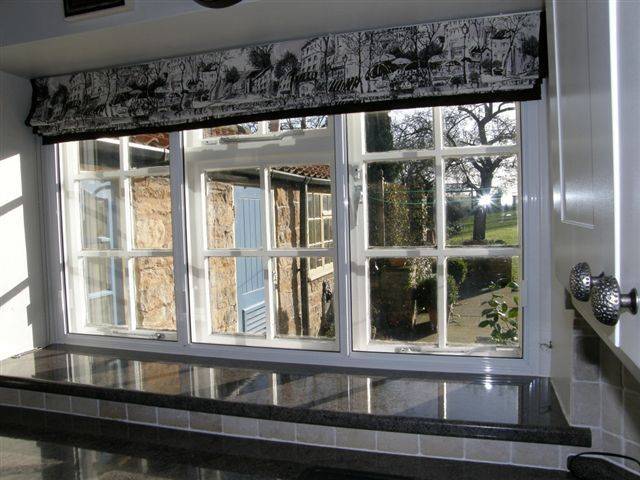

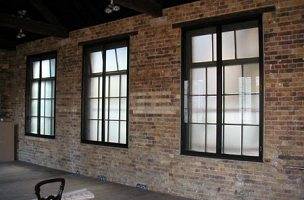

Horizontally sliding secondary glazing

Jump to:
+44 (0)800 0277 454 Website

Application

Used in conjunction with either sash or casement windows where full access is required and where there is sufficient space internally to open the casement secondary glazing.

Description

Horizontally sliding secondary glazing available in two, three and four panelled combinations. Can be supplied with arched or gothic head profiles and with stacking units.


Approvals:

Tested and approved to the following British Standards:

  • BS 1474 (Aluminium Alloy).
  • BS 7386 (Polypropylene draught strip).
  • BS 6375-1 (Performance - Water tightness - Test pressure class 300 Pa).
  • BS 5368-1 (Performance - Air permeability - Test pressure class 600 Pa).
  • BS 5821-3 (Acoustic performance - Weighted sound reduction index, minimum Rw 49 dB).
  • BS 6206 (Glazing).
  • BS 2782 (Gaskets).

General information

Color

Clear

Beige

Black

Blue

Bronze

Show more

Finish

Painted

Material

Aluminium

Guidance for specification option:

6063 T6 Alloy to BS 1474.

Shape

Rectangle

Square

Length

Bespoke

Width

Bespoke

Height

Bespoke

Uniclass

Pr_30_59_98_02 Aluminium window unitsPrimary

CAWS

L10/58 Secondary glazing system

L10/580 Secondary glazing system

Specification data - Aluminium window units

Dimensions and configurations

As drawing.

Guidance for specification option:

Insert reference.

As schedule.

Guidance for specification option:

Insert reference.

Product performance

-

Weather performance

-

Air permeability

To BS 5368-1: Test pressure class 600 Pa.

Watertightness

To BS 6375-1: Test pressure class 300 Pa.

Environmental

-

Acoustic performance rating

To BS 2750-3, BS 5821-3: Weighted sound reduction index, minimum Rw 49 dB.

Frame

-

Finish as delivered

-

Coating

Anodized to AA5 - BS 3987.

Polyester powder coating to BS 6496.

Colour

Not applicable.

Guidance for specification option:

For anodized.

Van dyke brown.

White.

RAL.

Guidance for specification option:

Special order, insert colour requirement.

Film thickness (minimum)

60 micrometers (polyester powder coating).

Glazing or infill

-

Standard

To BS 6206.

Requirements

Acoustic glass, 6.4 mm.

Acoustic glass, 6.8 mm.

Clear float glass, 4 mm.

Clear float glass, 6 mm.

Laminated glass, 6.4 mm.

Laminated glass, 6.8 mm.

Toughened glass, 4 mm.

Toughened glass, 6 mm.

Hardware

Barrel lock.

Budget lock.

Chubb lock.

Shoot bolt.

Restricted opening lock.

Operation

-

Type

Manual.

Fixing features

Face fix.

Reveal fix.

Type

CO3 Left-hand.

Guidance for specification option:

Three-piece horizontal slider, available up to 3600 x 2000 mm (w x h).

CO3 Right-hand.

Guidance for specification option:

Three-piece horizontal slider, available up to 3600 x 2000 mm (w x h).

SS2 Left-hand.

Guidance for specification option:

Two-piece horizontal slider, available up to 2400 x 2000 mm (w x h).

SS2 Right-hand.

Guidance for specification option:

Two-piece horizontal slider, available up to 2400 x 2000 mm (w x h).

SS3.

Guidance for specification option:

Three-piece horizontal slider, available up to 3600 x 2000 mm (w x h).

Show more

Special features

Not required.

Arched head.

Gothic head.

Stacking units.

Gaskets

Black.

Guidance for specification option:

Standard, extruded to BS 2782.

White.

Guidance for specification option:

Extruded to BS 2782.

Material

Hardwood.

PVC-U.

Manufacturer guidance

Trim

Size

6 x 15 mm D.B.N.

6 x 33 mm D.B.N.

6 x 43 mm D.B.N.

6 x 21 mm S.B.N.

6 x 27 mm S.B.N.

Show more

Manufacturer guidance

Trim

Grounds/ Sub frame

21 x 45 mm hardwood sub-frame, standard fix.

21 x 62 mm hardwood sub-frame, reveal fix.

30 x 30 mm hardwood sub-frame, bay adaptor.

Guidance for specification option:

Insert requirement.

Sustainability data

Contains Red List materials

No

Country of material origin

Europe

Country of product manufacture

United Kingdom

Material

Aluminium

Guidance for specification option:

6063 T6 Alloy to BS 1474.

Recyclability

Yes

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

0 %
