Velocity 70
Application

Used to acoustically divide offices, schools, universities, leisure and sport centres.

Description

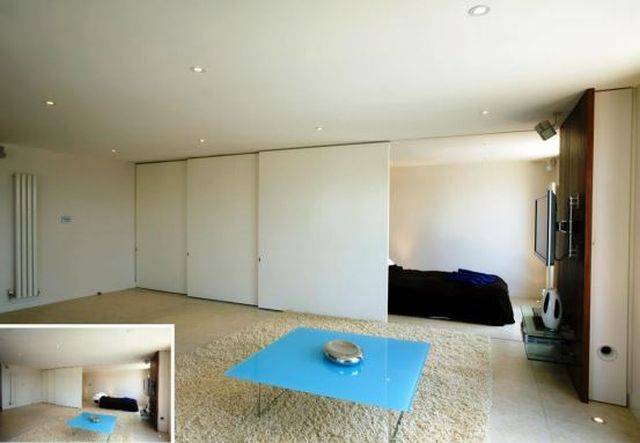

A simple push/ pull sliding panel system designed to replace traditional solid core door systems that tend to warp over time and become difficult to move. The system is manufactured with a mix of steel and aluminium frame to provide a twist resistant structure and is fitted with acoustic infill material, rubber gaskets and sweep strips. To form larger openings, the panels can be joined together on site by way of linking rods and steel plates (maximum of three panels).

The system is top hung with a floor guide rail recessed into the underside of the panel, with a floor pin located in the floor to act as a guide. The partition can be supplied as a single wing stacking at one end or as a bi-parting configuration.

Available in a range of finishes including laminate, white marker, veneer, digi-art or primed for onsite decorating. All hardware is finished in hardwearing, compliant natural anodized aluminium or stainless steel.

Features and benefits:

  • Contemporary space management.
  • Can be stored within a pocket or against a wall.
  • Vast selection of finishes available.
  • Single or multiple track lines available
  • Ultimate in contemporary space management
  • Design option to be stored in bespoke pocket.
  • Available with vision panels.
  • Multipronged acoustic seal.

Applications:

Used to acoustically divide offices, schools, universities, leisure and sport centres.

General information
Size

As drawing

Insert reference.

As schedule

Insert reference.

Finish

Insert requirement, contact manufacturer for information.

Uniclass 2015
Pr_25_71_57_80 Sliding stacking panel partitionsPrimary
CAWS

L20/545 Sliding stacking panel partitions

Specification data - Sliding stacking panel partitions
Product Reference

Velocity 70

Size

As drawing

Insert reference.

As schedule

Insert reference.

Width

Insert requirement, maximum of 1200 mm.

Stacking

Bi-parting

Single wing

Finish

Insert requirement, contact manufacturer for information.

Hardware

Anodized aluminium

Stainless steel

Standard product features

Nominal thickness:

70 mm.

Construction:

Top hung.

Hanging weight (approximate):

22–47 kg/m²

Acoustic performance:

31–41 dB.

Maximum clear opening height:

3300/ 3600 mm.
