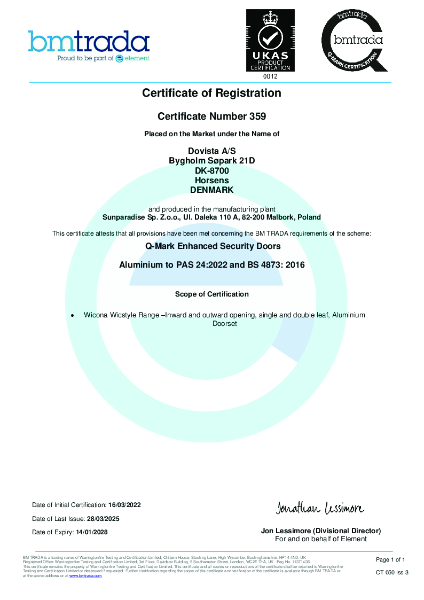

BM Trada
Certificate type
Glazed entrance door for heavy use. For main entrance, side entrance or restricted entrance to commercial, residential or public buildings.
For commercial applications. Designed for installation where reliability, stability and strength of the door are vital such as, main entrance, side entrance or restricted entrance to commercial, residential or public buildings.
Can be coupled with VELFAC 200 window to glazed create entrance screens for receptions or atria.
24 mm double- or 48 mm triple-glazed thermally broken rebated aluminium doors.
Features and benefits:
Vision glazing:
Doors delivered pre-glazed with 24 mm/ 48 mm toughened/ laminated glass where required, allowing for 6.8 mm laminate where required. Insulating glass units conform to:
The VELFAC Aluminium door system is only available with an order for VELFAC 200.
ColorConsult manufacturer for anodized and RAL colour options. | - |
Finish | Powder-coated Anodized |
Material | Aluminium |
Shape | Rectangle |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
WarrantyDescription | Five year |
Uniclass | |
CAWS | L20/55 Doorsets L20/480 Doorsets |
Product range |
Third-party certification | BM TRADA certified. |
Configuration | Single leaf, single action.Double leaf, single action. |
Doorset sizeContact manufacturer to discuss and insert requirements. | - |
Performance | - |
Thermal | 0.93 W/m²K.Door profiles incorporate a rigid polyetherimide isolator mechanically retained in position. |
Intruder resistance | - |
Minimum requirement | Secured by Design certification. |
Application | Both sides. |
Conformity | Certification by accredited third party certification body. Type testing not permitted. |
Frame | - |
Material | Aluminium. |
Threshold | Part M compliant 15 mm aluminium with thermal break threshold.Consult manufacturer for weather performance. External drainage must be considered when using low thresholds. |
Finish | - |
Coating | Powder coating to BS 6496.Anodized. |
Door leaf | - |
Thickness | 75 mm. |
Core | Manufacturer's standard. |
Panel details | Architectural louvre panel.RAL colour, externally and internally, insert requirements. Sandwich panel.RAL colour, silver or bronze anodized, externally and internally, insert requirements. Vision glazing. |
Material | Aluminium. |
Glazing | - |
Type | Doors can incorporate a wide range of glass apertures including acoustic glazing, privacy glazing laminate and toughened all available where required. Please consult manufacturer for further details. |
Finish | - |
Coating | Powder coating to BS 6496.Anodized. |
External colour | RAL.Polyester powder coated - RAL colours from the Classic K7 range, Granite, NBS range, consult manufacturer for options and insert requirements. Bronze.Anodized. Silver.Anodized. |
Internal colour | As External. |
AccessoriesA wide range of accessories are available, consult manufacturer and insert requirements. | - |
Execution | Installing hardware. |
Opening | Inward. Outward. |
Type | Entrance door.
Escape door.
Main entrance door.
Remote access door with electric lock.
Remote access door with electric strike.
|
Glazing bars | As drawing. 73 mm. 90 mm. 160 mm mid-rail. |
Solar control | Required. To prevent heat build-up. Not required. |
Country of material origin | Poland |
Country of product manufacture | Poland |
Embodied carbonA1-A3 (production stage) as defined in BS EN 15804 Guidance: Consult manufacturer. | - |
RecyclabilityConsult manufacturer. | - |
Recycled contentConsult manufacturer. | - |
