Vari-Level floor gullies, trapped
Description

A Vari-Level gulley comprises, as a minimum, a Vari-Level body and a Vari-Level grating. In some versions these items fit together directly, but mostly connection is by means of an inter-connecting, dual purpose part – a membrane clamping collar.

To cover a myriad of applications, different versions of Vari-Level bodies are available for use with a wide range of Vari-Level gratings, access covers and accessories.

General information

Uniclass 2015

Pr_65_52_24_31 Floor gulliesPrimary

CAWS

R11/315 Floor drains

R11/5 Floor drains

Specification data - Floor gullies

Product Reference

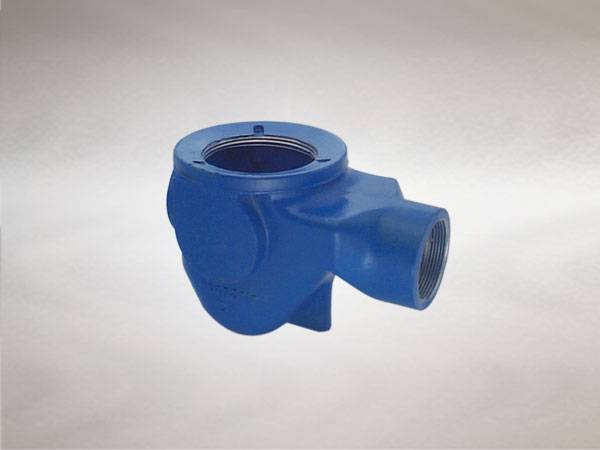

Vari-Level floor gully, trapped

Body

-

Cast iron

Not required

G102, ‘P’ trapped, 50 mm seal, size 2” BSP

G202, ‘P’ trapped, 50 mm seal, rodding access plug, size 2” BSP

G203, ‘P’ trapped, 50 mm seal, rodding access plug, size 3” BSP

G303, ‘P’ trapped, 50 mm seal, rodding access plug, size 75 mm

G304, ‘P’ trapped, 50 mm seal, rodding access plug, size 100 mm

G502, ‘S’ trapped, 50 mm seal, rodding access plug, size 2” BSP

G503, ‘S’ trapped, 50 mm seal, rodding access plug, size 3” BSP

G603, ‘S’ trapped, 50 mm seal, rodding access plug, size 75 mm

G604, ‘S’ trapped, 50 mm seal, rodding access plug, size 100 mm

G1014, ‘S’ trapped, 50 mm seal, rodding access plug, size 100 mm

GC144, bottle trapped, 50 mm seal, size 100 mm

GD144, bell trapped, 50 mm seal, size 100 mm, pipework system BS 416/ Din19522/ plastics

GD164, bell trapped, 50 mm seal, size 100 mm, BS 437

GP1104, plastic body, trapped 50 mm seal, size 110 mm, pipework system plastic/BS 416

GP312, plastic body, trapped 50 mm seal, size 50 mm, pipework system plastic

GP614, plastic body, trapped 50 mm seal, size 110/50 mm, pipework system plastic

H102, ‘P’ trapped, 100 mm seal, size 2” BSP

H203, ‘P’ trapped, 100 mm seal, size 3” BSP

H204, ‘P’ trapped, 100 mm seal, size 4” BSP

J204, ‘P’ trapped, 100 mm seal, size 4” BSP

Stainless steel

Not required

QG114, bell trapped, 60 mm seal, rodding access plug, size 100 mm

QG214, 'P' trapped, 60 mm seal, rodding access plug, size 100 mm

Membrane clamping collar

Suffix C (optional)

Fits G and QG series bodies (G102 to G1004, QG114 and QG214).

C.C, standard 4" throat version (gasketed)

Fits body GC144.

C.CW, 4" throat version, includes weepholes (not sealed)

Fits body GC144.

C.D, standard 4" throat version (gasketed)

Fits bodies GD144 and GD164.

C.CW, 4" throat version, includes weepholes, (not sealed)

Fits bodies GD144 and GD164.

C.H1, 3" throat version (optional)

Fits body H102. Add U201 for 4" throat version.

C.H2, 4" throat version (optional)

Fits bodies H203 and H204. Add U1101 for 3" throat version.

C.J2, 4" throat version (optional)

Fits body J204. Add U1101 for 3" throat version.

Grating

-

Cast iron

Not required

K2103 CI, 155 mm dia. standard circular grating

K2501, 176 mm dia. for light vehicular traffic areas

L2501 CI, 150 x 150 mm decorative floral pattern

L2601, 150 x 150 mm for light vehicular traffic areas

Nickel bronze

Not required

K2101, 135 mm dia. standard circular grating

K2102, 135 mm dia. standard circular grating

K2103, 152 mm dia. standard circular grating

K2201, 176 mm dia. indirect wash connector

K2301, 142 mm dia. for use with sheet floor covering

K2302, 176 mm dia. for use with sheet floor covering

K2303, 230 mm dia. for use with sheet floor covering

K2401, 152 mm dia. for use with trowel applied composition covering, 4 mm flange depth

K2601, 176 mm dia. to take multiple indirect wastes pipes, with peripheral grating

K2701, 176 mm dia. to take single indirect wastes pipe, with peripheral grating

K3101, 135 mm dia. reduces risk of blockages in channels

K3301, 150 mm dia. to take single indirect wastes pipe, with peripheral cover and vermin guard

K3302, 150 mm dia. to take multiple indirect wastes pipes, with peripheral cover and vermin guard

K3401, 176 mm dia. for use with sheet floor covering, with peripheral cover and vermin guard

K3402, 176 mm dia. for use with sheet floor covering, with peripheral cover and vermin guard

L2101, 101 x 101 mm standard square grating

L2102, 135 x 135 mm standard square grating

L2103, 150 x 150 mm standard square grating

L2104, 201 x 201 mm standard square grating

L2201, 102 x 204 mm rectangular

L2202, 125 x 430 mm rectangular

L2301, 150 x 150 mm square framed

L2402, 115 x 115 mm contoured to match Johnson 4200 ceramic tile

L2404, 150 x 150 mm contoured to match Pilkington/ Wooliscroft 2302 ceramic tile

L2406, 150 x 150 mm contoured to match Platt 2300 ceramic tile

L2407, 150 x 150 mm contoured to match Ruabon ceramic tile

L2408, 150 x 150 mm contoured to match Keramic ceramic tile

L2409, 150 x 150 mm contoured to match Langley Buchtal 4420/54420 ceramic tile

L2501, 150 x 150 mm decorative floral pattern

L2801, 150 x 150 mm to take single indirect wastes pipe, with peripheral cover and vermin guard

L2803, 150 x 150 mm to take multiple indirect wastes pipes, with peripheral cover and vermin guard

L3001, 161 x 161 mm hinged

L5301, 150 x 150 mm grating concealed by solid hinged cover

L5302, 150 x 150 mm grating concealed by solid hinged cover

L5401, 150 x 150 mm grating concealed by solid hinged cover

Stainless steel

Not required

K1807, 176 mm dia. with peripheral slot, for use with sheet floor covering

K2107, 150 mm dia. circular

K2307, 176 mm dia. for use with sheet floor covering

K2407, 150 mm dia. for use with trowel applied composition covering, 6 mm flange depth

K2801, 140 mm dia. flanged with peripheral slot, self securing

K2901, 114 mm dia. security area drainage

K3407, 176 mm dia. condensate funnel with vermin guard, for use with sheet floor covering

K3504, 150 mm dia. security area drainage with pin torx screws

K3604, 176 mm dia. security area drainage for use with sheet floor covering

L2105, 101 x 101 mm square

L2106, 150 x 150 mm square

L2701, 150 x 150 mm condensate funnel with vermin guard

L2901, 150 x 150 mm streamline heel proof reverse wedge profile grating secured with Pin Torx screws

L2902, 200 x 200 mm streamline heel proof reverse wedge profile grating secured with Pin Torx screws

L3101, 150 x 150 mm square perforated

L3102, 200 x 200 mm. square perforated

L3201, 150 x 150 mm. Square perforated grating

L3202, 200 x 200 mm, square perforated grating

L3301, 150 x 150 mm, anti-slip grating

L3302, 200 x 200 mm, anti-slip grating

L3401, 150 x 150 mm, plain mesh

L3402, 200 x 200 mm, plain mesh

L3501, 173 x 173 mm, plain mesh for use with sheet floor covering

L3502, 223 x 223 mm, plain mesh for use with sheet floor covering

L3601, 173 x 173 mm, anti-slip mesh for use with sheet floor covering

L3602, 223 x 223 mm, anti-slip mesh for use with sheet floor covering

L3701 173 x 173 mm, streamline heel-proof reverse wedge profile for use with sheet floor covering

L3702 223 x 223 mm, streamline heel-proof reverse wedge profile for use with sheet floor covering

L3801, 173 x 173 mm, perforated grating for use with sheet floor covering

L3802, 223 x 223 mm, perforated grating for use with sheet floor covering

L3901, 173 x 173 mm, perforated grating for use with sheet floor covering

L3902, 223 x 223 mm, perforated grating for use with sheet floor covering

L5305 135 x 135 mm, hinged cover with circular non-secured grating inside

L5308 150 x 150 mm, hinged cover with circular non-secured grating inside

Accessories

Not required

T1301, 150 x 150 mm gulley adaptor for use with 4” throat grating/ cover

T1302, 150 x 150 mm gulley adaptor for use with 3” throat grating/ cover

T1401, 188 mm dia. gulley adaptor for use with 4” throat grating/ cover

T1402, 188 mm dia. gulley adaptor for use with 3” throat grating/ cover

T701, 3” cast iron adaptor for cast iron DIN 19522 SMU 75 mm

T701, 3” cast iron adaptor for plastic pipe 82 mm O.D

T702, 4” cast iron adaptor for cast iron BS 416 100 mm

T702, 4” cast iron adaptor for cast iron DIN 19522 100 mm

T703, 4” cast iron adaptor for cast iron DIN 19522 SMU 75 mm

T703, 4” cast iron adaptor for plastic pipe 82 mm O.D

T704, 4” cast iron adaptor for plastic pipe 75 mm O.D

T712, 3” cast iron adaptor for cast iron BS 416 100 mm

T712, 3” cast iron adaptor for cast iron DIN 19522 100 mm

T712, 3” cast iron adaptor for plastic pipe 110 mm O.D

T714, 3” cast iron adaptor for plastic pipe 75 mm O.D

T742, 2" BSP male thread cast iron

T792, 4" cast iron adaptor for cast iron BS 416 50 mm

T792, 4" plastics (ABS) adaptor for cast iron DIN 19522 50 mm

T801, 3” cast iron adaptor for cast iron BS 416 75 mm

T803, 4” cast iron adaptor for cast iron BS 416 75 mm

T901, 4” cast iron adaptor for clay supersleve 100 mm

T911, 3” cast iron adaptor for clay supersleve 100 mm

TP702, 4” plastics (ABS) adaptor for cast iron BS 416 100 mm

TP702, 4” plastics (ABS) adaptor for cast iron DIN 19522 100 mm

TP702, 4” plastics (ABS) adaptor for plastic pipe 110 mm O.D

T1103, 100 mm Supersleve pipework - for 100 mm BS 416 or BS 437

T1201, 50 mm copper pipework adaptor - for 50 mm BS 416

T1202, 75 mm copper pipework adaptor - for 75 mm BS 416

T1203, 100 mm copper pipework adaptor - for 100 mm BS 416

T1501, 100 mm plastic pipework adaptor - for 100 mm BS416

T1603, 75 mm DIN 19522 Ensign pipework adaptor - for 75 mm BS 416

T101, spigot adaptor to 2" BSP thread for 50 mm cast iron BS 416

T102, spigot adaptor to 3" BSP thread for 75 mm cast iron BS 416

T104, spigot adaptor to 6" BSP thread for 150 mm cast iron BS 416

T101, spigot adaptor to 2" BSP thread for 50 mm cast iron DIN 19522 (Ensign and SMU)

T108, spigot adaptor to 3" BSP thread for 75 mm cast iron DIN 19522 (SMU)

T102, spigot adaptor to 3" BSP thread for 75 mm cast iron DIN 19522 (Ensign)

T103, spigot adaptor to 4" BSP thread for 100 mm cast iron DIN 19522 (Ensign and SMU)

T104, spigot adaptor to 6" BSP thread for 150 mm cast iron DIN (Ensign and SMU)

T301, spigot adaptor to 3" BSP thread for 82 mm plastics pipes

T302, spigot adaptor to 4" BSP thread for 100 mm stainless steel (Europipe) pipes

T103, spigot adaptor to 4" BSP thread for 160 mm HDPE

T105 100 mm spigot adapter - For BS 437 cast iron pipe

T106 150 mm spigot adapter - For BS 437 cast iron pipe

T1802, Adaptor (ABS) to 2" BSP thread for 50 mm stainless steel pipework; threaded one end; length 90 mm

T1702 Adaptor (ABS) to 2" BSP thread for 50 mm plastics pipework; threaded one end; length 60 mm; includes solvent weld socket

T1704 110 mm spigot adapter - For plastics pipe

T303 160 mm spigot adapter - For plastics pipe

T501 100 mm spigot adapter - For 100 mm SuperSleve pipe

T502 150 mm spigot adapter - For 150 mm SuperSleve pipe

U101, cast iron extension for use with gratings/ covers with 4” throat and bodies with 4” inlet

U102, cast iron extension for use with gratings/ covers with 4” throat and bodies with 4” inlet

U103, cast iron extension for use with gratings/ covers with 4” throat and bodies with 4” inlet

U104, cast iron extension for use with gratings/ covers with 4” throat and bodies with 4” inlet

U1101, cast iron extension for use with gratings/ covers with 3” throat and bodies with 3” inlet

U1202, stainless steel portable funnel

U1203, Stainless steel portable funnel without tall piece

U1501, stainless steel support plate and cast iron membrane clamp

U1601, stainless steel asphalt flange

U201, cast iron extension for use with gratings/ funnels/ covers with 4” throat and bodies with 4” inlet

U208, cast iron extension for use with gratings/ covers with 4” throat and bodies series B1, B2, G2-G6, G8, G10 to provide height increase of only 25 mm.

U301, cast iron extension

U501, nickel bronze bolt on funnel for single direct waste pipe

U502, cast iron bolt on funnel for single direct waste pipe

U511, stainless steel bolt on funnel for single direct waste pipe

U601, nickel bronze bolt on funnel for multiple direct waste pipe

U602, cast iron bolt on funnel for multiple direct waste pipe

U703, backwater valve 3"

U704, backwater valve 4"

U1404, removable bottle trap

U1301, 90° swept bend

U902, deep seal ‘P’ trap, 2” BSP inlet and outlet

U903, deep seal ‘P’ trap, 3” BSP inlet and outlet

U904, deep seal ‘P’ trap, 4” BSP inlet and outlet

UP104, plastics extension for use with gratings/ covers with 4” throat and bodies with 4” inlet

UP701, Vari-Level filter bucket

UP702, Vari-Level filter bucket, deep version

UX9901 cast iron 100 mm inlet/outlet plug

Product Options

Body material:

  • Cast iron body, trapped sump.
  • Plastic body, trapped sump (applies to GP1104, GP312 and GP614).
  • Stainless steel grade 304 body, trapped sump (applies to QG114 and QG214), grade 316 is available on request.

Cast iron gratings:

  • A – Asphalt membrane clamp (Stainless steel) (for use in asphalt/ composition finished floors - K2501 only).
  • H – Fitted with Pin Torx screws for security applications.

Nickel bronze gratings:

  • H – Fitted with Pin Torx screws for security applications.
  • P – Polished.

Stainless steel gratings:

  • H – Fitted with Pin Torx screws for security applications.
  • P – Polished (K3407 and L2701 are polished as standard).

Similar products from Alumasc Water Management Solutions
