Vanities | SGL Vanities

Name: Vanities | SGL Vanities
Brand: Venesta Washroom Systems Ltd
SKU: mqyrUcwAUbR4sYM61mXmrL

Verified by manufacturer 2 months ago

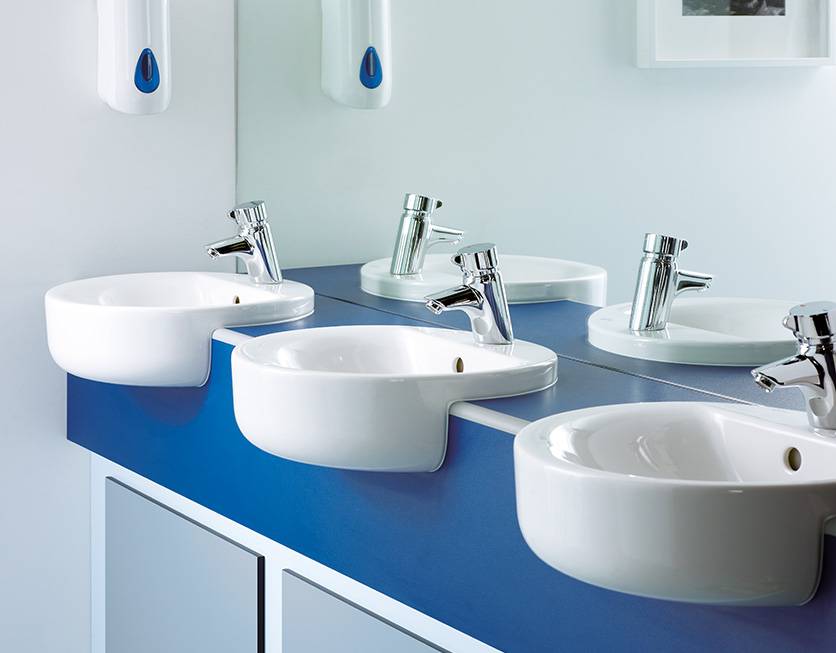

CV1 Profile: Semi-recessed basin with upstand

Venesta Washroom Systems Ltd

Solid Grade Laminate (SGL) vanity units for maximum durability and strength.

Jump to:

+44 (0)1474 353333 Website

Application

Suitable for all washroom environments. Particularly suited to wet and heavy-duty applications.

Description

Manufactured from 13 mm solid grade laminate, SGL vanity units are totally impervious to water, they can be installed in all wet and dry areas and are particularly suitable for situations that call for a heavy-duty solution.

Features and benefits:

Removable access panels.
Available in multiple profile options.
Impervious to water.
Choice of vanity profiles.

Specifically produced for heavy duty use in wet conditions and having a wet cleaning regime.

General information

Color	Black Blue Cream Green Grey Orange Pink Purple Red Turquoise White Yellow Other Show more
Finish	Polished
Material	Solid grade laminate (SGL) Aluminium Chipboard
Shape	Rectangle
Width	355 mm 555 mm
Height	600 mm 675 mm 750 mm 800 mm 850 mm
Warranty description	Ten year

Uniclass	Pr_40_20_76_94 Vanity unitsPrimary
CAWS	N10/145 Vanity and washroom furniture

Product range	Vanity Units

Specification data - Vanity units

Materials	-
Carcass	-
Frame and panels	13 mm nominal high density solid grade laminate (SGL) with decorative face both sides.
Worktop	-
Material	Compact laminate recessed into flush fitting SAA or black anodized aluminium extrusion to front radius and rear cove.
Finish and colour	Rouge (VEN324 \| LRV 17). Papaya (VEN370 \| LRV 35). Golden (VEN366 \| LRV 52). Canary (VEN365 \| LRV 65). Lime (VEN354 \| LRV 54). Clover (VEN378 \| LRV 20). Olive (VEN367 \| LRV 38). Duck Egg (VEN368 \| LRV 54). Marine Green (VEN360 \| LRV 46). Hydrangea (VEN361 \| LRV 55). Cornflower Blue (VEN359 \| LRV 22). Pacific (VEN353 \| LRV 20). Peacock (VEN371 \| LRV 25). Teal (VEN377 \| LRV 11). Indigo (VEN356 \| LRV 8). Merlot (VEN364 \| LRV 8). Macaroon (VEN348 \| LRV 24). Peony (VEN376 \| LRV 52). Porcelain (VEN352 \| LRV 81). Suede (VEN369 \| LRV 66). Cloud (VEN351 \| LRV 58). Shadow (VEN350 \| LRV 37). Gunmetal (VEN349 \| LRV 10). Noir (VEN337 \| LRV 5). Steel (VEN319 \| LRV 42). Light Parchment (VEN363 \| LRV 57). Grey Parchment (VEN362 \| LRV 31). Vintage Grey (VEN372 \| LRV 27). Weathered Grey (VEN358 \| LRV 21). Black Ash (VEN374 \| LRV 9). African Wenge (VEN373 \| LRV 11). Dark Walnut (VEN355 \| LRV 13). Golden Oak (VEN357 \| LRV 36). Soft Oak (VEN375 \| LRV 45).
Size (nominal)	355 mm overall width bed, 300 mm apron (downstand) and 115 mm upstand.
Integral accessories	Not required. Angle brackets. Screws and plugs for fixing underframe to floor and vanity top to underframe and back wall.

Preplumbing	Pre-fixed and sealed to vanity unit by Venesta, all factory assembled.
Vanity top and panels	CV1 Profile: Semi-recessed basin with upstand.
Underpanel	High density solid grade laminate (SGL) with decorative face both sides.
Thickness	13 mm nominal.
Underframe	High density solid grade laminate (SGL) with decorative face both sides.
Edge treatment	Radiused and polished.
Bed height	600 mm. Guidance for specification option: Key stage 1 - (apron reduced to 200 mm). 675 mm. Guidance for specification option: Key stage 2. 750 mm. Guidance for specification option: Key stage 3. 800 mm. Guidance for specification option: Key stage 4 to adult. 850 mm. Guidance for specification option: Key stage 4 to adult.
Fixing method	Concealed plastic clips fixed to edge of underframe cutouts and reverse of facing panels.
Joint treatment	Nominal 70 mm wide flashgap between each panel section.

Sustainability data

Contains Red List materials	No
Country of product manufacture	United Kingdom
Material	Solid grade laminate (SGL) Aluminium Chipboard

Case studies

Education | Wimbledon Chase Primary School
