VALUE Backrest - R1651
Compare variants

VALUE Backrest - R1651

Pressalit Limited Variant:
Third party certifications:
  • QA Certificate

    QA Certificate

    Certificate type

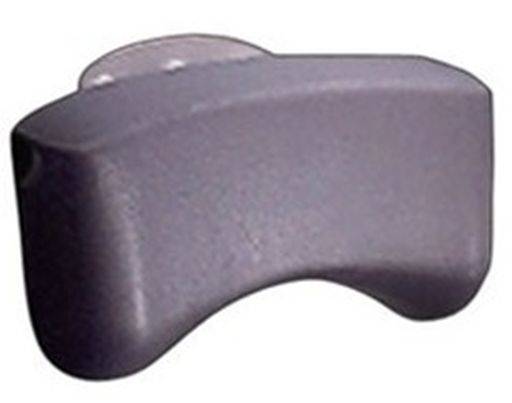

Padded backrest for folding shower seat.

Jump to:
+44 (0)118 923 2696 www.pressalit.com

Application

Suitable for use with Value folding shower seat.

Description

The Pressalit fixed height folding shower seat is available with or without a backrest, and support leg. The seat meets the recommended projection of 650 mm detailed in Part M and BS 8300.


Features and benefits:

  • Fixed height.
  • Soft and slip-resistant material that has a warm feel.
  • For use with a WC without a cistern.


Size:

When the seat is mounted at the recommended height (525 mm), the folding shower seat height is 440 mm measured from the floor to the top edge of the seat. Wall to front edge projection: 650 mm; complies with BS 8300 and Part M.


Construction:

The folding shower seats have Rilsan coated steel and powder coated stainless steel frames, with vacuum moulded polyethylene (PE) seat pads.

General information

Color

White

Grey

Finish

Lacquered

Material

Aluminium

Polyethylene

Shape

Rectangle

Size

189 x 450 x 160 mm

WarrantyDescription

Five year

Uniclass 2015

Pr_40_20_06_83 Shower seatsPrimary

CAWS

N13/448 Seats

Specification data - Shower seats Enhanced data

Form

Backrest.

Materials

-

Frame

Polyethylene (PE) and aluminium.

Integral accessories

Includes fixing kit for brick wall.

Type

Folding shower seat.

Colour

White.

Frame.

Pale grey.

Seat.

Dimensions

189 x 450 x 160 mm.

Environmental information

Country of material origin

Denmark

Digital objects

Platform Compatible Version Certified to
IFC

IFC2X3

1

1.3
Revit

Revit 2016

2

2.0
Download now from NBS National BIM Library

Third party certifications

  • CE Marked: In accordance with the European Medical Device Directive 93/42/EC including amendments incorporated in Directive 2007/47/EEC : A declaration of conformity can be found at www.pressalit.com
