Valenteena Valve Concealed

Verified by manufacturer 9 months ago

VTN.CN.GD

Elisa™ Variant:

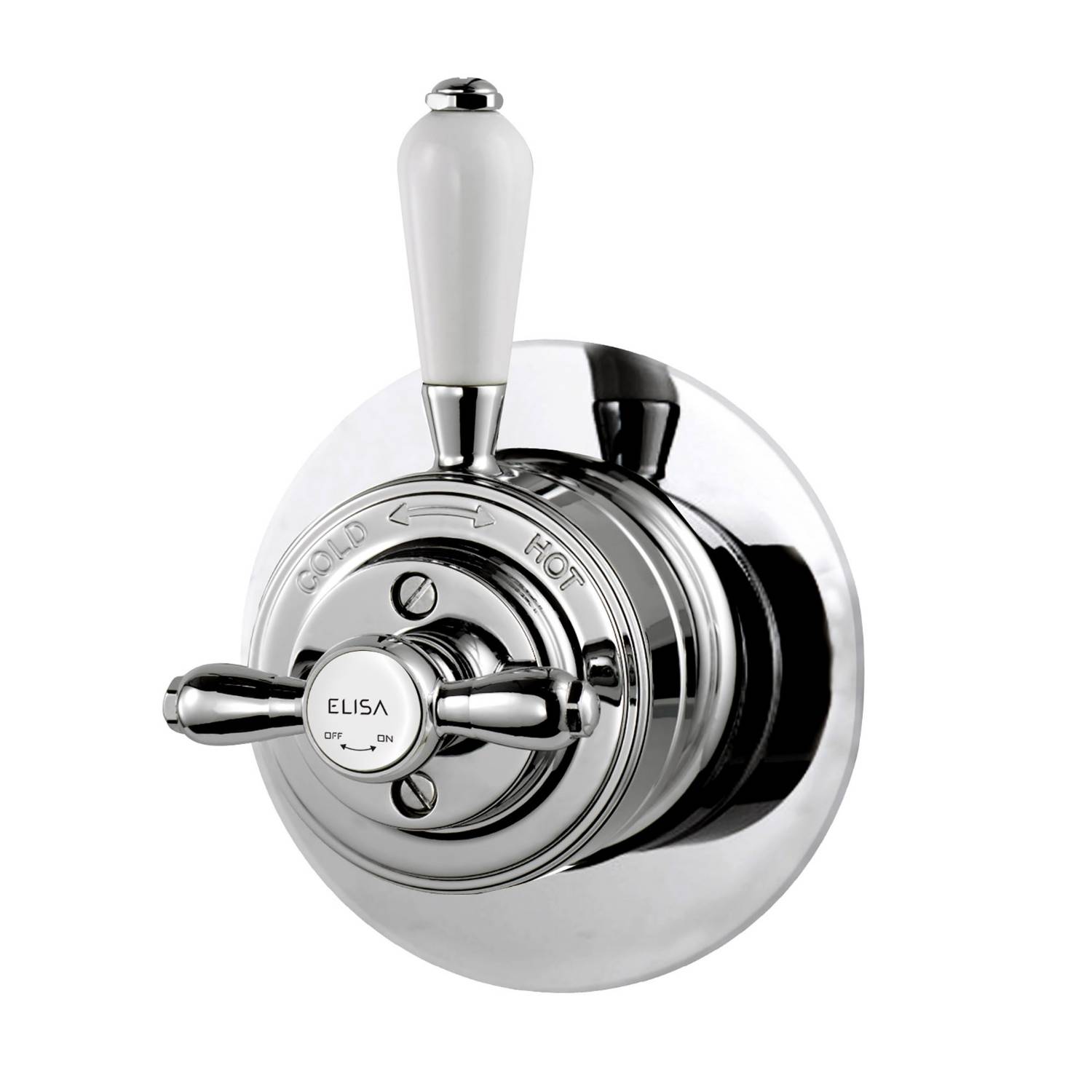

Solid brass concealed shower valve.

Jump to:
+44 (0)1959 560003 Website

Application

Compatible with gravity, boosted gravity, combi and balanced high pressure water systems.

Description

Classic styling, that features a range of traditional fixed or flexible shower head options, a solid brass concentric valve with an authentic ceramic temperature handle, combines distinctive, period aesthetics with all the benefits of safe, high performance, showering.


Available in polished chrome or gold-plated finish, the separate flow and thermostatic temperature controls ensure safe, precise and reliable showering and the extra assurance of automatic cut-off should water supplies fail. Compatible with all plumbing systems, a Valenteena shower is the focal point for more traditional bathroom designs.


Features and benefits:

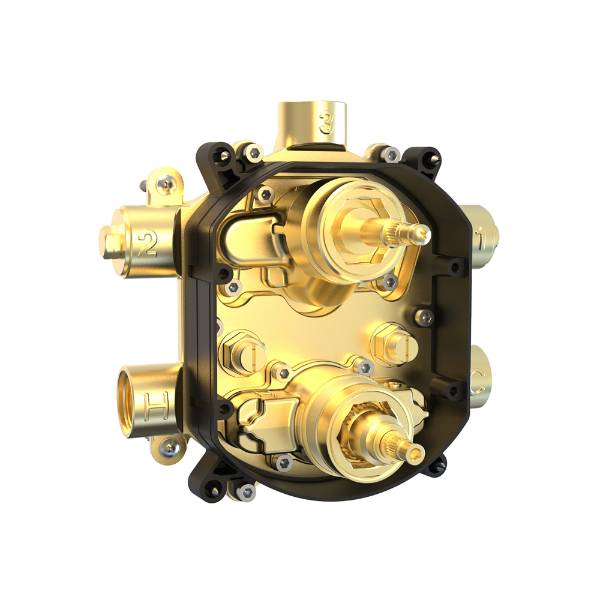

  • Quality, solid brass concealed shower valve.

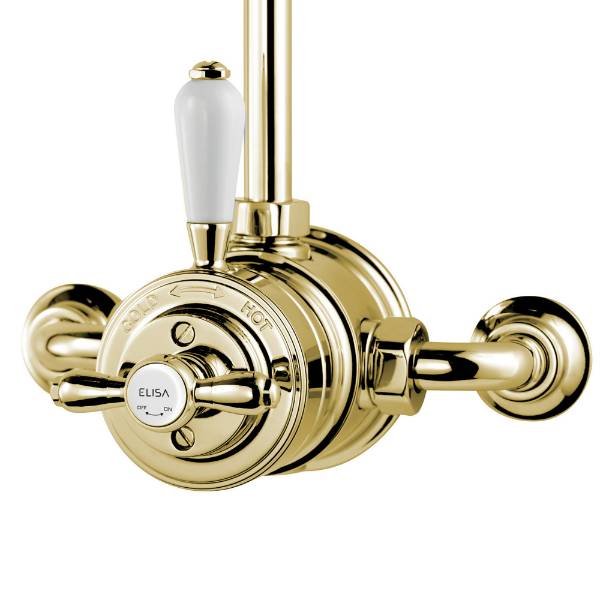

  • Classically styled five inch and eight-inch drencher and adjustable shower head options.
  • Bi-metallic thermostatic technology to maintain a consistent and precise water temperature.
  • Maximum temperature limit can be set during installation.
  • Separate flow control.

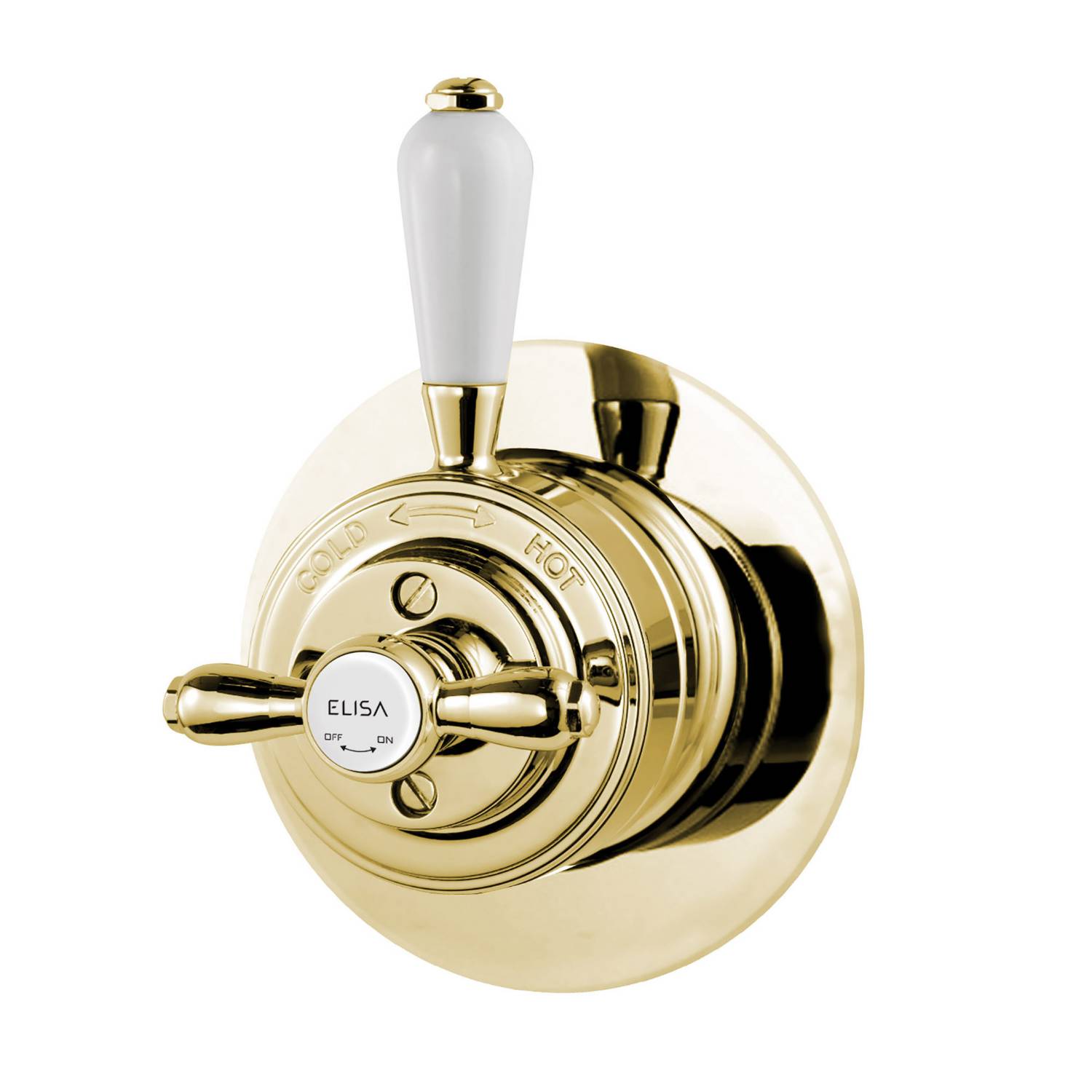

  • Chrome or gold-plated finish.

General information

Color

Silver

Gold

Finish

Gloss

Material

Brass

Shape

Other

Length

150 mm

Width

150 mm

Height

90 mm

Warranty description

Five year

Uniclass

Pr_40_20_87_80 Shower thermostatic valvesPrimary

CAWS

N13/42 Shower mixer valves

N13/40 Shower units

N13/375 Shower units

Specification data - Shower thermostatic valves

Form

Concealed wall-mounted thermostatic shower mixer valve.

Materials

-

Body

Brass.

Finish and colour

Gloss, gold.

Flow rate (maximum)

8 L/ min at 0.1 bar; 20 L/min at 3 bar.

Water supply temperature (maximum)

65°C.

Guidance for specification option:

Minimum: 5°C.

Integral accessories

Guidance for specification option:

Consult manufacturer and insert requirements or omit.

Width

150 mm.

Depth

90 mm.

Height

150 mm.

Weight

2.3932 kg.

Bar

0.1—10 bar.

Manufacturer guidance

Min-Max.

OutletConnectionSize

3/4" BSP.

InletConnectionSize

3/4" male threads.

Water supply

Hot left, cold right.

Sustainability data

Contains Red List materials

No

Country of product manufacture

United Kingdom
