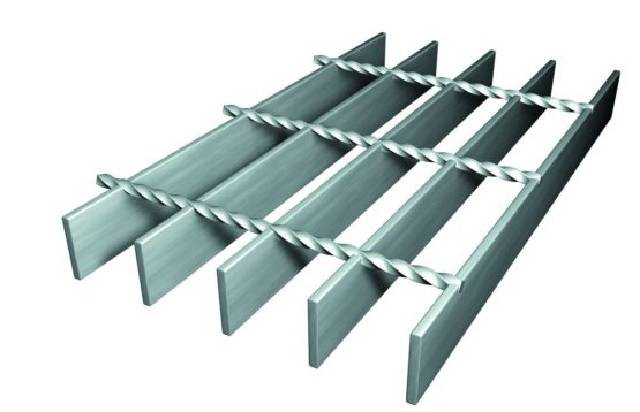

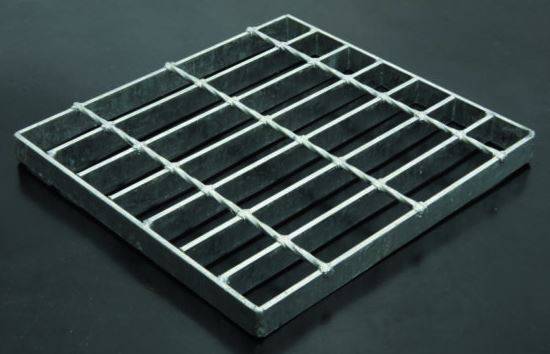

General utility steel grating comprising a series of parallel, flat, load bearing bars at equal spacing.

Jump to:
BIM object icon
+44 (0)1642 245151 Website

Application

  • Walkways below head height, where people cannot pass underneath.
  • Shelving.
  • Fencing.

Please note that a full assessment should be carried out to determine which ball proof requirement needs to be applied to a grating - consult manufacturer for details.

Description

Our Utility grating product is the most efficient and sustainable steel flooring solution available that is fit for purpose, and uses the least amount of steel. This flooring will suit most applications that do not require a ball proof product; where there is no risk of people passing underneath and the walkway is not used as ‘access to machinery’.


This product has been designed in line with British Standard BS4592-1:2006 and European Standard BS EN ISO 14122-2-2016.


Features and benefits:

  • Grade S275JR steel offers high strength.
  • Maintains shape during fabrication.
  • Provides an economical solution.
  • Coordinates with associated access products, including; handrails, stanchions, gates, ladders and stair treads – consult manufacturer for details.
  • Manufactured in accordance with BS 4592-0: 2006 +A1: 2012 and BS EN ISO 14122-2: 2016.

General information

Color

Silver

Finish

Galvanized

Unfinished

Material

Steel

Guidance for specification option:

Grade S275JR.

Shape

Rectangle

Length

Bespoke

Width

Bespoke

Height

Bespoke

Uniclass

Pr_25_96_30_31 Footway gratingsPrimary
Pr_25_30_30_18 Carbon steel open bar metal gratings

CAWS

L30/460 Walkways

Q10/312 Footway gratings

L30/45 Ramps/ walkways

Product range

Steel / Gratings

Specification data - Footway gratings

Material

Steel.

Guidance for specification option:

Grade S275JR.

Finish

Galvanized.

Self-colour.

Guidance for specification option:

Consult manufacturer for details.

Accessories

Not required.

Clip on bars.

Guidance for specification option:

Clips to the top of the steel flooring bars and provides an instant anti-slip surface – no drilling, bolting or welding required. Supplied red for 3 mm gratings, orange for 5 mm gratings.

Deep saddle clip with self-tapping bolt.

Guidance for specification option:

For areas subject to vibration or lateral forces.

Panel jointing clip.

Guidance for specification option:

Can be used to allow adjacent panels to deflect, under load, as one entity.

Type 5 fixing clip.

Guidance for specification option:

Can be used to secure the steel grating to the supporting steel work.

Welded pad.

Guidance for specification option:

For areas subject to vibration or lateral forces.

Product Reference

Utility Grating

Bearing bar depth

25 mm.

30 mm.

35 mm.

40 mm.

45 mm.

Guidance for specification option:

For 5 mm apertures only.

Show more

Fabrication

Complex grating.

Cut and bind.

Simple grating.

Manufacturer guidance

Consult manufacturer for further details on fabrication size.

Surface

Machine serrated.

Guidance for specification option:

Transverse bar below the surface. Provides enhanced slip resistant. Only available with cross bars at 100 mm centres.

Plain.

Guidance for specification option:

Slip resistant.

Rolled serrated.

Guidance for specification option:

Enhanced slip resistant.

LoadBearingCapacity

5.0 kN/m².

7.5 kN/m².

Sustainability data

Contains Red List materials

No

Country of product manufacture

United Kingdom

Recyclability

Recyclable

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

100 %
