Uptown Bath Shower Mixer Tap

Aqualisa Products Ltd Third party certifications:
  • QA Certificate

    QA Certificate

    Certificate type

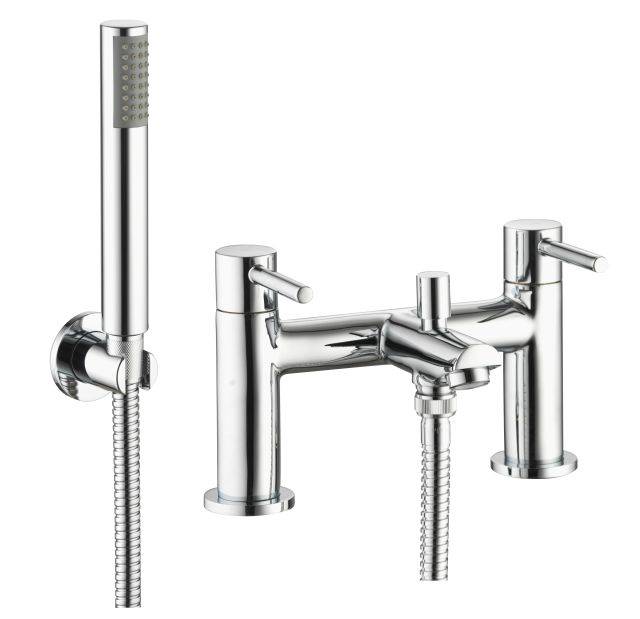

Aqualisa Uptown chrome bath shower mixer tap.

Jump to:
+44 (0)1959 560000 Website

Application

Suitable for use in family showering areas, both low and high pressure systems.

Description

A contemporary bath shower mixer tap to complement every bathroom configuration. The modern styling and bright chrome finish will suit a variety of installation needs. With outstanding flow rates for both bath fill and hand shower, this quality tested brassware product can be fitted with all UK approved plumbing systems and carries up to five years guarantee against any manufacturing defect with full spares availability.


Features and benefits:

  • Metal backnuts.
  • Supplied with slim, single mode hand shower.
  • 1.25 m hose and wall mounted handset holder.
  • Polished chrome finish.
  • Brass body with chrome handles.
  • Diverter which changes water flow from tap to shower handset.
  • Suitable for high and low pressure water systems.
  • Pin lever.
  • Aqualisa branded.
  • WRAS approved
  • Five year guarantee.


Water system compatibility:

  • Gravity.
  • Boosted gravity.
  • Combi.
  • Balanced high pressure water systems.

General information

Color

Silver

Finish

Gloss

Chrome

Material

Brass

Zinc

Plastic

Shape

Circle

Length

131 mm

Width

231 mm

Height

143 mm

WarrantyDescription

Five year

Valve. Registration required.

Two year

Kit guarantee.

Uniclass

Pr_40_20_87_07 Bath mixer taps with shower hose and hand spraysPrimary

CAWS

N13/35 Baths

N13/355 Baths

Product range

Taps

Specification data - Bath mixer taps with shower hose and hand sprays

Approval

Water Regulations Advisory Scheme (WRAS) approved.

Form

Bath mixer tap with shower hose and handspray.

  • Shower head: 186 x 28 mm (length x diameter) handset.
  • Handset holder: 55 x 50 mm (diameter x depth).
  • Hose: 1250 mm (length).
  • Mixer tap: 231 x 143 x 131 mm (width x height x depth).


Inlet/ outlet:

  • Inlet connections: 2 x 3/4” BSP.
  • Inlet supply positions: Hot: left; cold: right (as viewed from the front).
  • Outlet hose connection: 1/2" BSP.

Materials

-

Body

Brass, zinc, chrome plated, plastic.

Finish and colour

Chrome plated.

Flow rate (maximum)

At 5 bar: 44.4 L/ min (full hot), 44.93 L/ min (cold), 72.27 L/ min (mixed), 36.64 L/ min.

Water supply temperature (maximum)

5–65°C.

Pressure

0.2–5 bar (static).

Shower head

186 x 28 mm.

HoseLength

1250 mm.

Mixer tap

231 x 131 x 143 mm.

InletConnectionSize

2 x 3/4” BSP.

Supply positions: Hot/left, cold/right (as viewed from the front).

OutletConnectionSize

1/2" BSP.

HoseConnectionSize

1/2" BSP.

Weight

2.16 kg.

  • Total package weight: 0.346 kg.
  • Complete packaged weight: 2.51 kg.

MountingType

Deck mounted with brass wall mounted handset holder.

Handle type

Lever, dual control.

Tap holes

Two holes.

Environmental information

Contains Red List materials

No

Country of material origin

China

Country of product manufacture

China

Recycled content

Packaging recycled content:

  • Pre-consumer: 2%.
  • Post-consumer: 96%.

-

Literature

Aqualisa Taps Brochure

Aqualisa Taps Brochure

CB.BSMT.20_Spec Sheet

CB.BSMT.20_Spec Sheet

CB.BSMT.20 Installation and User Guide

CB.BSMT.20 Installation and User Guide

Third party certifications

  • BEAB Approval Mark
